Contacteur manométrique PT/5 - PT/12

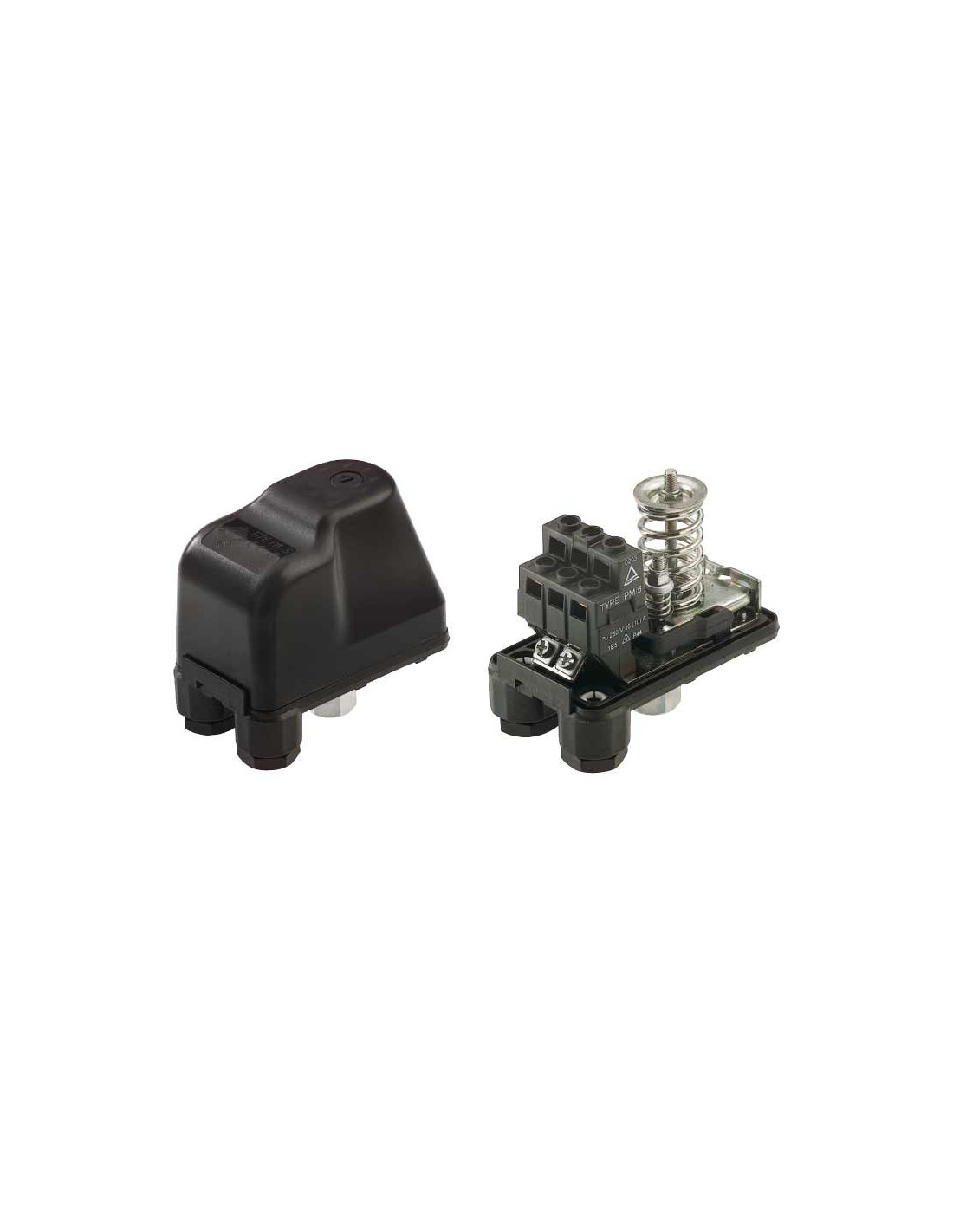

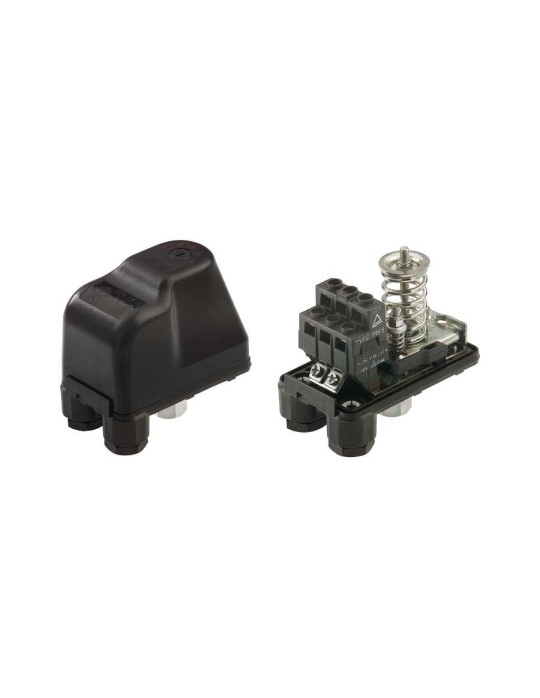

Three-phase pressure switch PT/5 - PT/12

001222
Delivery 2 to 3 days
€31.67

€31.67 tax excl.

rating Read the 5 reviews
Average rating: 9.6/10 Number of reviews: 5

Pressure switch for water network, three-pole connection (three-phase), two pressure switch models, 1 to 5 bar (PT/5) and 3 to 12 bar (PT/12). 1/4" female threaded connection.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Three-phase pressure switch PT/5 - PT/12
001222 PT/5
€31.67
Available
Three-phase pressure switch PT/5 - PT/12
001223 PT/12
€33.25
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Pressure switch for water circuits, used in booster systems.
- The switch automatically starts and stops the pump, according to the set pressure values.
- Terminals with M4 screws.
- NBR rubber diaphragm with fabric reinforcement (food grade for PT/5).
- Hydraulic connection ¼".
- Standard protection rating IP 44
- Max. ambient temperature 55°C
- Anti-pull-out cable gland
- A.C.S. compliant.

ModelPT/5
PT/12
Reference 001222 001223
Operating limit (bar)
 1 - 5 3 - 12
Factory setting (bar) 1,4 - 2,8 5,0 - 7,0
Min. differential (bar) 0.6 1.5
Max. differential (bar) 2.3 5.0
Rated current (A) 16 (10)
Rated voltage (V) 500
