Optimatic specifications:
- Protection against water hammer.
- Compact, reduced dimensions.
- Elimination of protection devices (level switch).
- Avoids oversizing the pump, as it makes full use of the flow rate-pressure curve.
- Built-in dry-run safety system (lack of water at the suction).
- Automatic reset after a power cut.
- Control and signalling panel, POWER (ON) indicator and fault (FAILURE) indicator.
- Manual push button for start-up (RESET).
Flowvarem specifications:
- Heavy-gauge steel construction, epoxy painted.
- Two-port diaphragm design.
- 1" male and 1" female connection.
- Maximum operating temperature: 50°C.
- Maximum working pressure: 10 bar.
- Pre-charge at 1.5 bar.

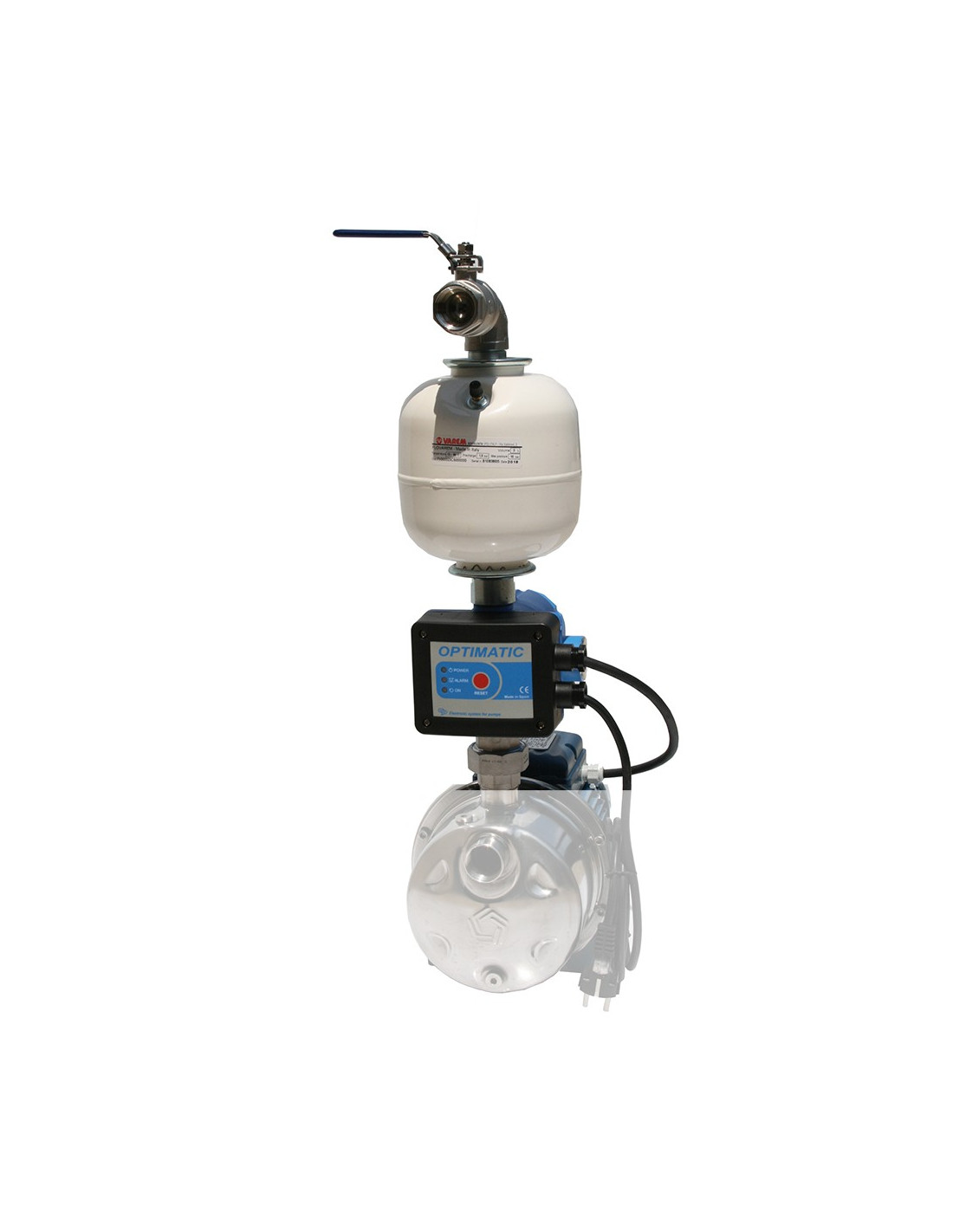

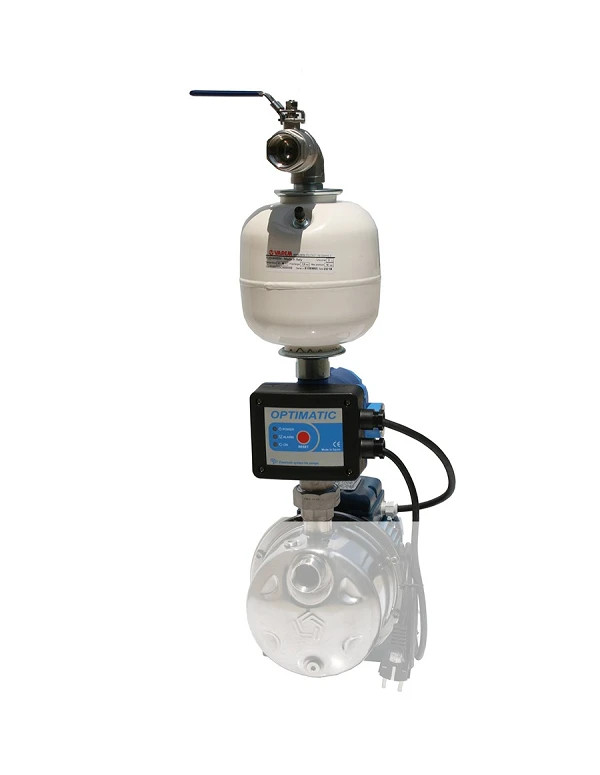

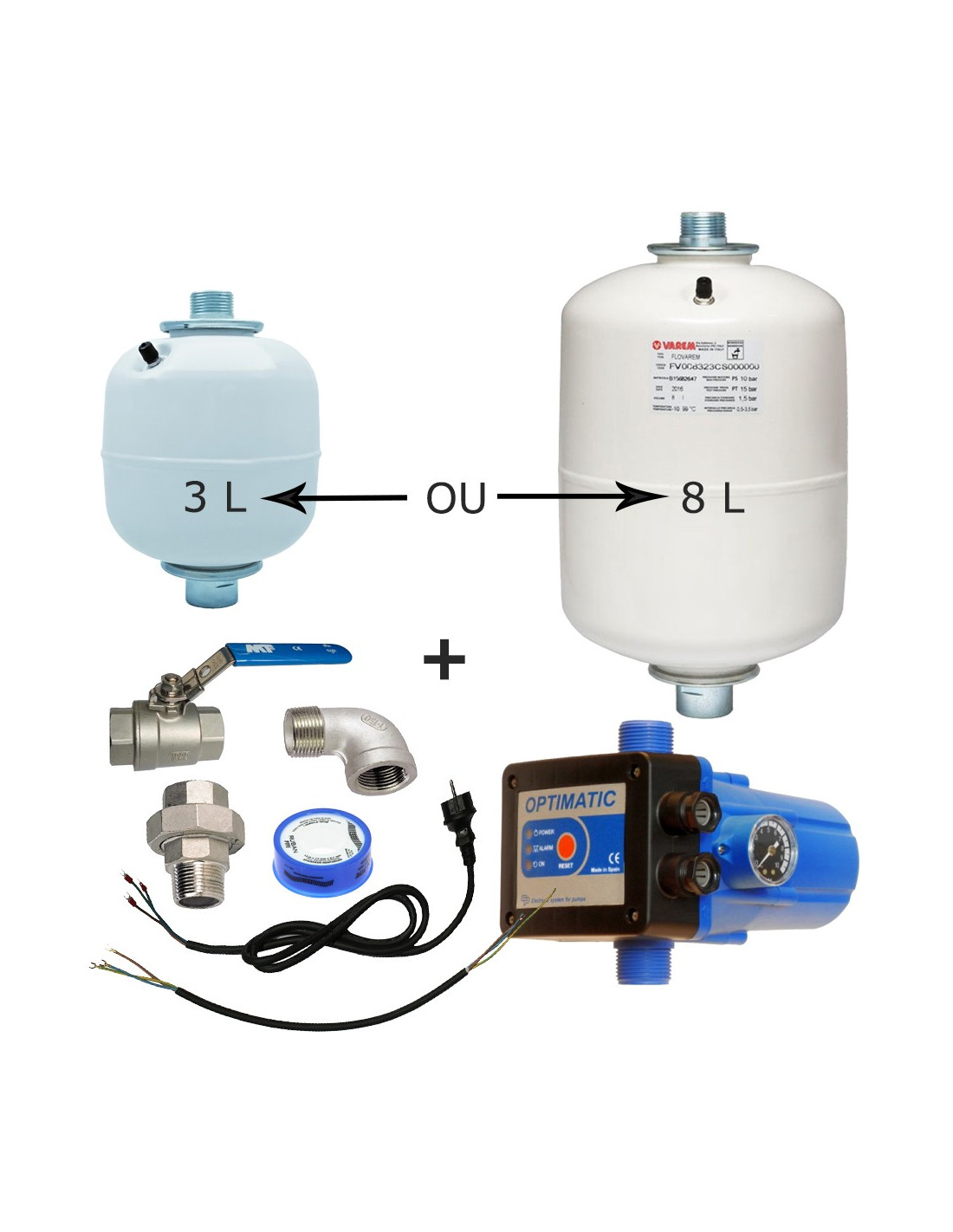

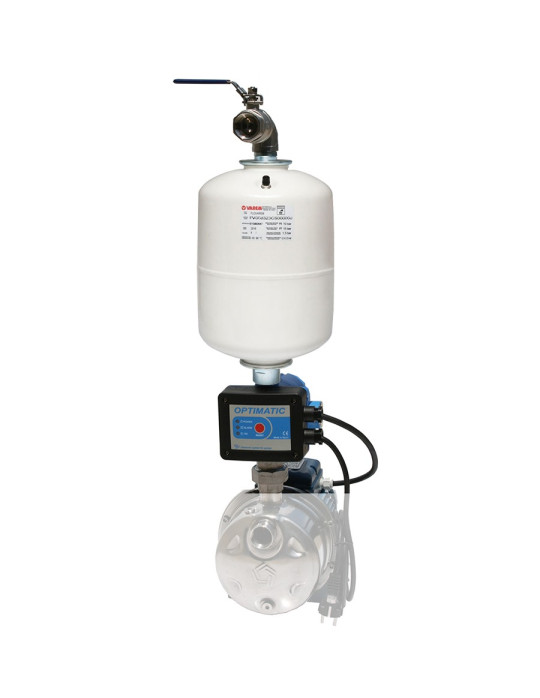

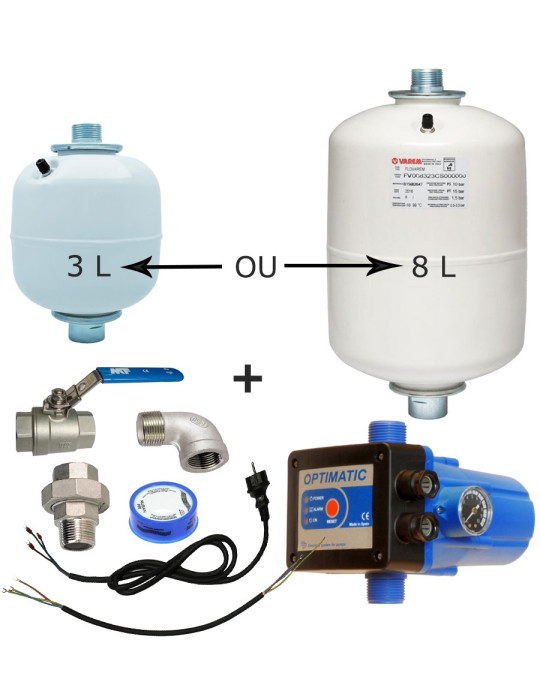

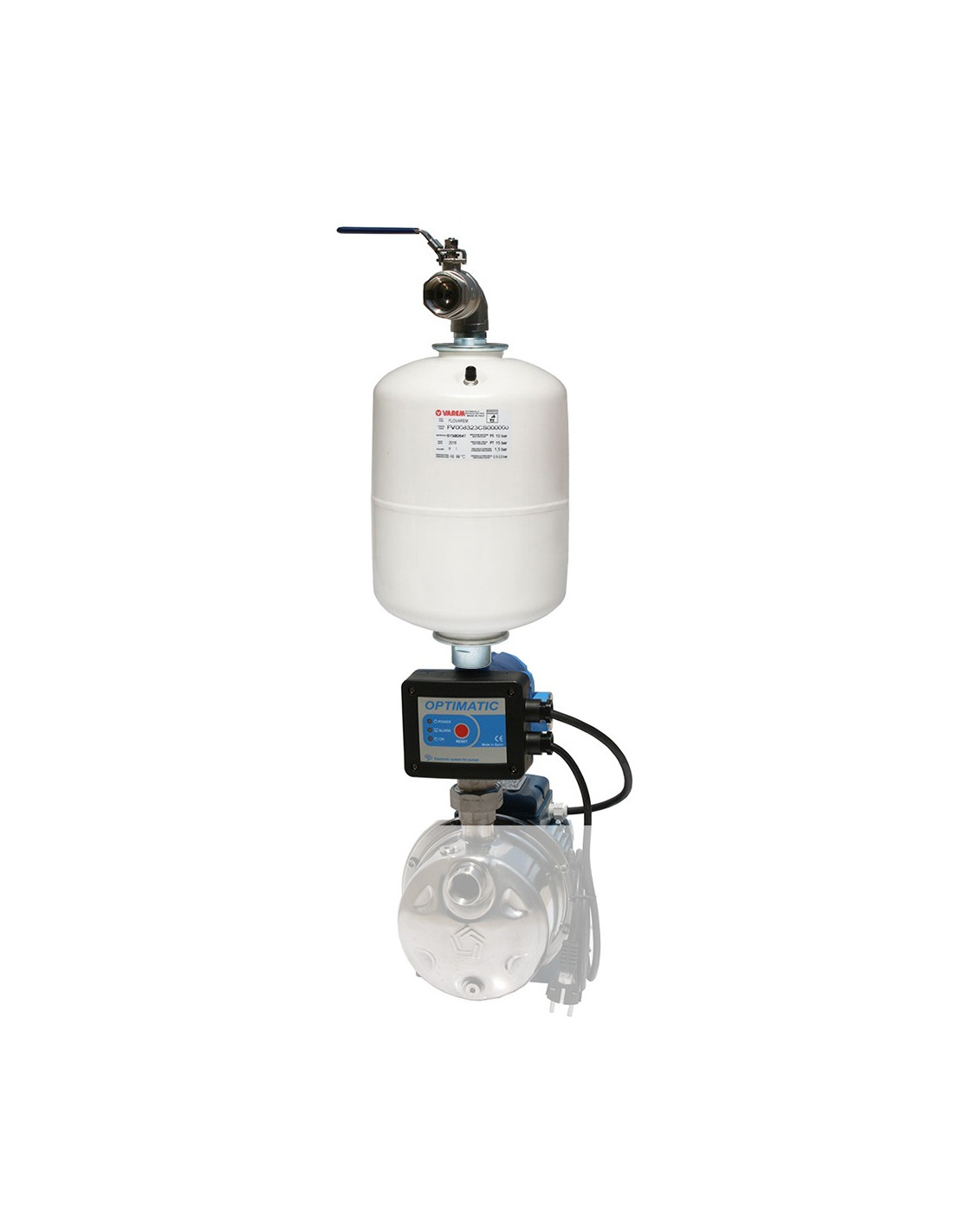

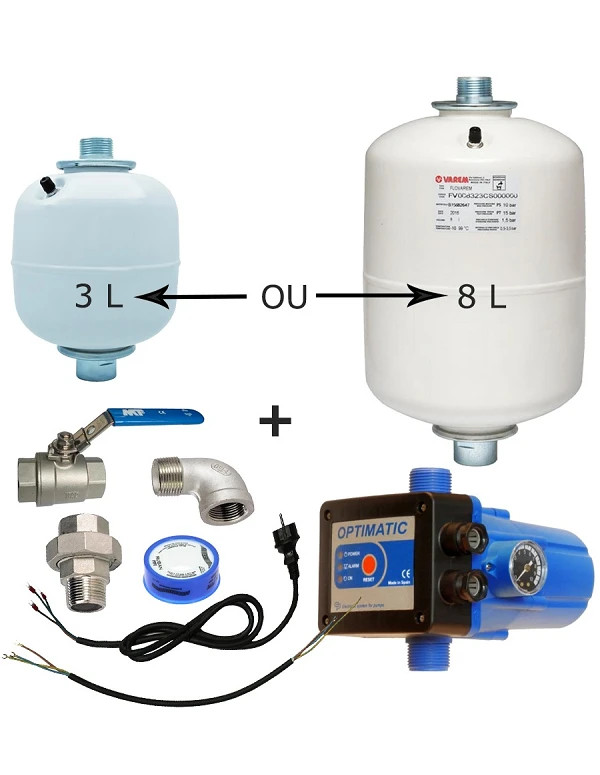

The set includes:
- 1 Optimatic RM controller for single-phase surface and submersible pump, power 1.50 Kw max.
- 1 Varem Flovarem 3 or 8 L in-line bladder tank.
- 1 M/F threaded union fitting 1" 316 stainless steel.
- 1 90° M/F threaded elbow 1" 316 stainless steel.
- 1 quarter-turn valve F/F threaded 316 stainless steel.
- 1 electric cable 3G1.5 mm², length 1.5 m, with plug + 1 Optimatic-pump electric connecting cable, length 0.5 m.
- 1 roll of Teflon tape.
| Model | OPTIMATIC VL 3 | OPTIMATIC VL 8 |
|---|---|---|
| Reference | 009205 | 009206 |
| Max. motor power (Kw) | 1.5 | |
| Power supply (V) | 230 / single-phase | |
| Start-up pressure (bar) | 1.5 to 3.0 | |
| Min. stop pressure (bar) | 1.5 above the start-up pressure | |
| Max pressure (bar) | 10 | |
| Max current (A) | 8 | |
| Max flow rate (m3/h) | 8 | |
| Check valve | Integrated | |
| Inlet / outlet connection | 1” male (26 x 34) | |
| Pressure gauge (bar) | 0 to 10 | |
| Max. liquid temperature (°C) | + 50 | |
| Weight (Kg) | 3.6 | 4.6 |
