Lifting station with grinder pump Zenit GR Blue PRO

Uses:
- Station for placing on the ground or burying.
- Waste water, loaded water, black water from a house.
- Waste and loaded water from a small building of up to 20 people.


GR BluePro pump specifications:
- Pump body, impeller and base in cast iron.
- Chrome-plated steel grinder system.
- Aluminium alloy handle.
- Double mechanical seal in oil bath, in silicon carbide.
- Submersible motor, dry asynchronous motor for continuous duty, perfectly watertight encapsulation.
- 2-year warranty.


Composition of the lifting station:

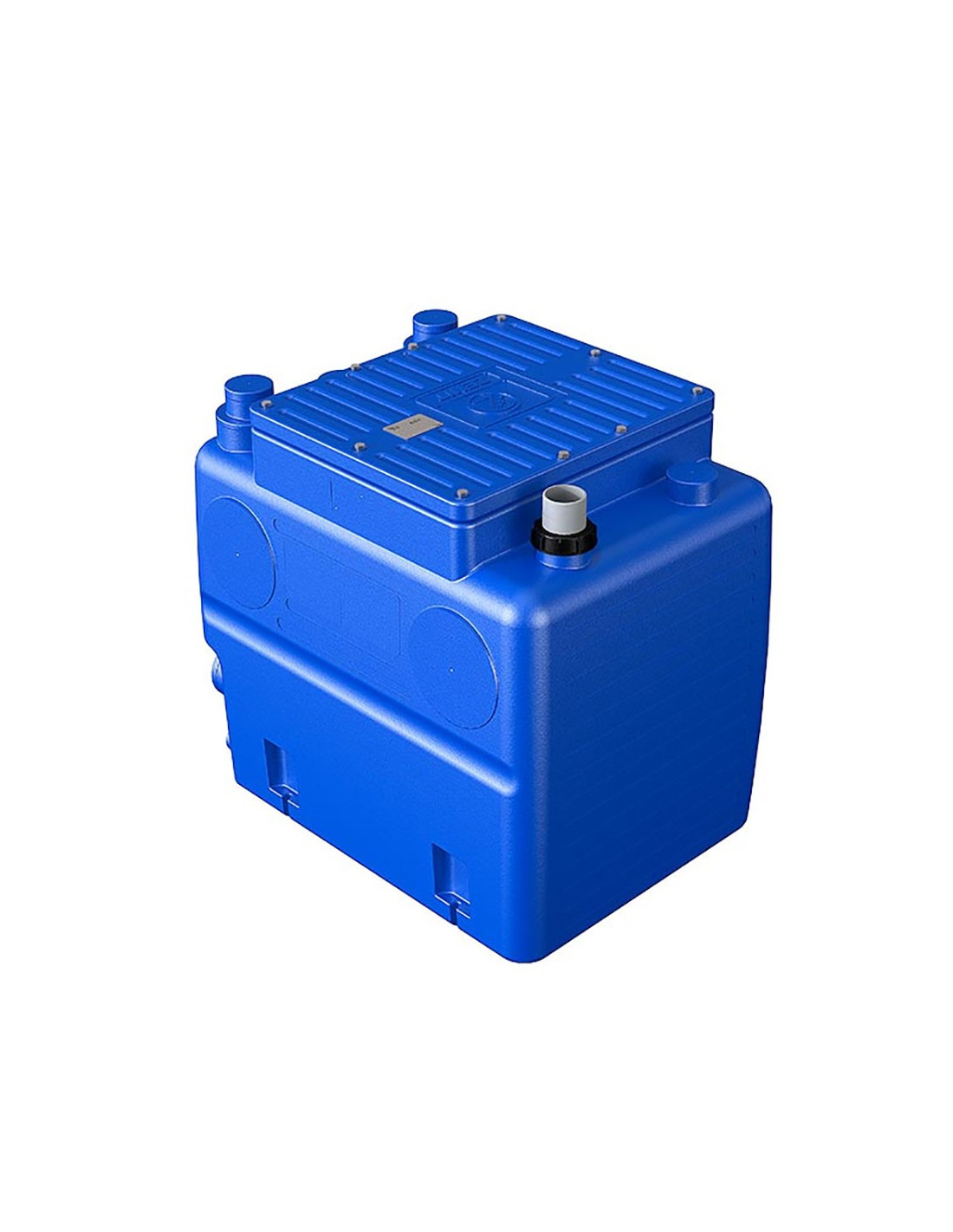

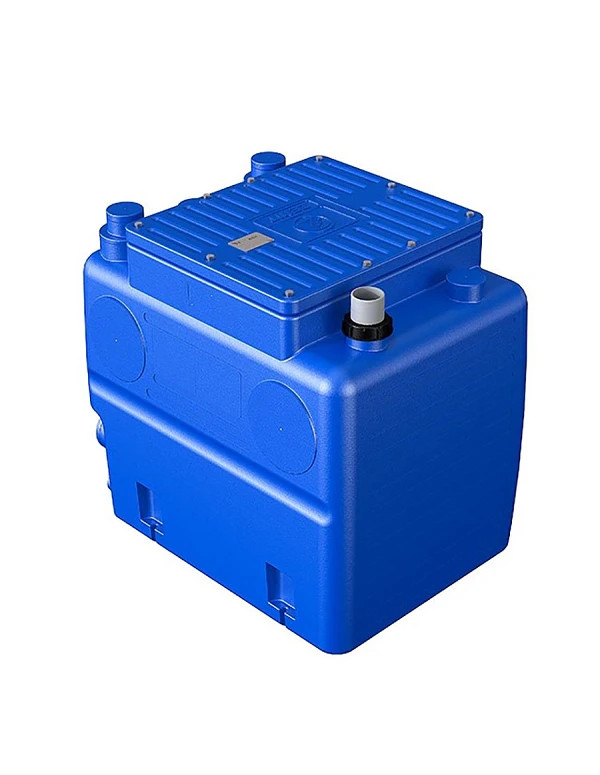

- 1 buriable tank, made of high-density polyethylene, with watertight cover locked by stainless steel TH screws, perfect sealing, volume 250 litres.

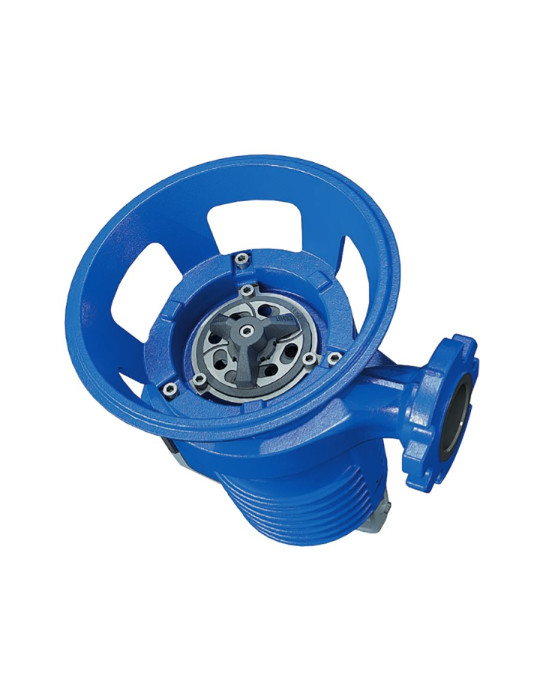

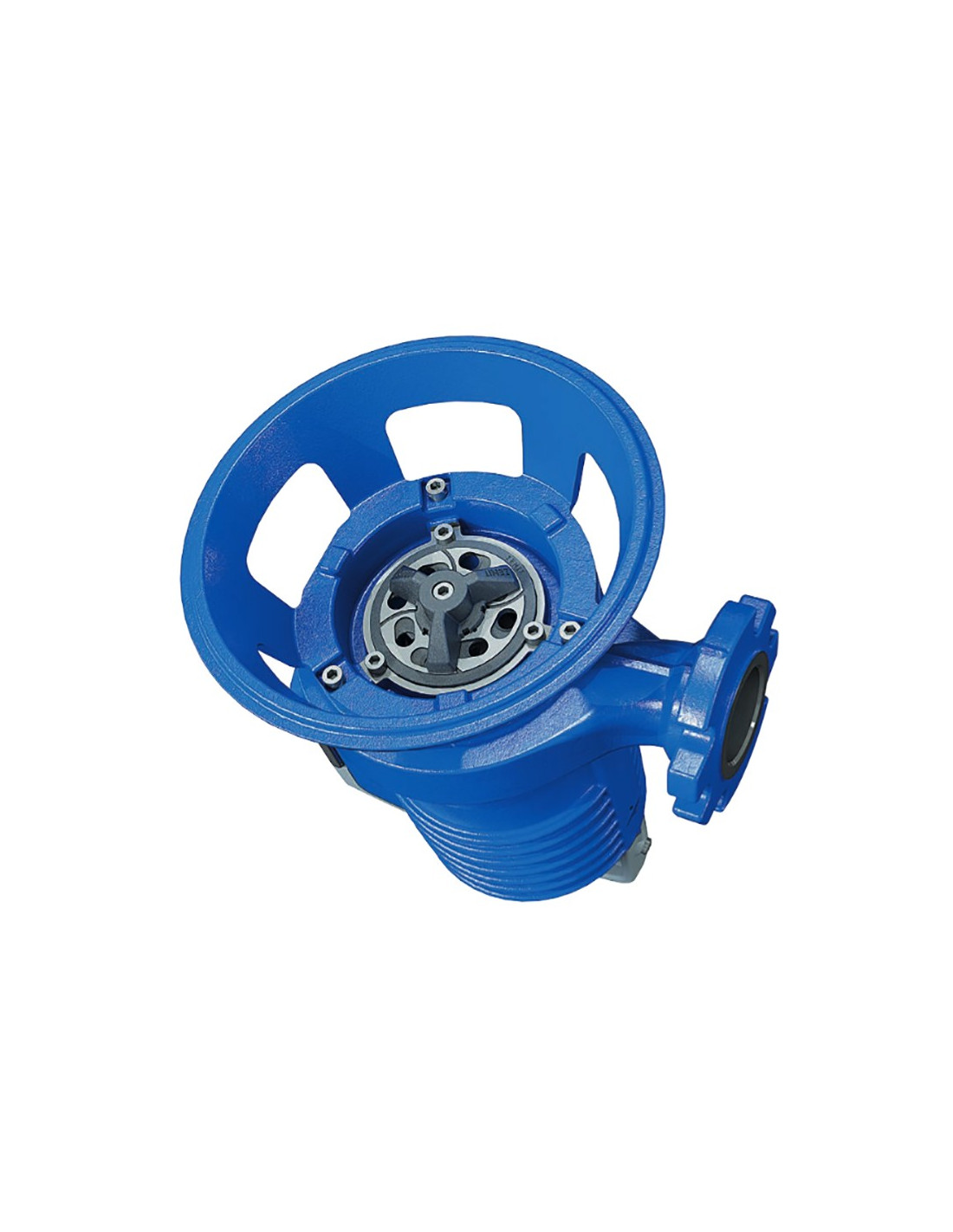

- 1 cast iron single-phase lift pump with grinder impeller, ZENIT GR BluePRO 150 or 200, with built-in float switch.
- 1 cast iron base foot + stainless steel guide bars.
- 1 internal pipework.
- 1 cast iron ball check valve, special for loaded water.
- 1 PVC wall pass-through Ø 50 x 1“1/2.
- 4 cable glands provided.
- 1 lip seal for fitting the inlet pipe in Ø 100.
- 1 wall sleeve Ø 50 for ventilation.
- 1 230V male plug.
- The set is assembled and delivered ready to use.
- Lifting of waste water for a home, up to 20 people.

Dimensions:
