DRAIN'UP loaded water lifting station 2 pumps

220181
Delivery 5 to 8 days
$3,780.18

$3,780.18 tax excl.

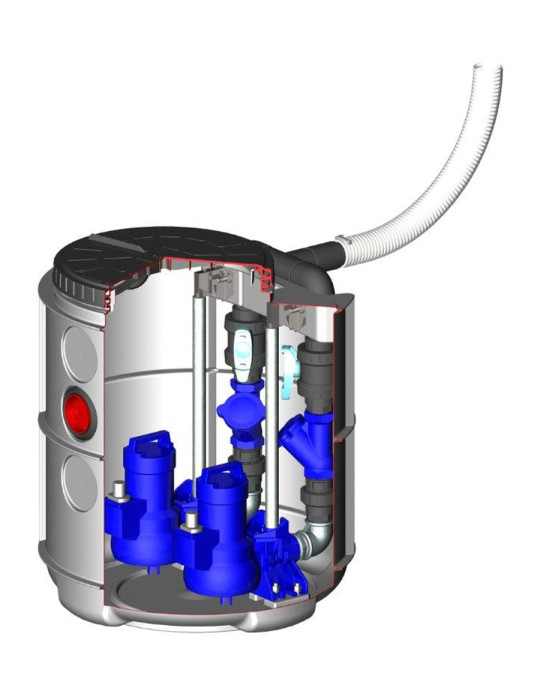

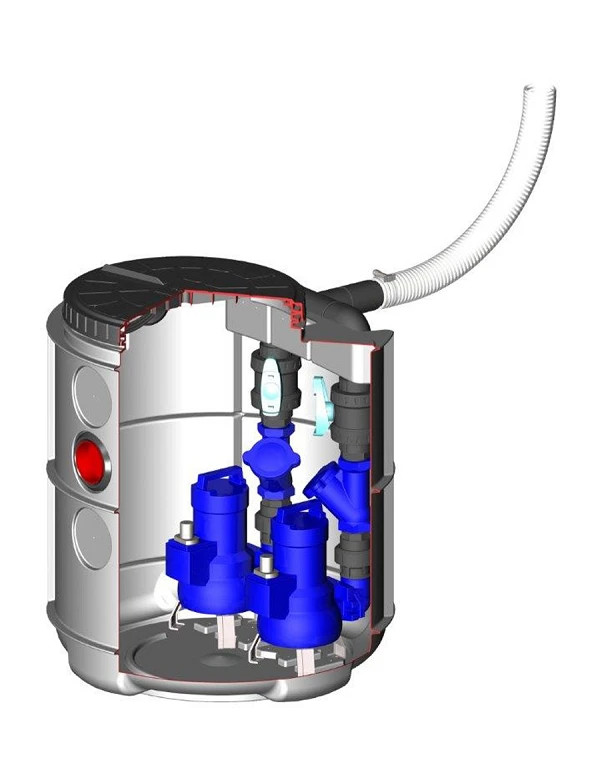

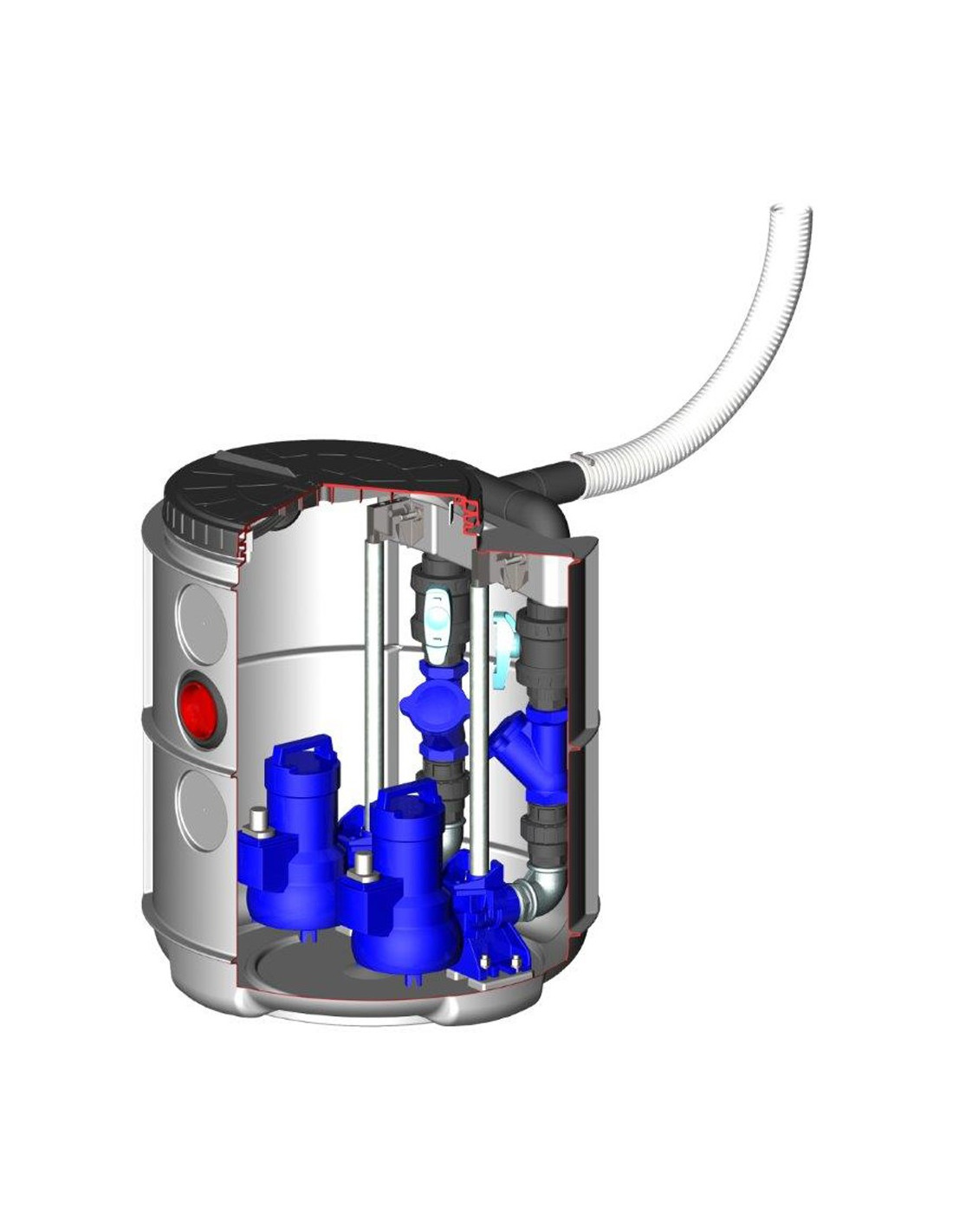

The Drain'up D42UP and D42UGP lifting stations are equipped with KSB Ama Porter 501 pumps. Polyethylene tank with screw-on lids, pumps mounted on tripods or on base stands with guide rails.

Modèles

Attributs
Image Ref. Modèles Unit price Avail. Buy
DRAIN'UP loaded water lifting station 2 pumps
220181 D42UP
$3,780.18
Available
DRAIN'UP loaded water lifting station 2 pumps
220182 D42UGP
$4,301.58
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

The twin-pump lifting stations D42UP and D42UGP are supplied with their electrical panel. Pump automation is programmed at the factory. The pumps operate alternately. They start and stop according to the level of effluent in the station. If the level is too high, both pumps start simultaneously


Composition:
- 1 500 litre polyethylene tank with screw-on lid and lock.
- 2 single-phase lift pumps KSB Ama Porter 501.
- 2 delivery pipes 2", with check valves, valves and threaded fittings.
- 2 base feet and two guide bars, (model D42UGP).
- 1 control and protection panel for two lift pumps.
- 3 float switches "special loaded water".
- 1 cable gland for the passage of the pump and regulator cable.
- 1 DN100 inlet connection.
- 1 DN50 connection for ventilation.
- 2 cable entries.

ModelD42UPD42UGP
Reference 220181 220182
Power (Kw) 0.75
Flow rate (m3/h) up to 40
Max. head (m) 12
Use (m) 4 to 9
Pump installation
 On tripod Base foot
+ guide bar
Lifting station installation above ground/buried
inlet invert (cm)
 0 to - 35
Voltage (v) Single-phase 230
Connection
discharge (mm)
 Ø inner 50 - Ø outer 63
Connection
inlet		 DN100

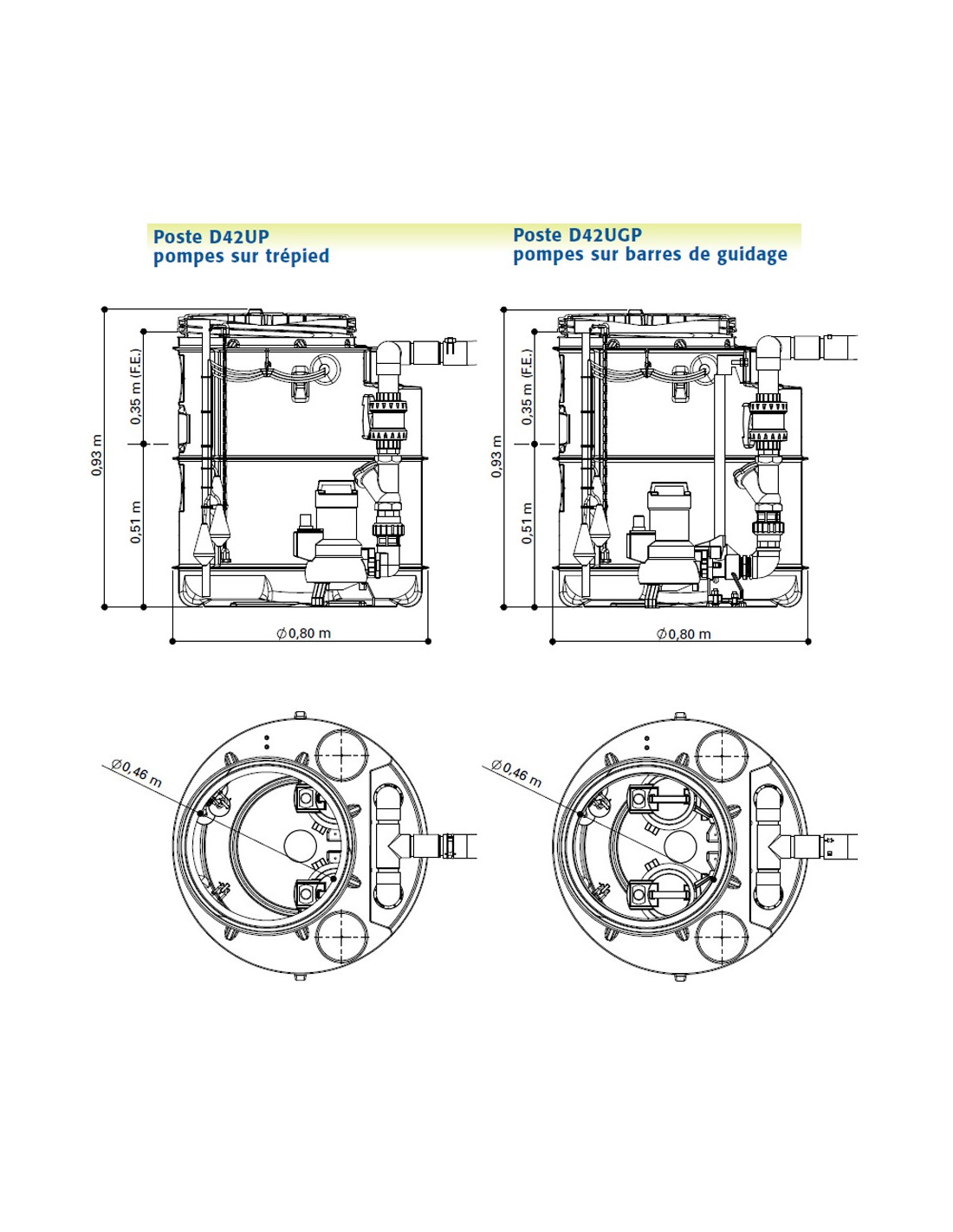

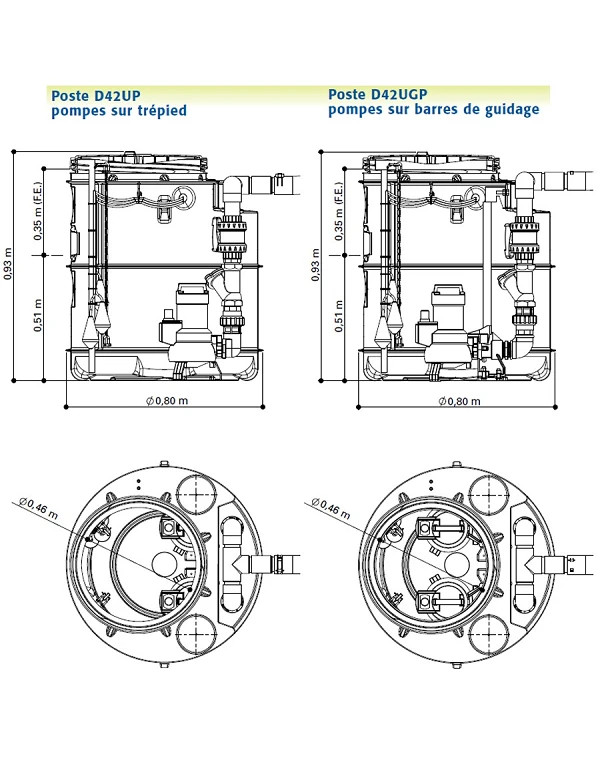

Dimensions
(mm)		 Ø 80 x H 93
Weight (Kg) 88 118

Use:


DRAIN'UP loaded water lifting station 2 pumps
