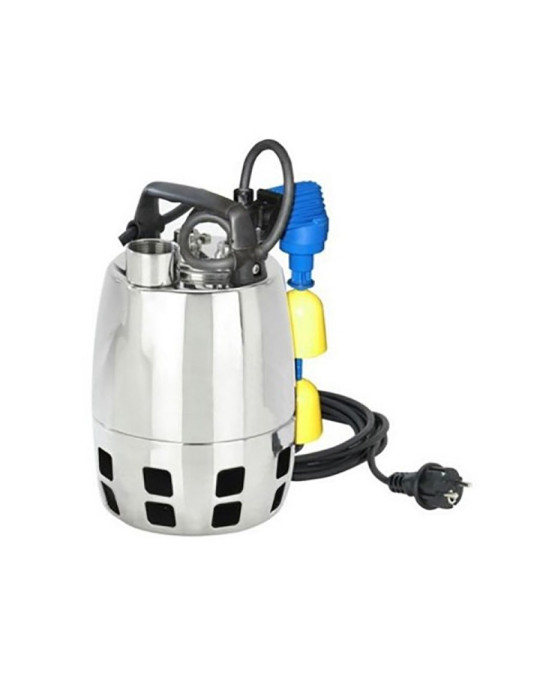

Pompe de drainage inox eau propre ou chargée GXVM GF (230V)

CALPEDA GXVM GF sewage pump for clean water or waste water 230V

205162
Delivery 2 to 4 days
€356.67

€356.67 tax excl.

rating Read the review
Average rating: 10/10 Number of reviews: 1

All-304 stainless steel submersible drainage pump, Vortex impeller, with compact float, automatic start and stop, single-phase 230 volt model, available in 0.25, 0.37 and 0.45 Kw.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
CALPEDA GXVM GF sewage pump for clean water or waste water 230V
205162 0.25 Kw
€356.67
Available
CALPEDA GXVM GF sewage pump for clean water or waste water 230V
205163 0.37 Kw
€405.00
Available
CALPEDA GXVM GF sewage pump for clean water or waste water 230V
205164 0.45 Kw
€425.00
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Compact size and impressive specifications, for a wide variety of applications, head up to 10 m for a flow rate of up to 220 litres/minute.

Uses:
- For draining runoff water.
- For gravity-fed watering.

Limits of use:
- Liquid temperature up to 50° C.
- Max. immersion depth: 5 m.
- Minimum level for manual draining 30 mm.
- Continuous duty.

Motor:
- 2-pole induction motor, 50 Hz (n = 2900 1/min).
- Single-phase 230 V ± 10% (220-240 V)
- With longitudinal switch with magnetic contact.
- Built-in thermal protection and capacitor.
- Motor cooled by the pumped water, circulating between the motor sleeve and the outer sleeve.
- Double shaft seal with oil chamber.
- Insulation class F. - Protection IP X8 (for continuous immersion).
- Dry winding with double moisture-resistant impregnation.
- Manufactured to: EN 60 335-2-41.

Pump:
- Pump body in chrome-nickel stainless steel (AISI 304).
- Suction filter in chrome-nickel stainless steel (AISI 304).
- VORTEX impeller in chrome-nickel stainless steel (AISI 304).
- Motor sleeve in chrome-nickel stainless steel (AISI 304).
- Pump sleeve in chrome-nickel stainless steel (AISI 304).
- Polypropylene handle.
- Shaft (AISI 303).
- Aluminium oxide/hard carbon/NBR mechanical seal.
- Lubricating oil. Seal: food/pharmaceutical grade white oil.

Model GXVM 25-6 GFA
 GXVM 25-8 GFA
 GXVM 25-10 GFA
Reference 205162 205163 205164
Power supply (V) Single-phase 230
Power (Kw) 0.25 0.37 0.45
Current (A) 2.3 3.2 4.5
Capacitor (µF) 8 12.5 16
Max. head (m) 6 8.2 10
Max flow rate (m3/h) 10 12 13
Particle passage (mm) 25
HO5RN-F cable (m) 10
Longitudinal float
 Magnetic
2P+T (CEE) plug WITH
Discharge port Vertical, 1" 1/4 female threaded



Dimensions and weight:

Model Dimensions (mm) Weight
(Kg)
H h (min) h (max)
GXVM 25-6 GFA
 302 60 150 5.3
GXVM 25-8 GFA
 337 60 185 6.5
GXVM 25-10 GFA
 337 60 185 7.0


CALPEDA GXVM GF sewage pump for clean water or waste water 230V



 2-year warranty.





Product Details
Comments
All product reviews comply with DIRECTIVE (EU) 2019/2161
Pompe
rating 10
12/20/2015
Christian
TRES BIEN
