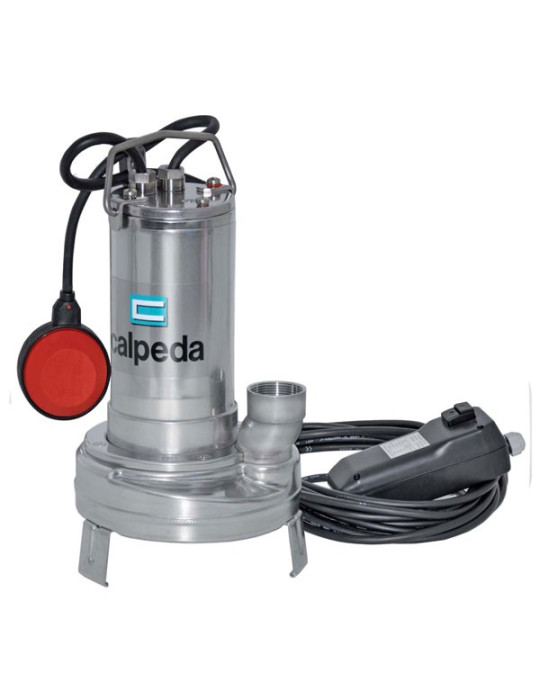

All stainless steel lift pump with vortex impeller GXVM 40 (230V)

Vertical discharge port, facing upwards for installation in a tight space, with no need for an elbow on the pump, vertical outlet; reliable carry handle; all parts in contact with the liquid, inside and outside the pump, are made of chrome-nickel stainless steel. With corrosion-resistant sealing rings and a power cable in a thick sheath. Double seal with interposed oil chamber, built-in dry-running protection.

Uses:
- Lifting waste water and sewage.
- For draining domestic waste water lifting pits.
- For duplex installation in a lifting station.
- For the transfer of waste water in general.

Limits of use:
- For clean water or dirty water with solid particles up to 35 mm in diameter.
- Liquid temperature up to 35° C.
- Max. immersion depth: 5 m.

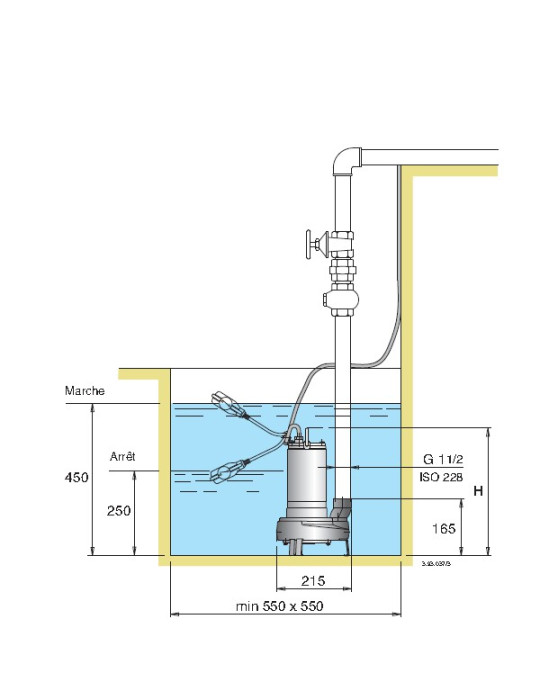

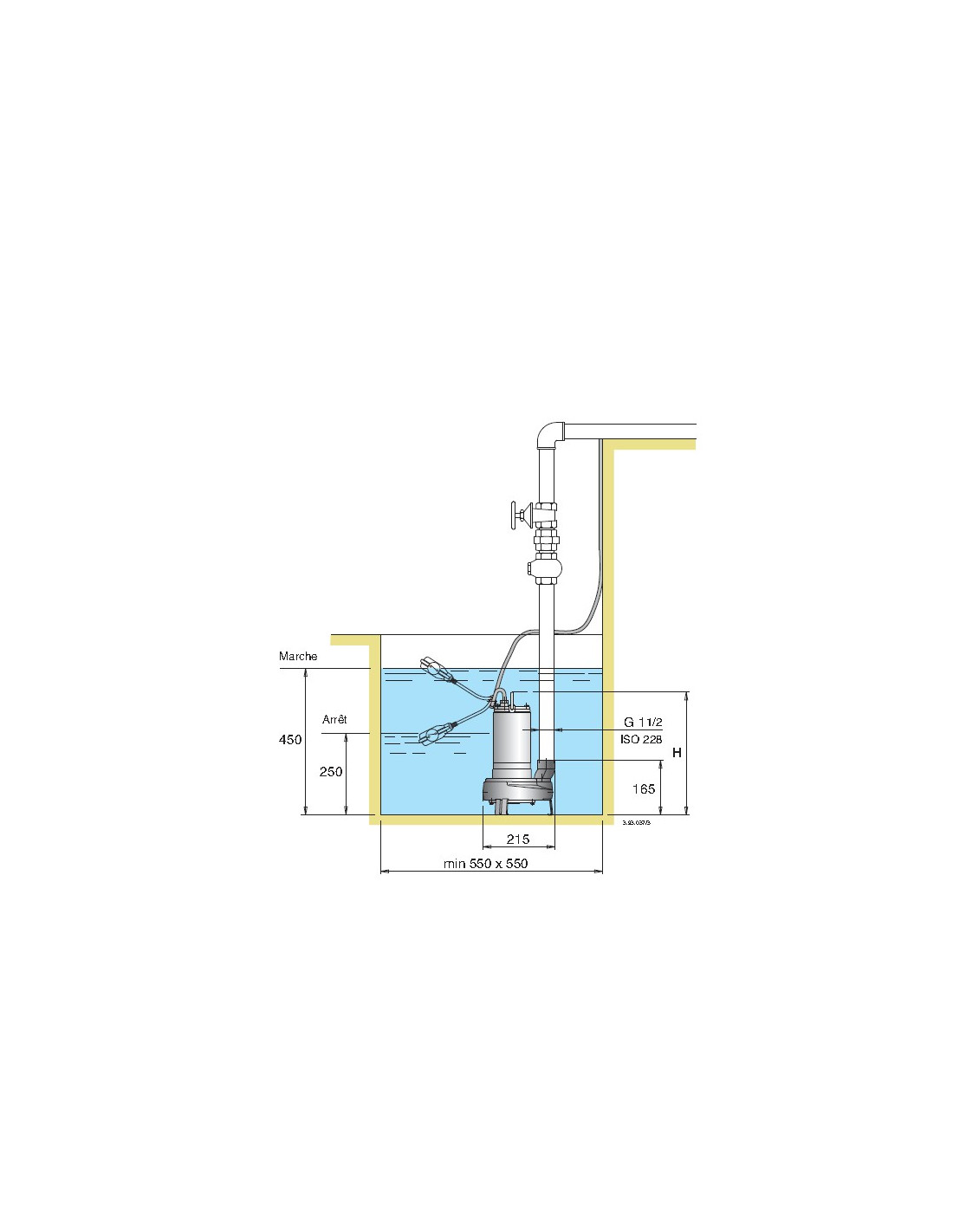

- Automatic drain level 250mm.
- Continuous duty.

Motor:
- Dry motor, 2 poles, 50 Hz (n = 2900 1/min).
- Single-phase 230 V ± 10% (220-240 V)
- With ball float switch and thermal protection. Built-in capacitor.
- Double shaft seal with oil chamber.
- Insulation class F. - Protection IP X8 (for continuous immersion).
- Dry winding with double moisture-resistant impregnation.
- Manufactured to: EN 60 335-2-41.

Pump:
- Pump body in Cr-Ni steel 1.4301 EN 10088 (AISI 304).
- Suction filter in Cr-Ni steel 1.4301 EN 10088 (AISI 304).
- VORTEX impeller in Cr-Ni steel 1.4301 EN 10088 (AISI 304).
- Motor sleeve in Cr-Ni steel 1.4301 EN 10088 (AISI 304).
- Pump sleeve in Cr-Ni steel 1.4301 EN 10088 (AISI 304).
- Cr-Ni steel 1.4305 EN 10088 (AISI 303)
- Handle in chrome-nickel stainless steel (AISI 304).
- Mechanical seal: aluminium oxide/hard carbon/NBR
- Lubricating oil. Seal: food/pharmaceutical grade white oil.

 Customs code: 84137081.
