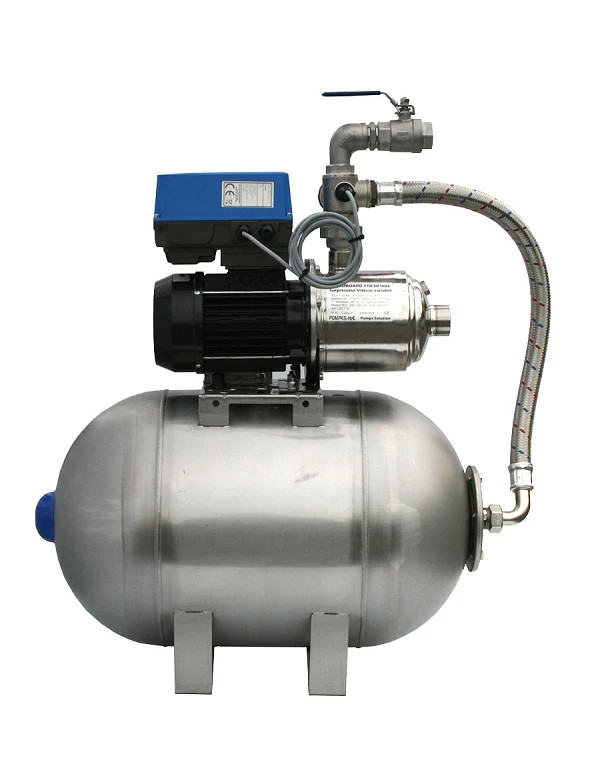

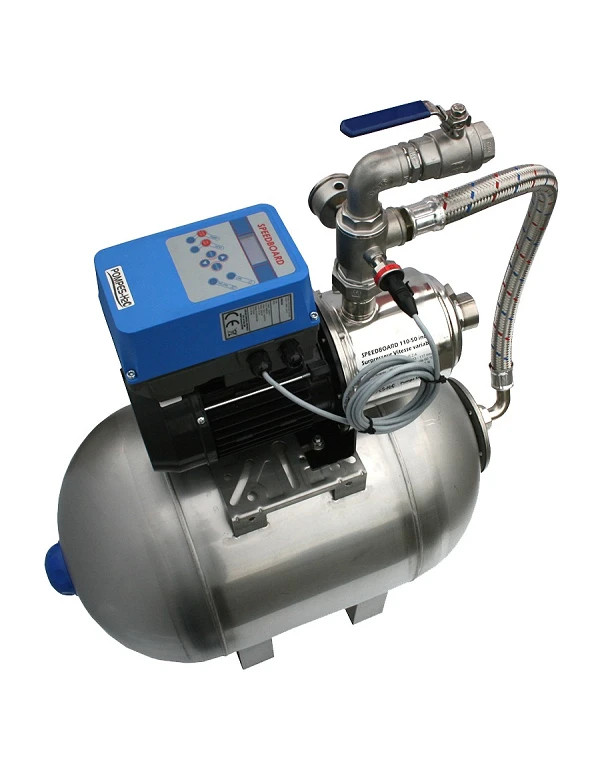

SPEEDBOARD HI multistage variable-speed booster set

600722
Delivery 2 to 4 days
€1,525.00

€1,525.00 tax excl.

All 304 stainless steel booster set, with built-in speed controller, compact assembly, with check valve, fittings and 316 stainless steel valve, IE3 high-efficiency motor, all 304 stainless steel multistage self-priming pump, very quiet, 230 volt single-phase supply, flow rate 0 to 3 m3/h and 0 to 5 m3/h.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
SPEEDBOARD HI multistage variable-speed booster set
600722 0.75 Kw
€1,525.00
Available
SPEEDBOARD HI multistage variable-speed booster set
600662 1.10 Kw
€1,633.33
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Horizontal self-priming multistage pump, entirely in 304 stainless steel, superior efficiency, IE3 motor.
- SPEEDBOARD variable speed drive, for complete control and management of the pump (mounted on the pump).
- 4-20 mA pressure sensor, at the pump discharge.
- VAREM 50 L horizontal bladder tank in 304 stainless steel, PS 10 bar, with pump support.
- 2-piece 316 stainless steel valves, flat handles (mounted at the discharge).
- 316 stainless steel check valve, connections, M/F/F 1", F/F 1/4".
- 2-piece 316 stainless steel union fitting, M/F 1".
- EPDM hose covered with 304 stainless steel braid, length 700 mm.
- Assembled, connected and tested in the workshop.
- 2-year warranty.

 Model SPEEDBOARD 75-50 H inox SPEEDBOARD 110-50 H inox
Reference 600722 600662
Power (Kw) 0.75 1.10
Power supply (V) 230 single-phase
Flow rate (m3/h) 0 to 3 0 to 5
Max pressure (bar) 4.5 4.6
Start/stop preset (bar) 2.9 to 3.5 3.2 - 3.8
Suction port 1" 1"
Discharge port 1" 1"
Maximum liquid temperature (°C) 40 40
Dimensions Length x Width x Height (cm) 78 x 40 x 82 78 x 40 x 82
Weight (Kg) 30.5 31
