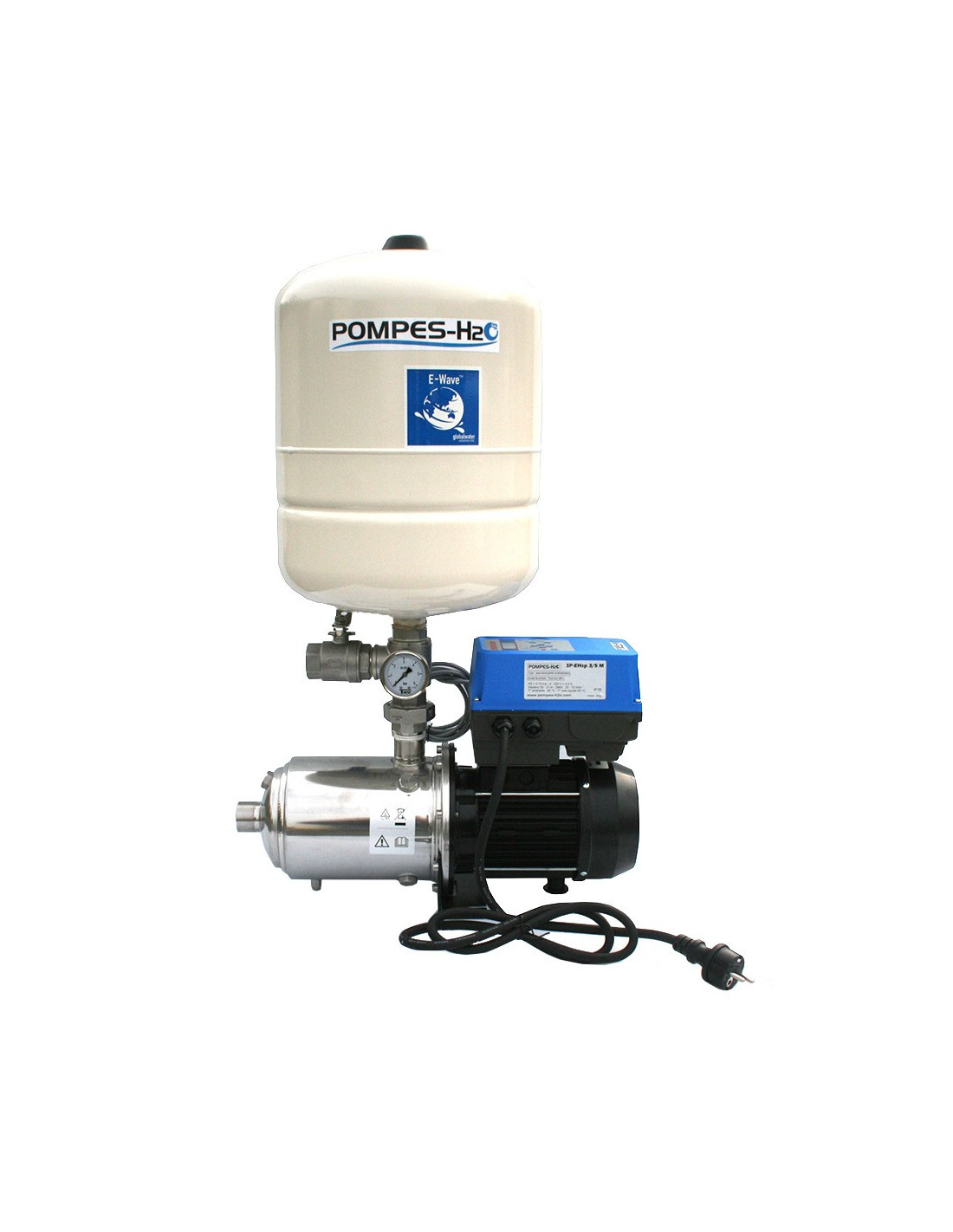

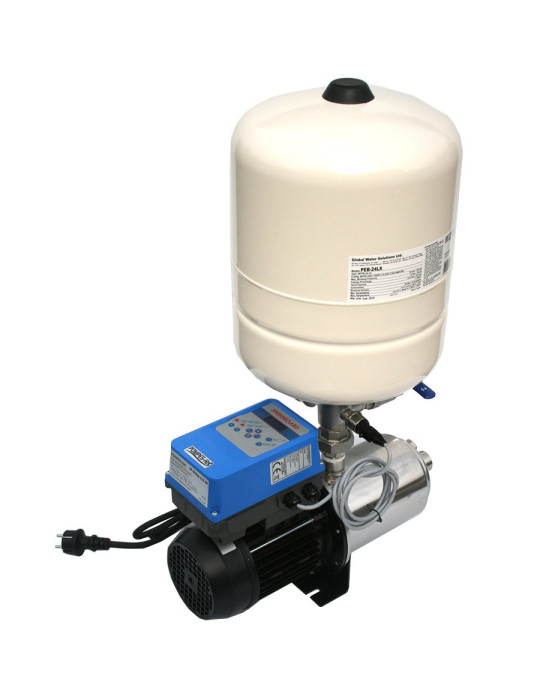

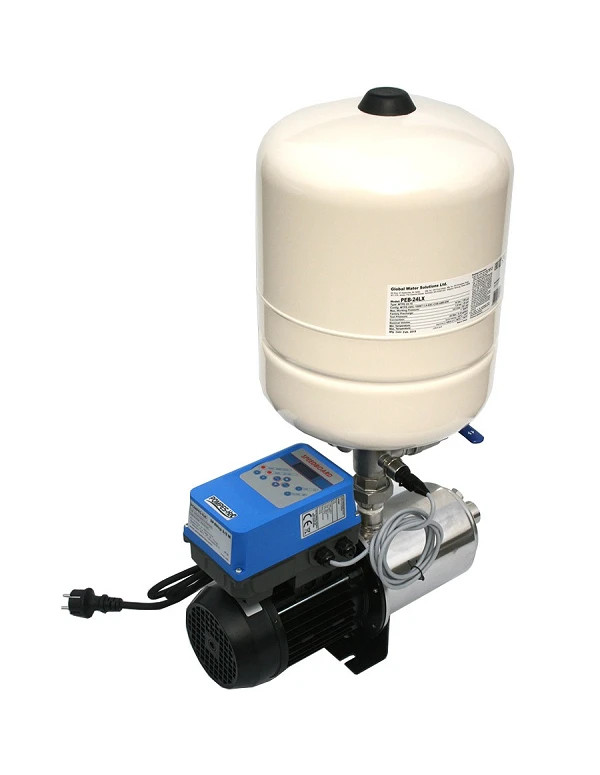

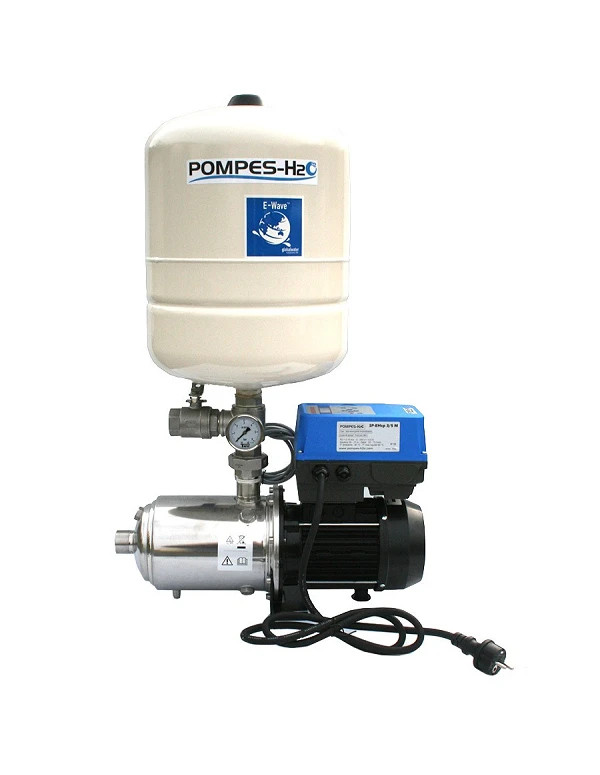

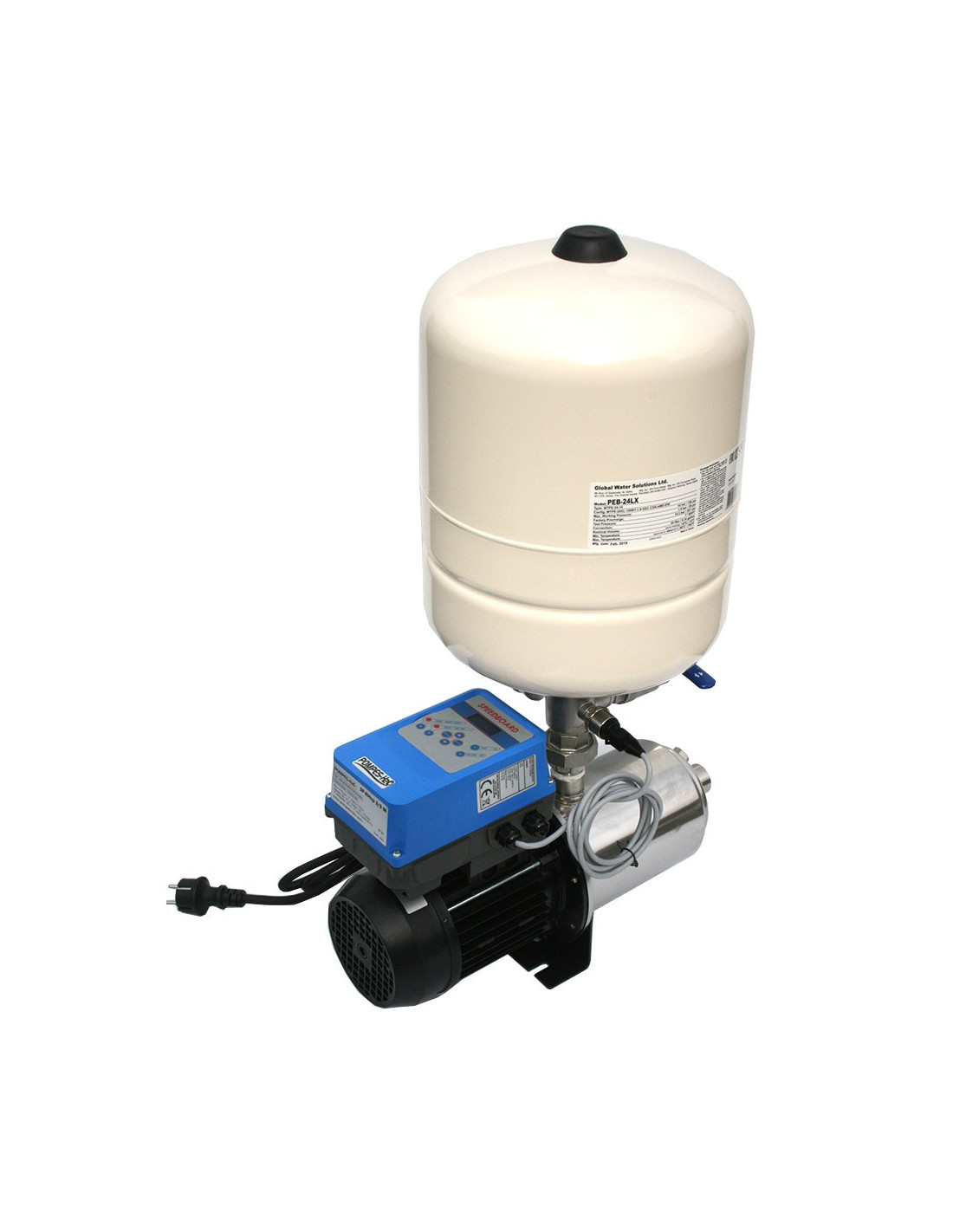

SPEEDBOARD V24 multistage variable speed booster set

600693
Delivery 4 to 6 days
€1,600.00

€1,600.00 tax excl.

All stainless steel variable speed booster set, nominal flow rate 3.0 or 5.0 m3/h, self-priming centrifugal pump with speed controller integrated in the motor, constant pressure, soft start and stop, variable speed according to flow rate, dry running protection.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
SPEEDBOARD V24 multistage variable speed booster set
600693 0.75 Kw
€1,600.00
Available
SPEEDBOARD V24 multistage variable speed booster set
600694 1.10 Kw
€1,687.50
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Horizontal multistage pump, entirely in 304 stainless steel, higher efficiency, IE3 motor.
- SPEEDBOARD variable speed drive, for complete control and management of the pump (mounted on the pump).
- 4-20 mA pressure sensor, at the pump discharge.
- Axial stainless steel pressure gauge 0-6 bar.
- In-line 24 L diaphragm tank PS 10 bar.
- 2-piece 316 stainless steel valves, flat handles.
- 316 stainless steel check valve, with 1" and 1/4" tapping.
- Electric cable set.
- Assembled, connected and tested in the workshop.
- 2-year warranty.

ModelSP
EHX 3-5		SP
EHX 5-5
Reference 600693 600694
Power (Kw) 0.75 1.10
Power supply (V) 230 single-phase
Nominal flow rate (m3/h) 3.0 7.0
Nominal flow rate (m3/h) 3.0 5.0
Max pressure (bar) 5.5 5.8
Start/stop preset (bar) 3.0 - 4.0 3.5 - 4.5
Suction port 1"
Discharge port 1"
Dimensions Length x Width x Height (cm) 48 x 30 x 78
Weight (Kg) 20.5 22.0
