Specifications:

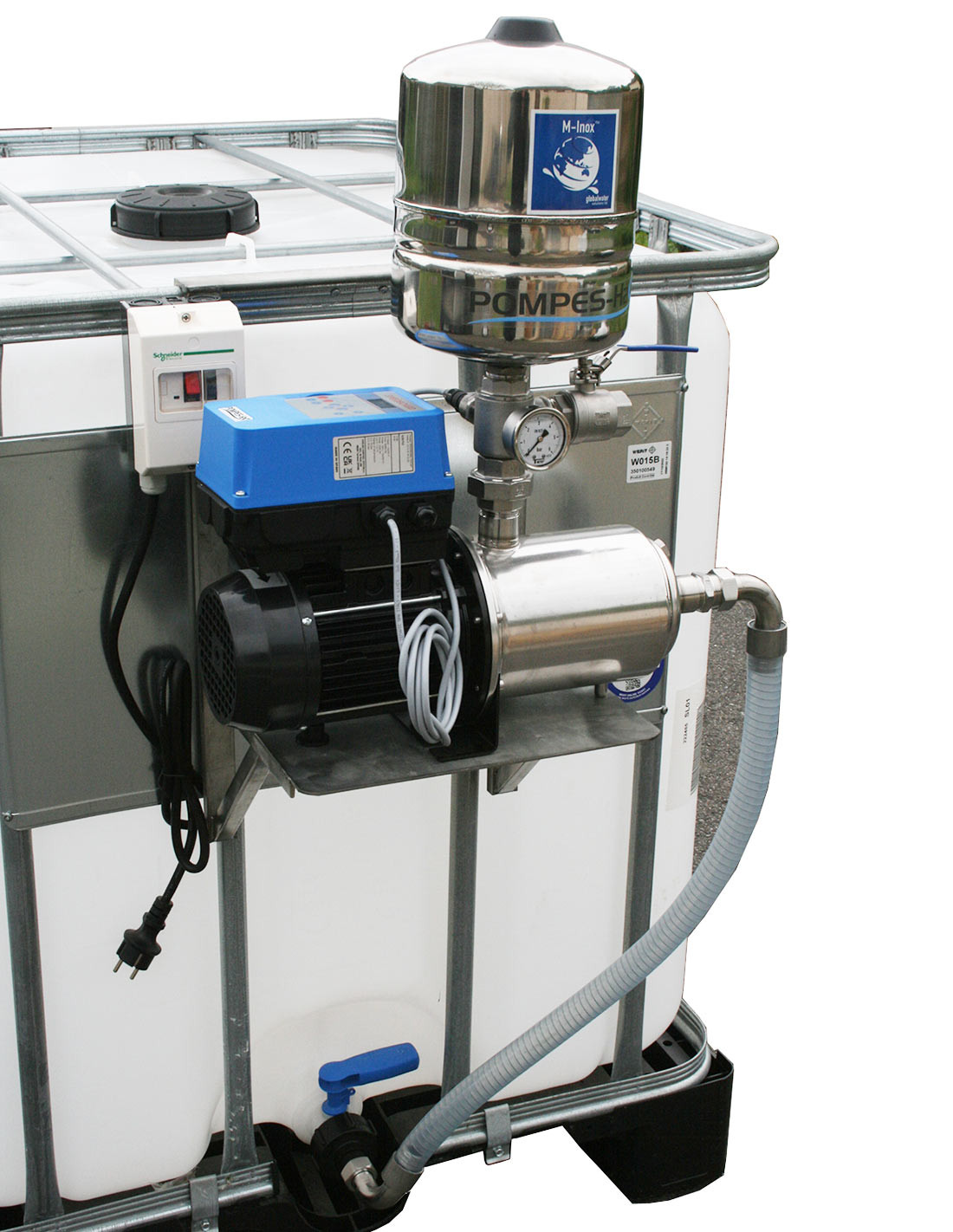

- Horizontal multistage pump, entirely in 304 stainless steel, higher efficiency, IE3 motor.
- SPEEDBOARD variable speed drive, for complete control and management of the pump (mounted on the pump).
- Stainless steel frame specially designed for IBC tank/container to support the pump and accessories assembly.
- 4-20 mA pressure sensor, at the pump discharge.
- Axial stainless steel pressure gauge 0-6 bar.
- In-line bladder pressure tank, capacity 8L PS 10 bars, all 304 stainless steel.
- 2-piece 316 stainless steel valves, flat handles, fitted on the delivery side.
- 316 stainless steel check valve, with 1" and 1/4" tapping.
- Box + Motor circuit breaker.
- Electric cable set.
- Stainless steel bolts.
- Assembled, connected and tested in the workshop.
- 2-year warranty.
| Model | SCIX EHX 3-5M |
|---|---|
| Reference | 600749 |
| Power (Kw) | 0.75 |
| Power supply (V) | 230 single-phase |
| Max flow rate (m3/h) | 4.0 |
| Max pressure (bar) | 4.8 |
| Start/stop preset (bar) | 3.4 - 4.0 |
| Suction port | 1" |
| Discharge port | 1" |
| Dimensions Length x Width x Height (cm) | 40 x 32 x 57 |
| Weight (Kg) | 25 |
