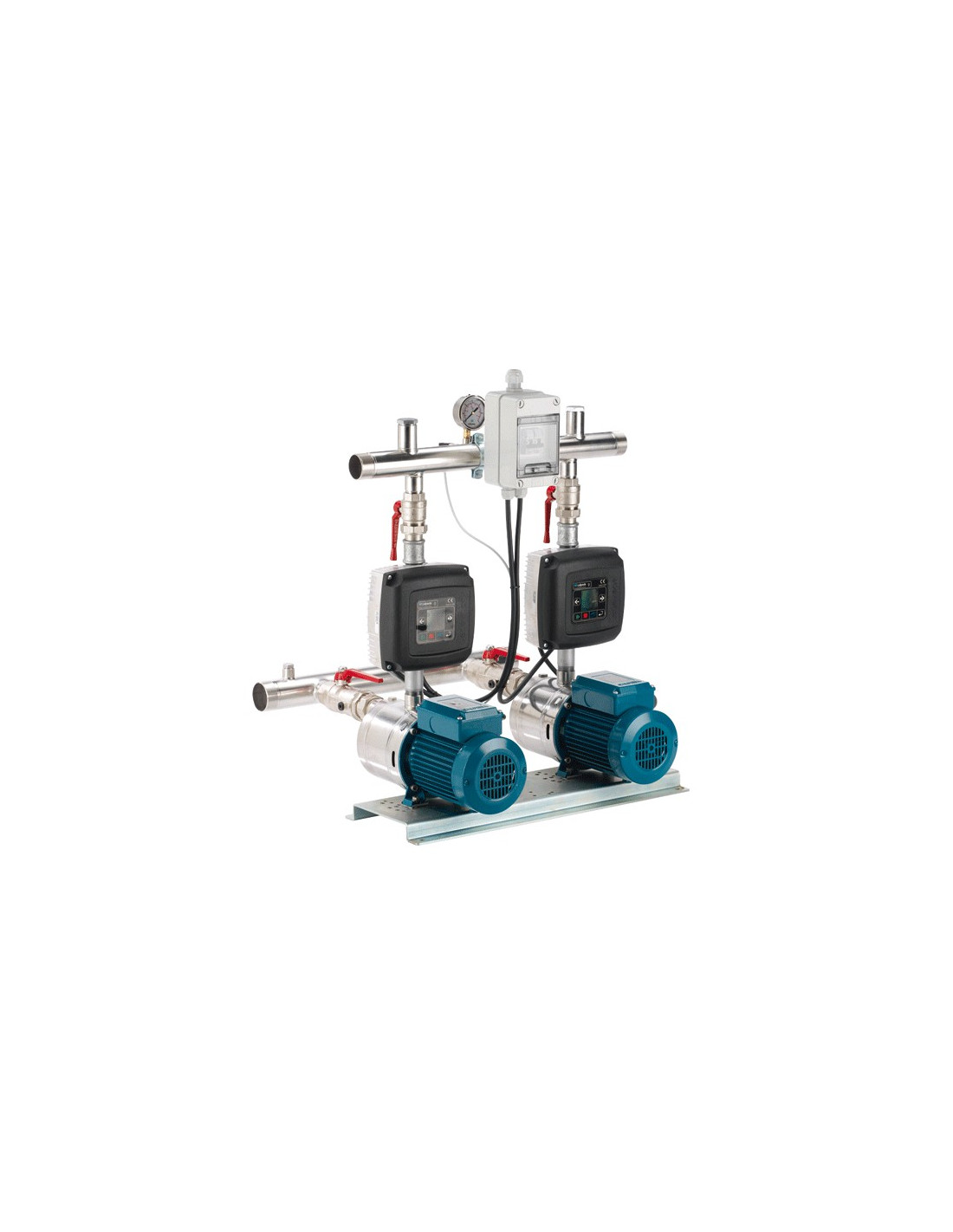

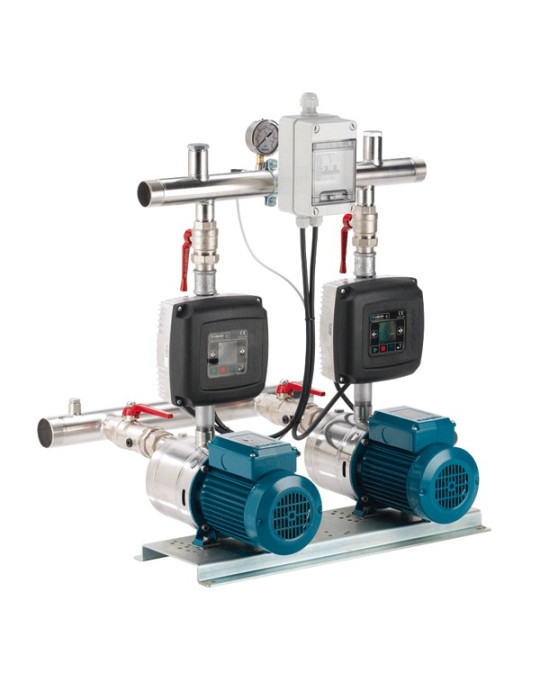

The booster set connects to a 230V single-phase network (1 phase + neutral + earth); the inverter converts this 230V single-phase voltage (1 phase) into 230V three-phase voltage (3 phases).
Use:
- Water supply for a collective network.
- Supply of networks requiring constant pressure.
The booster set is supplied with:
- 1 omega frame.
- 2 MXH 203E / MXH 205/A horizontal stainless steel multistage pumps.
- 2 EASYMAT 7.5MT frequency inverters.
- 1 24L bladder pressure tank.
- 1 pressure transmitter 0-10 bar / 4/20MA
- 1 pressure gauge.
- 1 set: non-return valve, valve, fittings.
- 1 protection box
- 3 metres of cable with male plug.
| Model | 2 MXH 203E-EMT |
2 MHX 205/A-EMT |
|---|---|---|
| Reference | 600281 | 600282 |
| Power (kW) | 2 x 0.45 | 2 x 0.75 |
| Supply voltage (V) |
230 / single-phase |
|
| Motor voltage (V) | 230 / three-phase | |
| Max current (A) | 2 x 2.4 | 2 x 3.5 |
| Suction manifold (BSP) | 2" M | |
| Discharge fitting (BSP) | 1" 1/2 M | |
| Variable flow rate (m3/h) | 0 to 9.6 | |
| Max pressure (bar) | 0.9 to 3.3 | 1.9 to 5.7 |
| Noise level | < 55 dB | |
| Liquid temperature | -15°C to +110°C | |
| Ambient temperature | up to 40°C | |
| Cable (m) + standard plug | 3 | |
| Dimensions (mm) | L 625 - W 570 - H 735 | L 625 - W 645 - H 735 |
| Weight (kG) | 61 | 69 |
* Contact us for more information on variable-speed booster sets.
