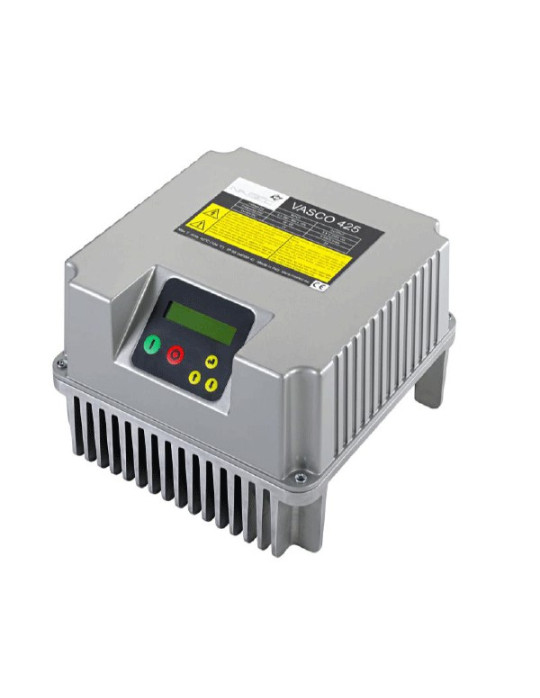

Variateur de vitesse pompe mono-mono 9A - Vasco 209-214 M1

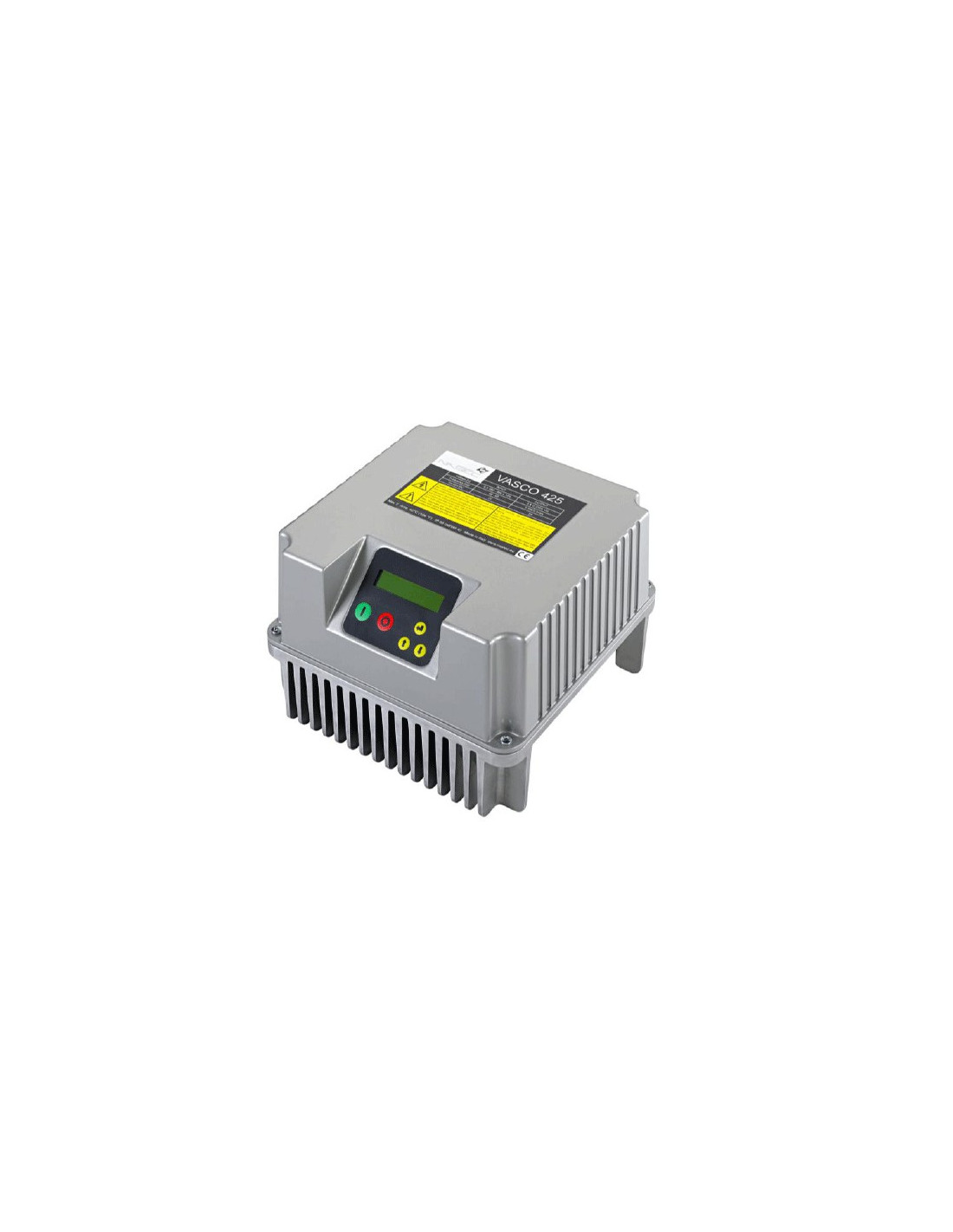

Wall-mounted speed controller for three-phase pump 7.5-132 Kw

Reference 009208

VASCO drives connect to all three-phase 380-460 V pumps, regulate the motor frequency to maintain constant pressure, and ensure energy savings and increased pump service life. Wall mounting, supplied with pressure sensor. Contact us for a quotation.

Intensity

Attributs

The product is not available for order.

Image	Ref.	Intensity
	009208	18A maxi
	009209	25A maxi
	009210	30 A maxi
	009211	38 A maxi
	009212	48 A maxi
	009213	65 A maxi
	009214	75 A maxi
	009215	85 A maxi
	009216	118 A maxi
	009217	158 A maxi
	009218	185 A maxi
	009219	215 A maxi
	009220	268 A maxi
Total: 0,0 All prices with tax included.

Description

The VASCO speed controllers (frequency converters) are control and protection devices for surface and submersible pumps; the system is based on varying the pump's supply frequency. It can be installed on pumps already installed or on new pumps.

General specifications:
- Protects the motor from overloads and dry running.
- Controls soft start and soft stop, in order to increase the pump's service life and reduce the current drawn.
- Indication of current consumption and voltage.
- Recording of operating time, as well as incidents (faults).
- Connection to other Vasco inverters, for combined operation of constant-speed pumps, 3 pumps max. (Direct On Line).
- Option: Inductive filter to reduce the overvoltages that occur in very long cables (ideal for submersible pumps).
- Mains supply frequency: 50 - 60 Hz (+/- 2%)
- Max. working environment temperature at rated load: 40°C (104 °F)
- Max. altitude at rated load: 1000 m
- Degree of protection: IP55 (NEMA 4) *
- RS485 serial

- Supplied with 0-16 bar pressure sensor.

Model	Reference	Voltage input (V)	Voltage output (V)	Max current output (A)	Max power output (Kw)
V418	009208	3 x 380-460	3 x 380-460	18	7.5
V425	009209			25	11
V430	009210			30	15
V438	009211			38	18.5
V448	009212			48	22
V465	009213			65	30
V475	009214			75	37
V485	009215			85	45
V4118	009216			118	55
V4185	009217			158	75
V4158	009218			185	90
V4215	009219			215	110
V4268	009220			268	132

Product Details

Attachments

Documentation-VASCO

Download (1.73MB)
