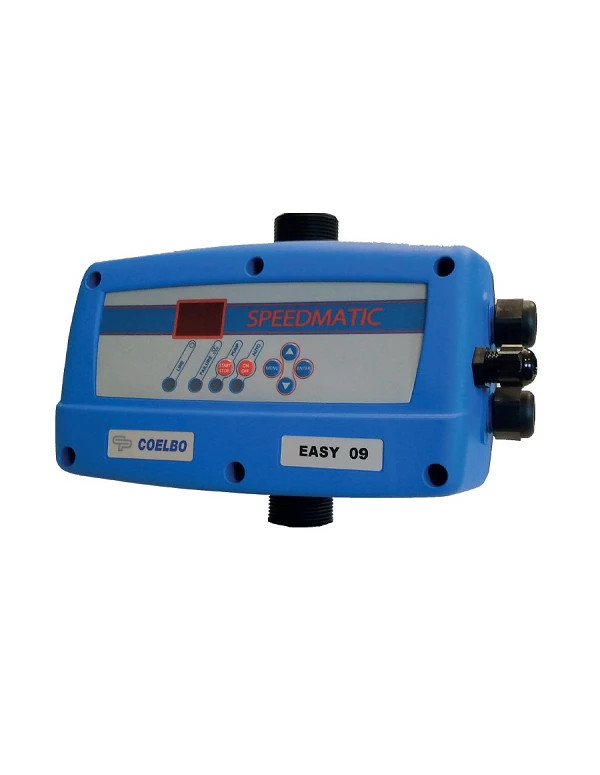

Single-phase 230 V pump speed controller SPEEDMATIC EASY

009161

Frequency drive for single-phase 230 V pump, to be connected on the pump delivery, it varies the motor speed according to use, while maintaining constant pressure, it provides control and protection of a pump against overcurrents and dry running. Easy to configure, simply set the target pressure on the digital screen.

Model
Attributs
The product is not available for order.
Image Ref. Model
Single-phase 230 V pump speed controller SPEEDMATIC EASY
009161 EASY 09 MM
Single-phase 230 V pump speed controller SPEEDMATIC EASY
009162 EASY 12 MM
Total: 0,0
All prices with tax included.
Description

Specifications:
- Frequency inverter for 1 single-phase 230 V pump.
- ART function (Automatic Reset Test): when the inverter detects a lack of water at the suction, the ART system stops the pump and tries, for programmed periods, to restart the pump until the water supply is restored.
- Automatic reset system after an interruption of the electrical supply: the system restarts automatically while keeping the programmed parameters.
- Built-in pressure sensor with digital indicator.
- Control and signalling panel with instant digital reading.
- Current sensor with instant digital reading.
- Screen display of working hours, mains connection, alarm log, with memory since start-up.
- PID intervention possible.

Model EASY 09 MM EASY 12 MM
Reference 009161 009162
Supply voltage (V) 1 x 230
Output voltage (V) 1 x 230
Frequency (Hz) 50/60
Max current (A) 9 12
Pressure setting (bar) 0.5 to 8
Max. flow rate (l/h) 10 000
Protection IP 55
Max. water temperature (°C) 40
Max. ambient temperature (°C) 50
Hydraulic connection 1" 1/4
Weight (Kg) 2.5 2.5
