| Model | Reference | Power (Kw) |
Power supply three-phase (V) |
Flow rate nominal (m3/h) |
Pressure Max (m) |
Ports suction/ref |
Weight (Kg) |
|---|---|---|---|---|---|---|---|
| MXV EI 65-3203 | 600730 | 5.50 | 400 | 32 | 4 | DN65 | 100 |
| MXV EI 65-3204 | 600731 | 7.50 | 6 | 115 | |||
| MXV EI 65-3206 | 600732 | 11.00 | 9 | 168 | |||
| MXV EI 65-3208 | 600733 | 15.00 | 13 | 221 | |||
| MXV EI 65-3210 | 600734 | 18.50 | 16 | 230 |
Advantages:
- Energy saving.
- Compact design
- Ease of use.
- Programmable according to system requirements.
- Reliability.
Uses:
- For clean liquids, without abrasive particles, non-aggressive
- Liquid temperature from: - 15°C to + 110°C.
- Ambient temperature up to + 40°C.
- Three-phase motor 400/690 volts. 2900 rpm (continuous duty).
- Insulation class F - IP 55 protection.
- High-efficiency IE3 three-phase motor (IE4 motor on request).
Specifications:

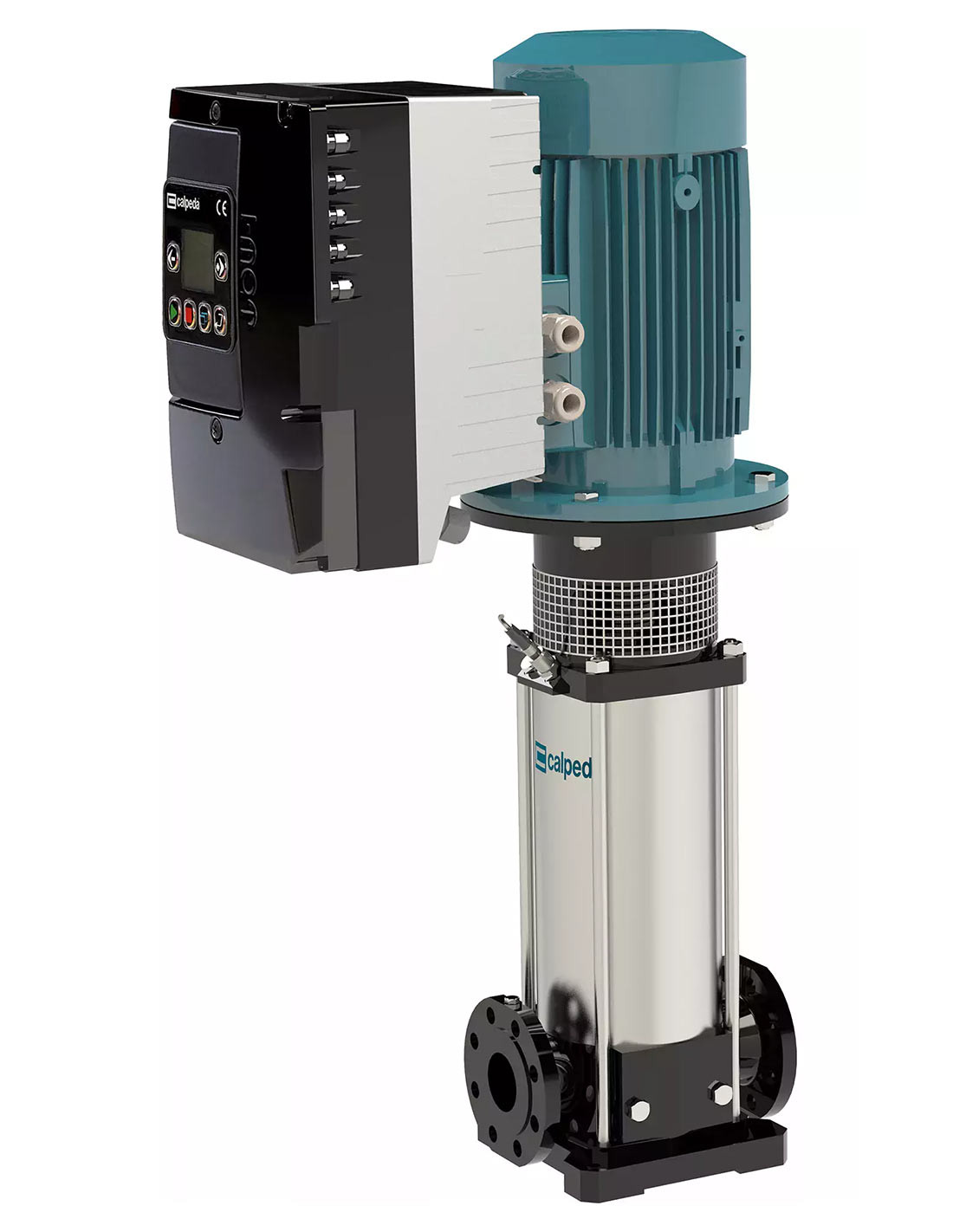

- 1 MXV 65 vertical multistage pump, in chrome-nickel stainless steel with bearing and coupling sleeve allowing the use of any IMV1 type motor.
- 1 IMAT frequency inverter mounted on the pump at the factory.
- 1 pressure sensor (supplied unconnected).
