Réservoir à membrane vertical Max 16 bar

60L vertical diaphragm tank Max 16 bar

311051

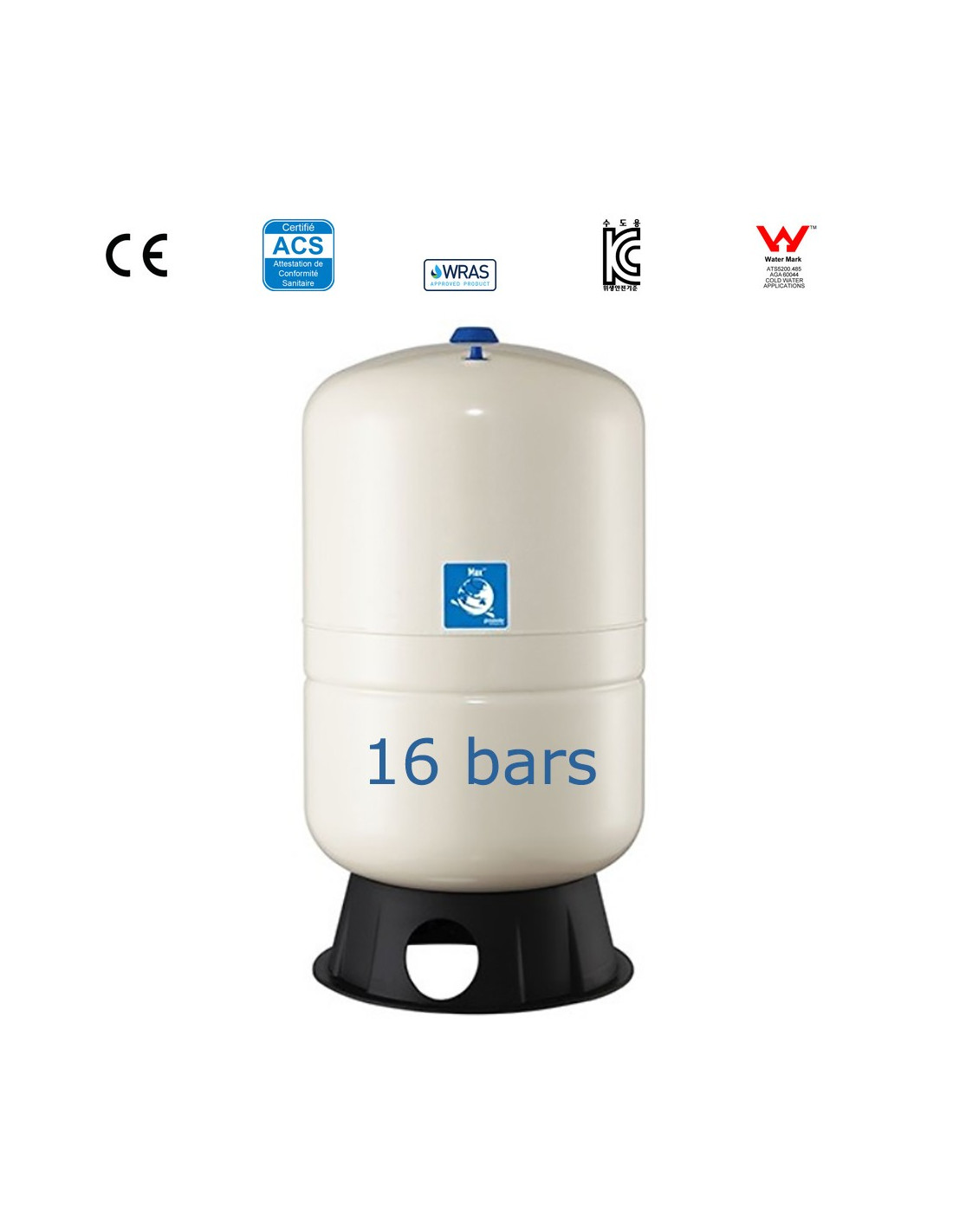

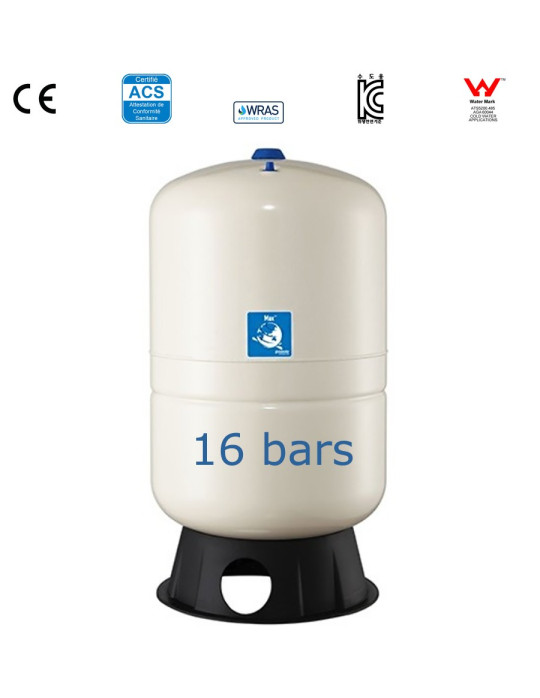

Hydropneumatic diaphragm tank, vertical installation, thick steel construction, epoxy primed, polyurethane finish, working pressure 16 bar, available in 60 litres, suitable for many pressure boosting applications.

Description

Specifications:
- Heavy-gauge steel construction, two-component polyurethane finish, epoxy primed.
- Diaphragm design.
- Inner lining doubled in virgin polypropylene.
- Stainless steel connection, 1" male.
- Air valve cap sealed by leak-free O-ring.
- Maximum operating temperature: 90°C.
- Maximum working pressure: 16 bar.
- Pre-charge at 4 bar.

 Model Reference Volume
(L)		 PS
(bar)		 A
(cm		 B
(cm)		 C
(cm)		 Weight
(Kg)
MXB-60LV 311051 60 16 62.00 39.00 12.70 14.84
