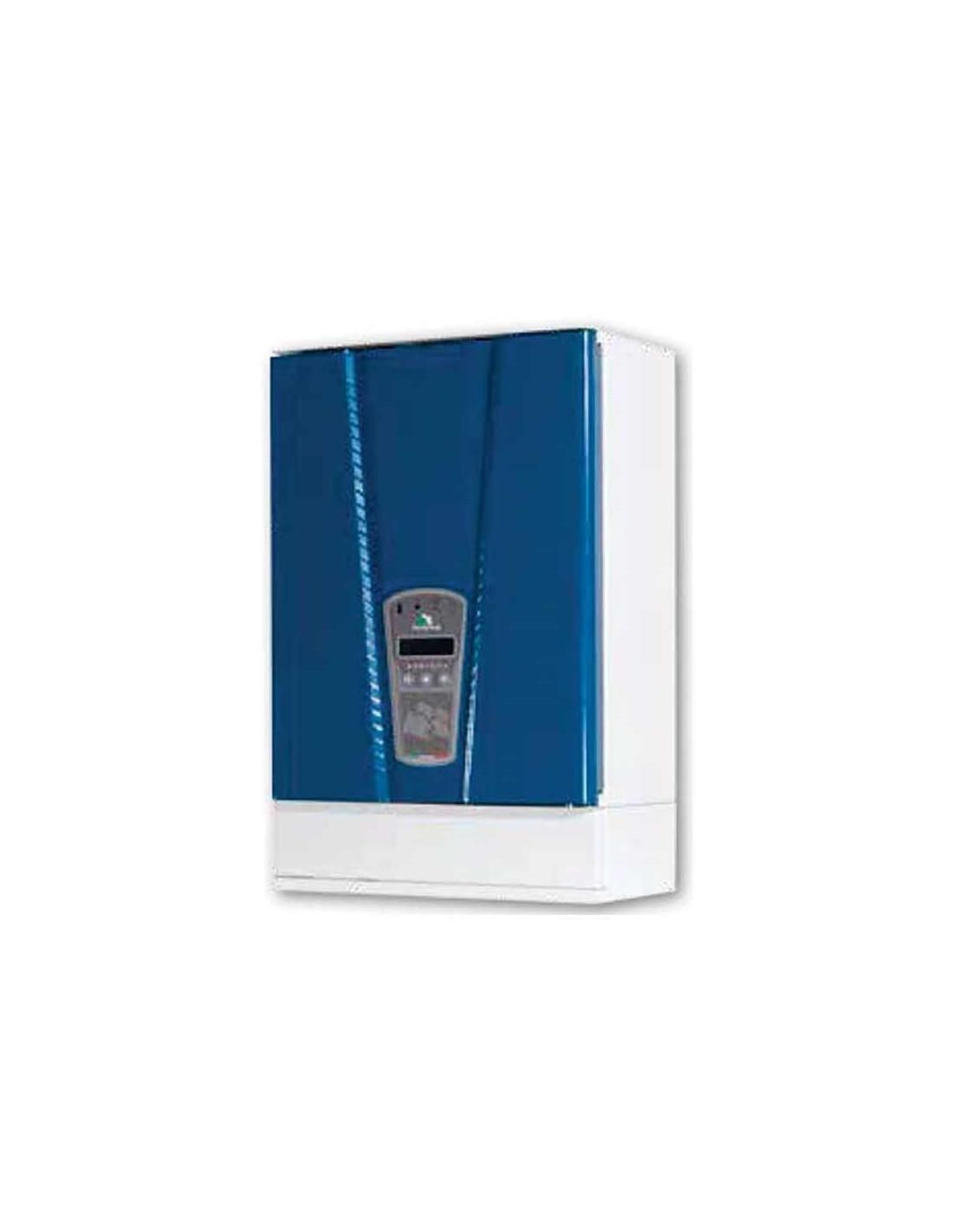

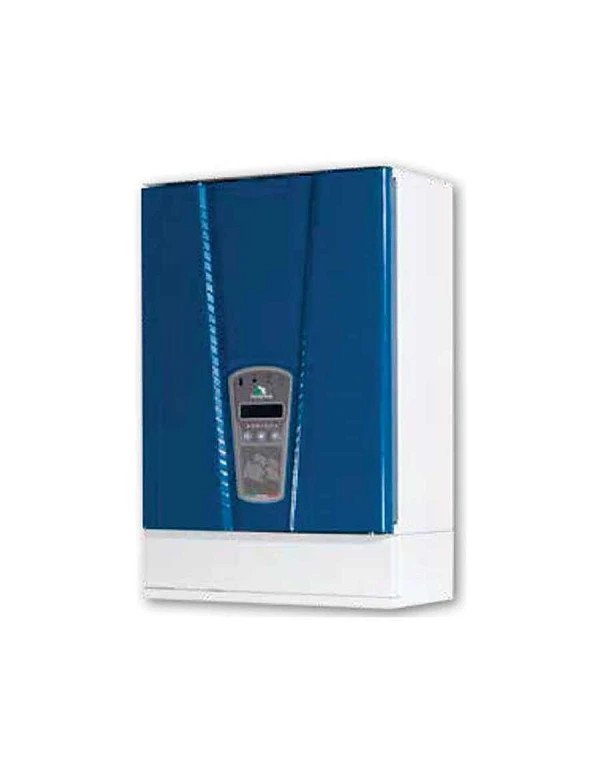

Enerbox 3100 VA emergency power supply

Explanation:

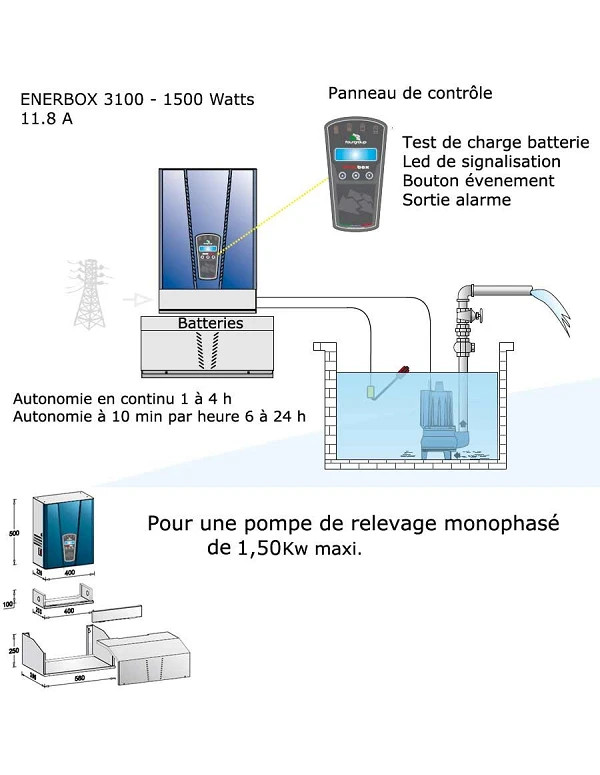

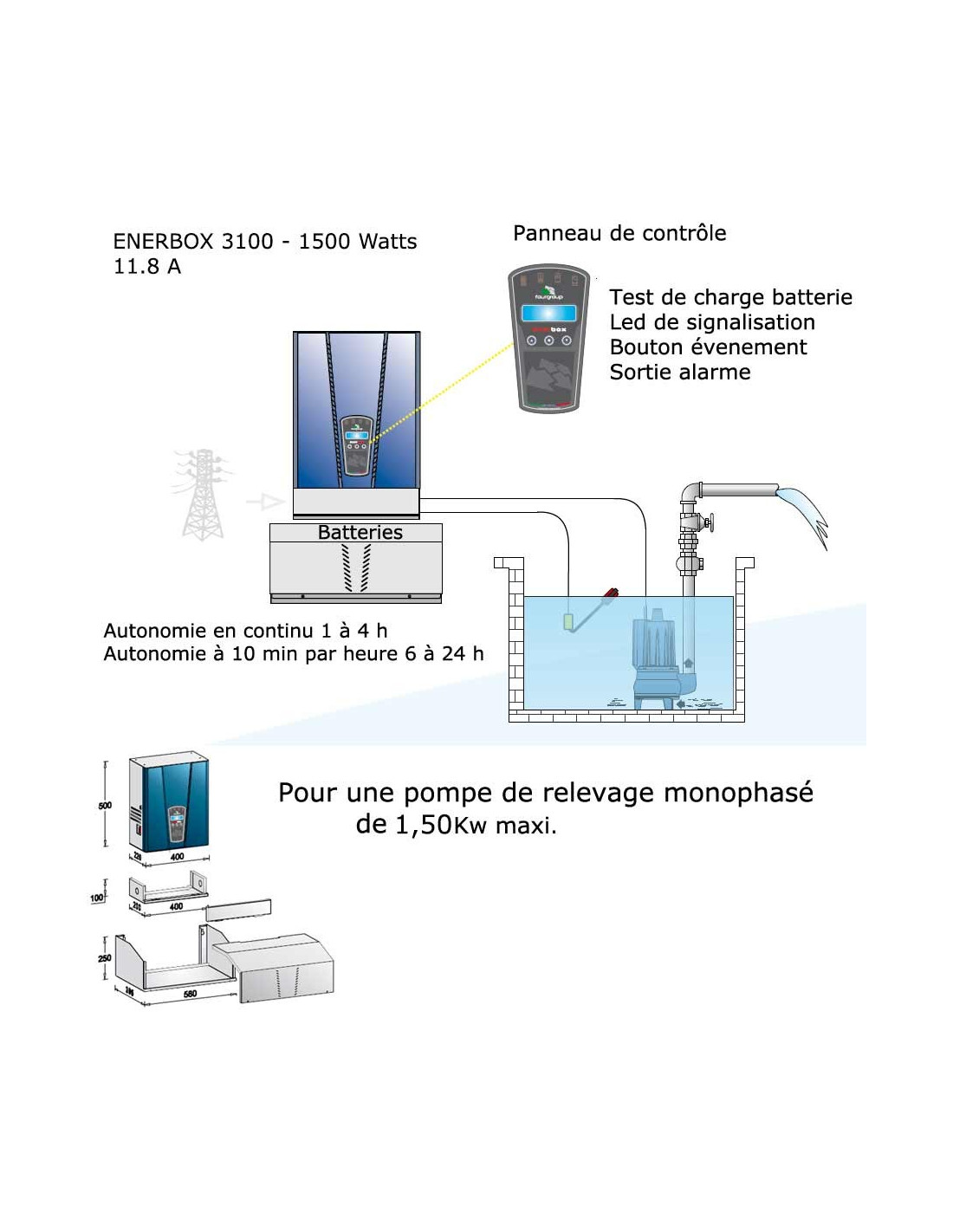

- The Enerbox 3100 is a rectifier and inverter, single-phase 230 V supply; the batteries store the rectified current, stepped down to 12 volts, and in the event of a mains power failure they return the stored energy, which is inverted and stepped up to 230 volts single-phase, maximum pump power 1500 W.

- The autonomy required in the event of a mains failure (power cut) must be at least 1 or 2 hours (in operation), in the event of rain, the pump runs for 1 minute every 6 minutes (approximately 10 minutes per hour).

Calculation of the catchment area in m² :
This is the sum of all the surfaces (terrace, roof, garage ramp, cellar, garage...) + other wet surfaces in m² = total catchment area in m².
Example: Roof of 120 m² + garage ramp 20 m² + 10 m2 of wet area, = 150 m²

Calculation of the pump flow rate in l/min:
This is the result of multiplying (catchment areas + 20% head losses) x 1.5 (K coefficient)
Example : Total area 150 m² + 20 % x 1.5 = 270 l/min

Specifications:
- ENERBOX 3100 supply, single-phase 230 V+/- 10 % 50 Hz.
- Battery voltage 24 Vdc or 36 Vdc.
- ENERBOX 3100 output, single-phase 230 V+/- 10 % 50 Hz.
- Prepared for one or two pumps.
- Pseudo-sinusoidal output wave (when running on battery).
- Efficiency 95%.
- Built-in GSM transmitter.
- Automatic battery charger.
- STOP function when the battery voltage is depleted.
- Blue LED, output line power present and inverter running.
- Green LED, battery charged.
- White LED, battery charging.
- Red LED, battery depleted.
- Battery charge test button.
- Auxiliary protection fuse.
- Battery charger fuse.
- Battery fuse.
- Reverse polarity protection.
- Overload protection.
- Short-circuit protection.
- Overheating protection.
- Protection against reverse battery polarity.
- Control input contact, for float switch, start/stop, automatic pump operation.
- Alarm contact 12 Vdc (max 300 mA).
- Emergency stop switch.
- Multilingual installation.
- Output with cable support.
- Removable door.
- Box painted with epoxy.
- IP 31 protection.
- Operating temperature from -5 to + 40 °C, with maximum humidity 50% (non-condensing).

Composition:
- The Enerbox 3100 (reference 008186) is supplied on its own, without batteries.
- The Enerbox 3100 1h00, 1h30, 2h00 and 2h30 are supplied with batteries, battery cables, battery support and cable cover finishing accessories.

Options:
- DARK 1 box, for a lift pump with 2 float switches.
- DARK 2 box, for two lift pumps, with 3 float switches.

Operation:
- For one or two single-phase pumps without float switch.

Reminder : * In the event of rain, the pump runs for 1 minute every 6 minutes (approximately 10 minutes per hour).
