HYDRO 60 dewatering submersible pump Expand

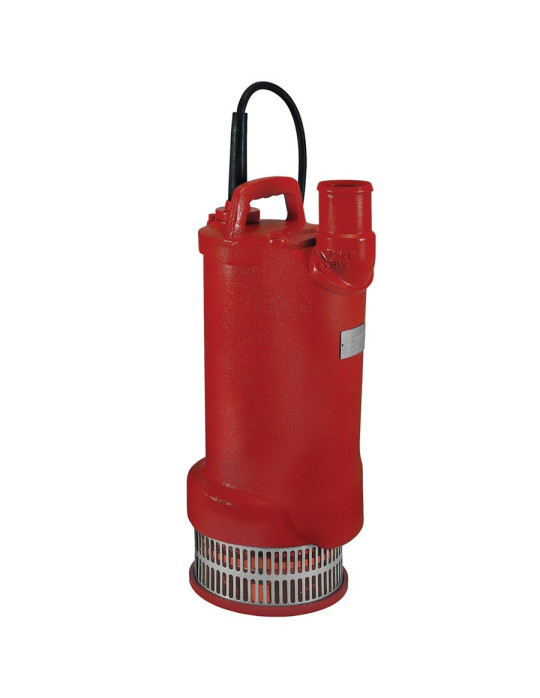

HYDRO 60 dewatering submersible pump

HYDROPOMPE HYDROPOMPE

New

HYDRO 60 dewatering submersible pump : this worksite pump is used in public works or by the firefighters for their interventions in case of floods. Very high flow until 60 m3/h.

More details

More info



Description  : HYDRO 60 worksite pump : N1100T et 40T
Model Referency Voltage
(v)
Power
(kw)
Dimension
H x L
(mm)
Weight
(kg)
DN
HYDRO N1100T 204 122 400 2.20 590 x 270 30 2" 1/2
HYDRO 40T 204 124 400 3.50 590 x 270 35 2" 1/2















> Delivery with cable 10 m.

Flow in m3/h of : HYDRO 1100T pump & HYDRO 40T pump
Flow in m3/h   0 10 20 30 40 50 60
Total elevation in (m)
N1100T 16 14 13 11 9 6  3
40T 21  20 18 16 14 9 6




The HYDRO N1100T and HYDRO 40T are submersibles pumps used for draining clear water and cloudy water. Used on worksites, like back-up pump portable or fixed for all kind of pumping.



 Characteristics : SUBMERSIBLE HYDROPOMPE 60 pump : HYDRO N1100T - HYDRO 40T




> Supply voltage : Three-phase 400V ± 5%.

> Frequency 50Hz.

> Protection : insulation classe F and level of protection : IP 68.

> Shaft, bolt and filter in stainless steel material ; casing, body pump and diffuser in aluminium alloy material.

> Wearing parts are adjustable as to retain them, and they are easy to substitute too.

> Double ball bearing (superior & inferior), on the motors of N1100T and 40T pumps.

> Electric squirrel-cage motor, dry rotor, cooled by the pumped liquid.

> Asking for have automatic complete version model.

 Option : Protection and control - Pipes and fittings - Accessories



> Control panels.

> Float switch.

> Motor protection.

> Electric cable 4G2.5 - 4G4.
