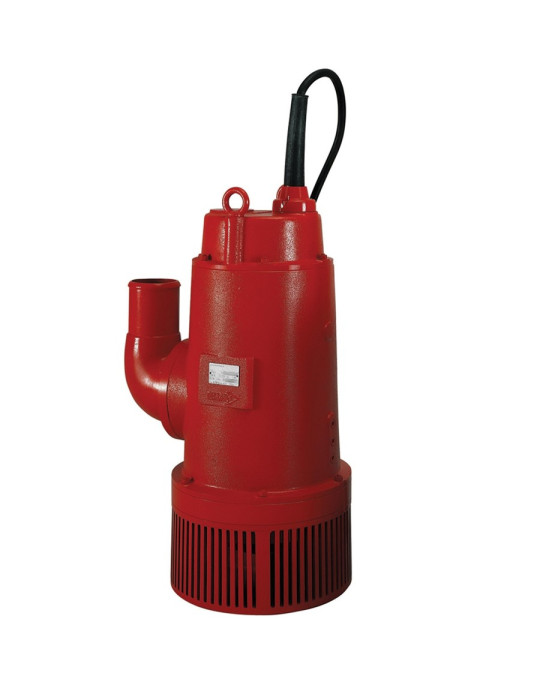

The CHANTIER 300 pumps, available in several models: HYDRO 2400 - 2600 - 3200 - 4200 - 4500 and 22K2, are suited to fixed or mobile pumping use.
Specifications:
- Double-wall aluminium pump body.
- Stainless steel shaft and fasteners.
- Open cast iron impeller.
- Asynchronous motor with dry rotor, cooled by the pumped liquid.
- Sealing provided by a double mechanical seal in an oil chamber: lower seal in silicon carbide. Upper seal in carbon/ceramic.
- The 2600BP model is suited to pumping mud and drilling waste.
- Maximum immersion depth 20 m.
- Protection: class F insulation - Protection rating: IP 68.
- On request, all models can be supplied in a complete automatic version.
- Supplied with 20 m of cable.
- The wear parts are coated in rubber and are adjustable to maintain the hydraulic characteristics. Easy to replace when worn.
Use:
- Pumping muddy, sandy, silty site water.
- Pumping abrasive liquids containing solids.
- Dewatering, lowering of water tables.
- Drying out trenches, foundations, excavations, quarries.
- Pumping and recycling water from fountains, ponds, basins.
- Price: contact us.
These pumps are extremely efficient and robust, and will give you complete satisfaction over time.
| Model | Reference | Voltage (v) | Power (kw) | Bore clearance (mm) | Dimension H x L (mm) | Weight (Kg) | Diameter discharge |
|---|---|---|---|---|---|---|---|
| HYDRO 2400AP | 215132 | 400 | 5.00 | 6 | 800 x 470 | 70 | 4" M |
| HYDRO 2400BP | 215133 | 400 | 5.00 | 800 x 470 | 70 | 4" M | |
| HYDRO 2600BP | 215134 | 400 | 7.00 | 800 x 470 | 80 | 4" M | |
| HYDRO 3200AP | 215135 | 400 | 7.00 | 800 x 470 | 80 | 4" M | |
| HYDRO 3200BP | 215136 | 400 | 7.00 | 800 x 470 | 80 | 4" M | |
| HYDRO 4200BP | 215137 | 400 | 8.10 | 800 x 470 | 85 | 4" M | |
| HYDRO 4500BP | 215138 | 400 | 10.00 | 800 x 470 | 87 | 4" M | |
| HYDRO 22K2 | 215139 | 400 | 22.00 | 7 | 850 x 680 | 183 | 4" M |
| Model | Flow rate (m3/h) | 0 | 20 | 40 | 60 | 100 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|---|
| 2400AP | Height (m) |
34 | 22 | 13 | - | - | - | - | - | - |
| 2400BP 2600BP |
23 | 21 | 19 | 16 | 9 | - | - | - | - | |
| 3200AP | 40 | 28 | 19 | - | - | - | - | - | - | |
| 3200BP | 23 | 21 | 20 | 19 | 15 | 8 | - | - | ||
| 4200BP | 26 | 25 | 22 | 20 | 16 | 9 | - | - | ||
| 4500BP | 28 | 27 | 25 | 23 | 19 | 10 | - | - | - | |
| 22K2 | 33 | 30 | 29 | 28 | 25 | 20 | 16 | 12 | 8 |
Additional installation items:
- Control panel.
- Float switch.
- Motor protection.
You have questions and would like personalised advice before buying your site pump.
Contact us for a suitable solution.
