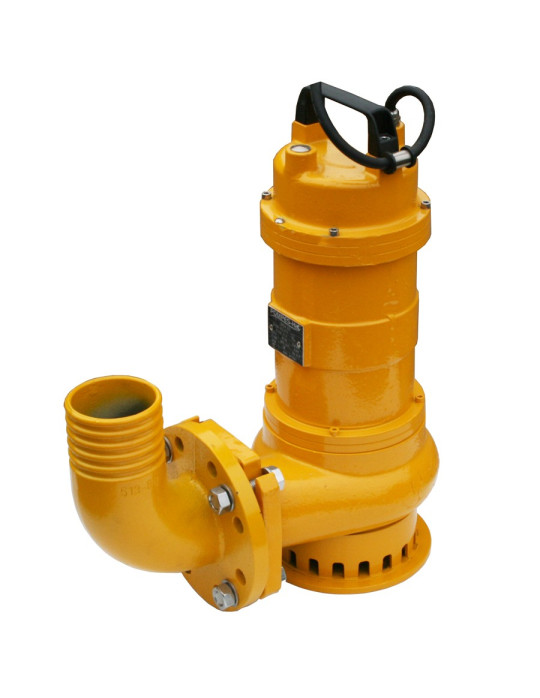

Site drainage pump DREN 300

Name: Site drainage pump DREN 300
Brand: POMPES H2O
SKU: 215339
Price: 1563.33 EUR
Availability: InStock

Reference 215339

Delivery 2 to 3 weeks

€1,563.33

€1,563.33 tax excl.

Submersible drainage pump for water loaded with mud, sand, emptying of ponds, basins, drying out of foundations, rainwater pits. Robust cast iron pump, professional quality, power 2.20 Kw, three-phase, max flow rate 40.2 m3/h, max head 21 metres.

Description

Specifications:
- Pump body, cover, delivery body and pump support in cast iron.
- Open two-channel impeller in cast iron.
- 316 stainless steel shaft.
- Double mechanical seal in silicon carbide.
- Oil-bath motor.
- IP 68 protection.
- Insulation class F.
- Max pumped liquid temperature, 50°C.
- pH between 6 and 10.
- Max pumped liquid density 1100 Kg/m3.
- HO7RN-F electric cable, 10 metres.
- Supplied with GV2 motor circuit breaker + GV2 box.
- Supplied with 90° elbow, ribbed outlet.
- Stainless steel flange bolts + gasket.
- 2-year warranty.

Model	DREN 300
Reference	21339
Voltage (V)	400 - three-phase
Power (Kw)	2.20
Current (A)	5.4
Float	WITHOUT
Max flow rate (m3/h)	40.2
Max flow rate (l/min)	670
Max. head (m)	21
rpm	2850
Solids passage (mm)	5
Horizontal discharge	3" - DN80
Height (A)	525
Width (B)	210
Weight (Kg)	41

Site drainage pump DREN 300
