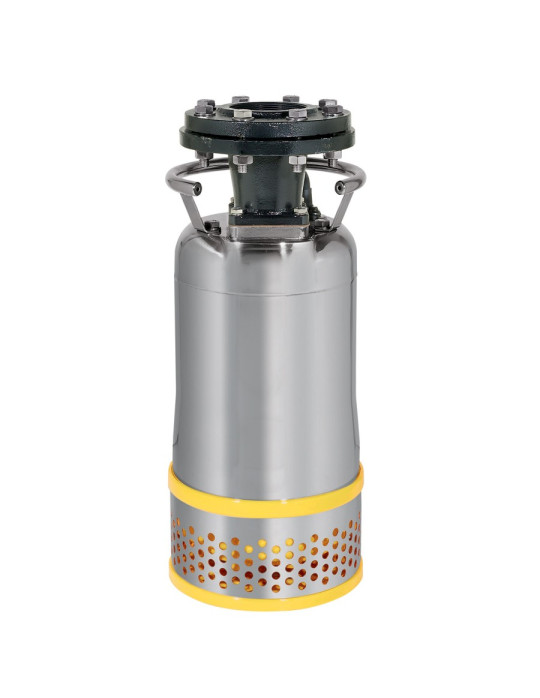

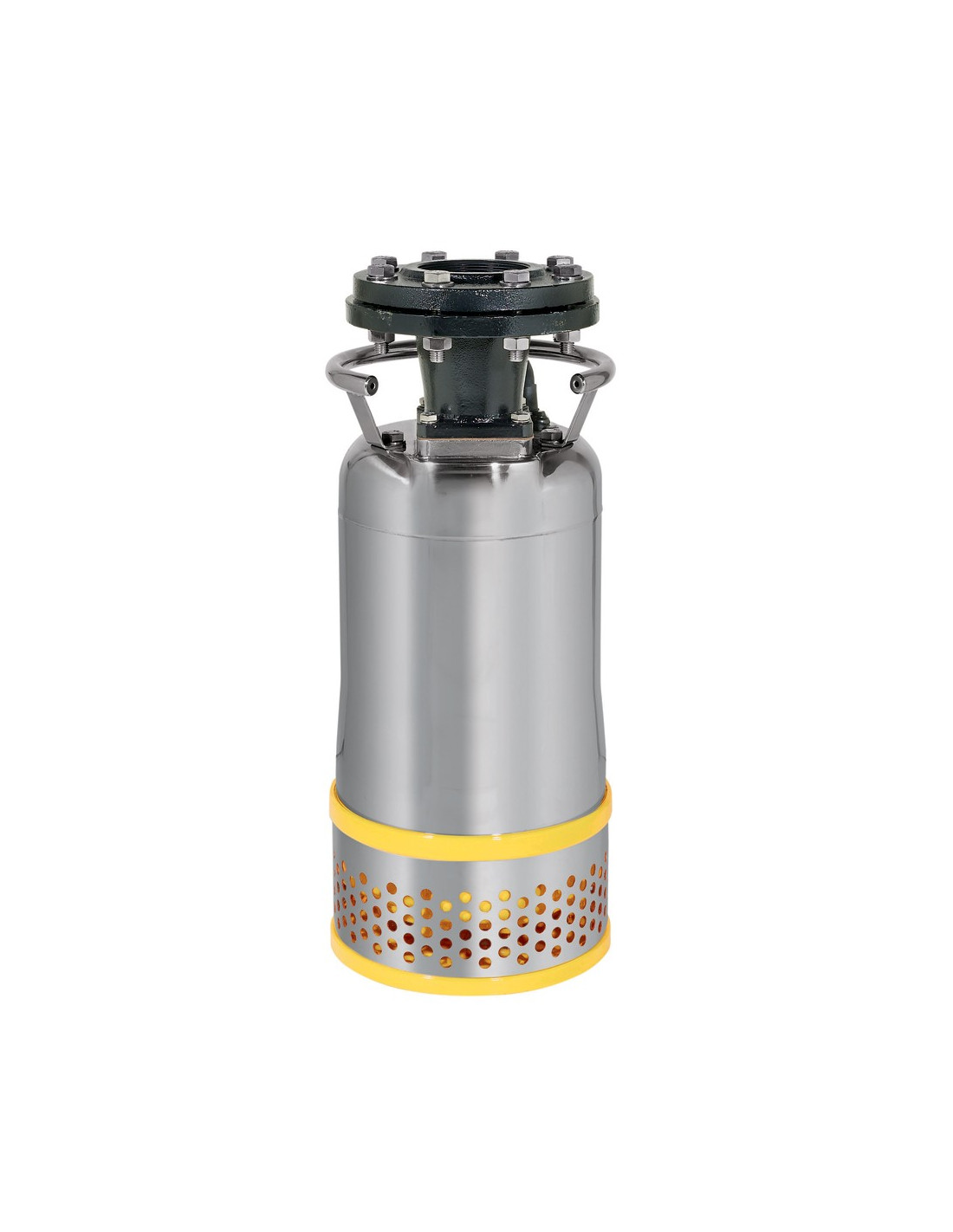

Pompe d'épuisement chantier SUPERDREN 300

Site dewatering pump SUPERDREN 300

215343
Delivery 2 to 3 weeks
€2,450.00

€2,450.00 tax excl.

Site pump in 304 stainless steel, for draining water containing sand, small solids up to 10 mm, flow rate up to 56 m3/h, max head 18 metres, three-phase supply, power 2.20 Kw.

Description

Uses:
- Drainage of water loaded with sand and soil.
- Foundation drainage, emptying of basins.
- Lowering of the groundwater table.
- Portable flood response pump.

 Specifications:
- Outer frame in 304 stainless steel.
- Cast iron stator cover.
- Diffuser cover and open multi-channel impeller, in hardened chrome cast iron, abrasion-resistant, hardness 60 RC.
- 403 stainless steel shaft.
- Double mechanical seal in silicon carbide with oil bath.
- HO7RN-F electric cable, 10 metres.
- IP 68 protection.
- Insulation class F.
- Maximum pumped liquid temperature, 40°C.
- pH between 6 and 13.
- Max pumped liquid density 1100 Kg/m3.
- Maximum immersion depth: 30 metres.
- 2-year warranty.

Model SUPERDREN 300
Reference 215343
Voltage (V) 400 - three-phase
Power (Kw) 2.20
Current (A) 5.1
Max flow rate (m3/h) 48
Max. head (m) 18
rpm 2850
Solids passage (mm) 10
Discharge
 3" - DN80 - vertical
Height (mm) 466
Width (mm) 235
Weight (Kg) 39
