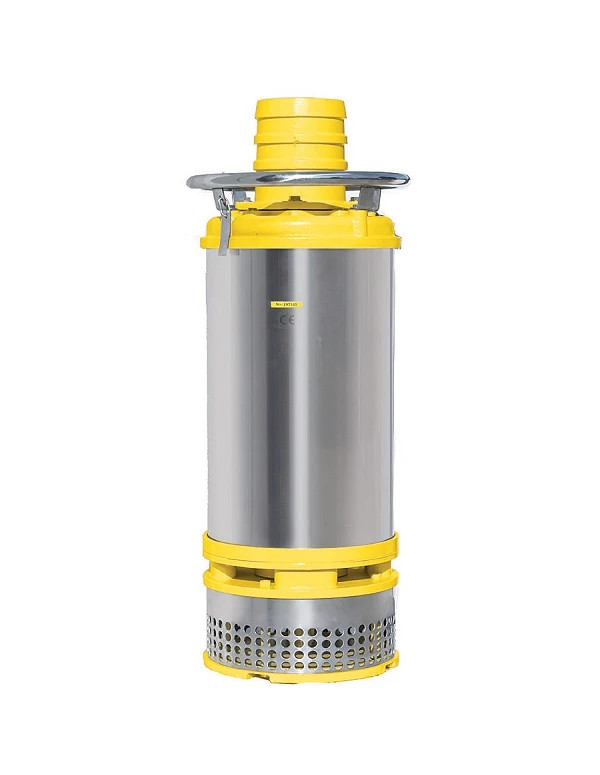

Site dewatering pump SUPERDREN 2000

215347
Delivery 2 to 3 weeks
€7,708.33

€7,708.33 tax excl.

Drainage pump in 304 stainless steel, for dewatering and lifting water containing sand, small solids up to 15 mm, flow rate up to 158 m3/h, max head 44 metres, three-phase supply, power 15.00 Kw.

Description

Uses:
- Drainage of water loaded with sand and soil.
- Foundation drainage, emptying of basins.
- Lowering of the groundwater table.
- Portable flood response pump.
- Pumping of water from quarries, mines, tunnels...

 Specifications:
- Outer frame in 304 stainless steel.
- Cast iron stator cover.
- Diffuser cover and open multi-channel impeller, in hardened chrome cast iron, abrasion-resistant, hardness 60 RC.
- 403 stainless steel shaft.
- Double mechanical seal in silicon carbide with oil bath.
- HO7RN-F electric cable, 10 metres.
- IP 68 protection.
- Insulation class F.
- Maximum pumped liquid temperature, 40°C.
- pH between 6 and 13.
- Max pumped liquid density 1100 Kg/m3.
- Maximum immersion depth: 30 metres.
- 2-year warranty.

Model SUPERDREN 2000
Reference 215347
Voltage (V) 400 - three-phase
Power (Kw) 15.00
Current (A) 30.0
Max flow rate (m3/h) 158
Max flow rate (l/min) 2633
Max. head (m) 44
rpm 2850
Solids passage (mm) 15
Discharge
 6" - DN 150 - vertical
Height (mm)
 1000
Width (mm)
 380
Weight (Kg) 135
