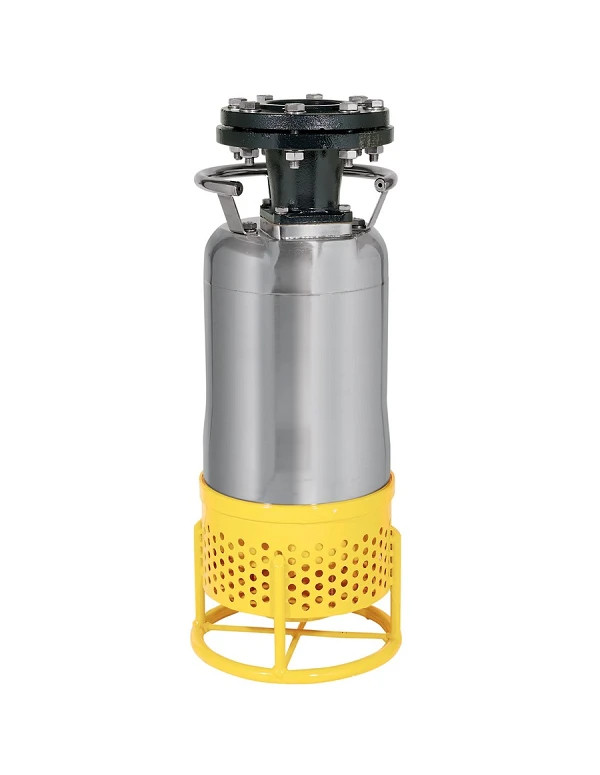

Sludge pump with agitator SUPERDREN AG 300

215348
Delivery 2 to 4 days
€2,516.67

€2,516.67 tax excl.

Pump for sandy, muddy, thick and heavily loaded liquids, SUPERDREN 300, pump with agitator fitted at the end of the motor shaft, which allows stirring of sludge and other thick liquids. Flow rate up to 54 m3/h, max head 21 metres, three-phase supply, power 2.20 Kw.

Description

Uses:
- Pumping of mud, bentonite, thick liquids.
- Drainage of water loaded with sand and soil.
- Foundation drainage, emptying of basins.
- Lowering of the groundwater table.
- Portable flood response pump.

 Specifications:
- Outer frame in 304 stainless steel.
- Agitator, flange, counter-flange and stator cover in cast iron.
- Diffuser cover and open multi-channel impeller, in hardened chrome cast iron, abrasion-resistant, hardness 60 RC.
- 403 stainless steel shaft.
- Double mechanical seal in silicon carbide with oil bath.
- HO7RN-F electric cable, 10 metres.
- IP 68 protection.
- Insulation class F.
- Maximum pumped liquid temperature, 40°C.
- pH between 6 and 13.
- Max pumped liquid density 1100 Kg/m3.
- Maximum immersion depth: 30 metres.
- 2-year warranty.

ModelSUPERDREN AG 300
Reference 215348
Voltage (V) 400 - three-phase
Power (Kw) 2.20
Current (A) 5.1
Max flow rate (m3/h) 54
Max flow rate (l/min) 900
Max. head (m) 21
rpm 2850
Solids passage (mm) 10
Discharge
 3" - DN80 - vertical
Height (mm) 547
Width (mm) 260
Weight (Kg) 40
