Pompe à engrenage PTFE Marco UP12-P (36 l/min)

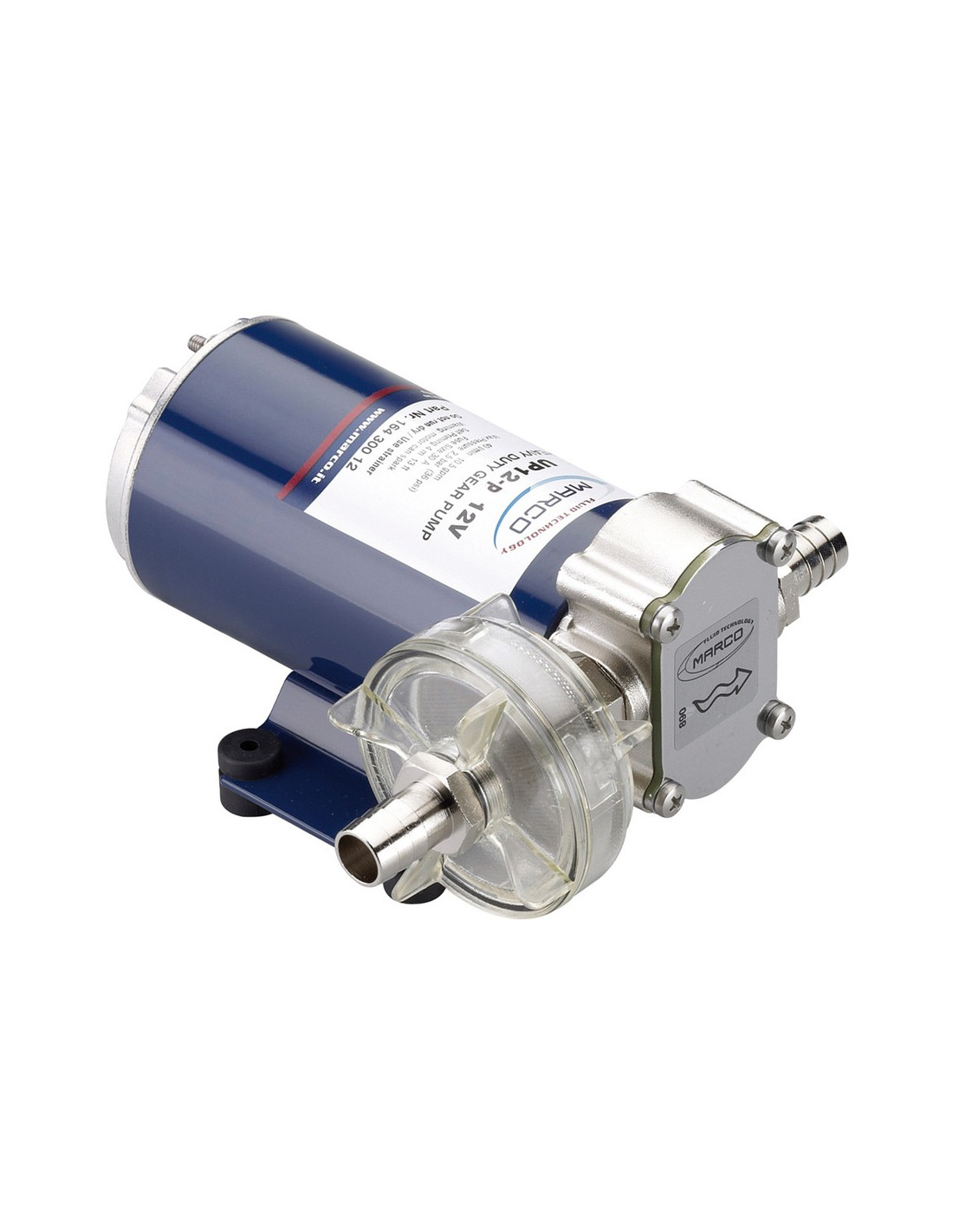

Transfer and emptying pump Marco UP12-P

605579
Last items in stock
€291.67

€291.67 tax excl.

12 or 24 volt electric pump, self-priming, for transferring liquids such as diesel, oil, fresh water, sea water, used for emptying bilges and cellars, pressure boosting, and general transfer.

Voltage

Attributs
Image Ref. Voltage Unit price Avail. Buy
Transfer and emptying pump Marco UP12-P
605579 12 Vcc
€291.67
Available
Transfer and emptying pump Marco UP12-P
605580 24 Vcc
€291.67
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Applications:
- Diesel transfer, diesel refuelling for agricultural and road machinery.
- Emptying boat bilges, emptying cellars, emptying sea water.
- Water transfer, low pressure boosting with a bladder pressure tank.
- Transfer of thin oils, antifreeze, etc.
- The pump can be installed in any position.

Specifications:
- 12 or 24 volt direct current electrical supply, powered by battery or power supply.
- PTFE gears (able to run dry for a short period).
- In-line filter on the suction side + ribbed fittings on the suction and discharge sides.
- Operating temperature: -10°C to +60°C.
- Maximum pumped liquid temperature: 40°C.

Model UP12-P-12  UP12-P-24
Reference 605579 605580
Voltage (V DC) 12 24
Power (W) 360
Current (A) 14 8
Fuse (A) 20 15
Flow rate (l/min) 36
Pressure (bar) 2.5
Priming (m) 3
SUCT-DISCH ports 1/2"
Weight (Kg) 4.3
