Pompe pneumatique à membrane - FLOJET G57

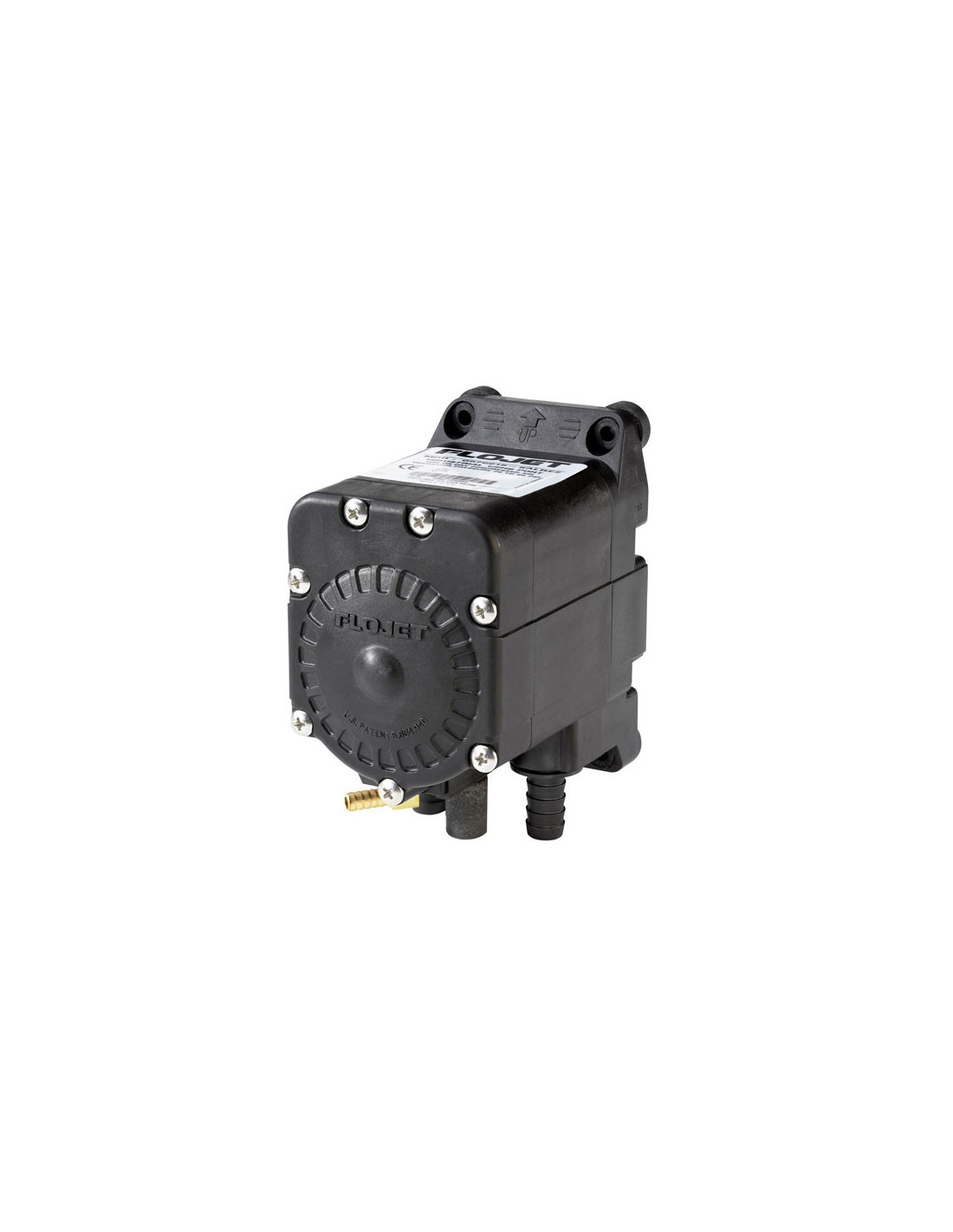

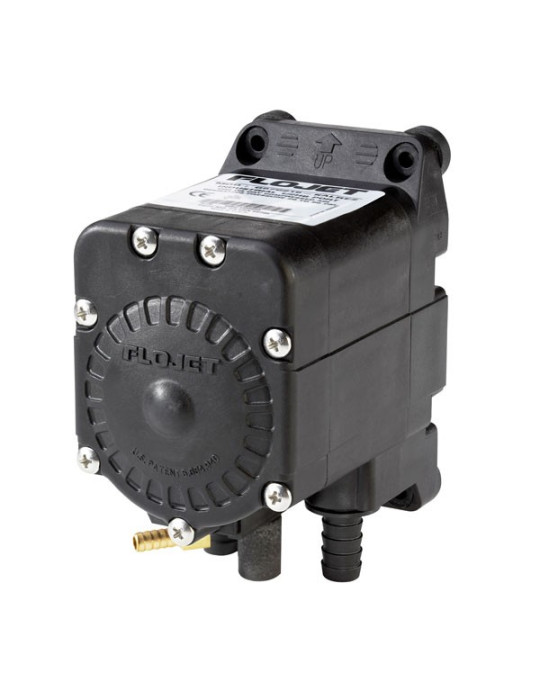

Pneumatic diaphragm pump - FLOJET G57

612101
Delivery 2 to 3 days
$414.33

$414.33 tax excl.

rating Read the review
Average rating: 10/10 Number of reviews: 1

The FLOJET G57 pneumatic pump is a diaphragm pump used for transferring beverages, soda, wine, beer, drinks fountains, Bag-In-Box systems, and with a large number of chemicals. Max flow rate 26.5 l/min, pressure 1.4 to 6.9 bar, self-priming up to 4.5 m, pumping of fluids up to 750 cP.

Description

Advantages:
- Highest flow rate of all air-operated pumps of comparable size.
- Hygienic design with moulded diaphragm.
- Quiet operation.
- Dry running without damage.
- Compact pump with fittings that can be rotated in any direction, for quick connection.
- Patented anti-blocking system.

Specifications:
- Pump body and fittings in polypropylene.
- Double Santoprene® diaphragm, air-driven.
- Santoprene® sealing
- Hastelloy® springs.
- Self-priming up to 4.5 metres dry and 6 metres wet.
- Variable flow rate from 0 to 27 l/min
- Dry running without deterioration.
- Suitable for viscous products up to 750 cps.

Model G57
Reference 612101
Max flow rate (l/min)  26.5
Pressure (bar) 1.4 to 6.9
Min pressure (bar) 1.4
Self-priming 4.5 m dry / 6 m wet
Liquid up to 50 °C
Liquid fluids
and viscous 		 up to 750 cP
Air inlet  1/4" / 6.3 mm (brass)
Fluid inlet - outlet  3/8"
Max noise  87 dB
Weight (Kg)  0.54
