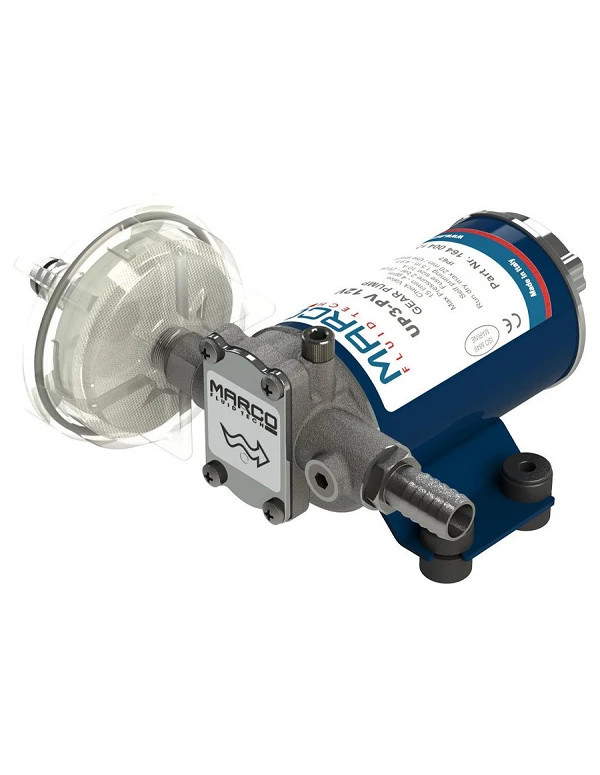

PTFE gear pump 15 l/min with check valve UP3-PV

605625
Delivery 2 to 3 days
€218.33

€218.33 tax excl.

Self-priming pump 15 l/min, 12 or 24 volt direct current power supply, with built-in check valve on the discharge, nickel-plated brass body, stainless steel shaft, PTFE gears. Applications: water distribution, bilge pumping, booster set. Flow rate 15 l/min, pressure 2 bar,




Voltage

Attributs
Image Ref. Voltage Unit price Avail. Buy
PTFE gear pump 15 l/min with check valve UP3-PV
605625 12 Vcc
€218.33
Available
PTFE gear pump 15 l/min with check valve UP3-PV
605626 24 Vcc
€218.33
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Applications:
- Water supply pump, watering, portable pump.
- Emptying boat bilges, emptying cellars, emptying sea water.
- Water transfer, low pressure boosting with a bladder pressure tank.
- Transfer of thin oils, antifreeze, etc.
- The pump can be installed in any position.

Specifications:
- 12 or 24 volt DC power supply, powered by battery or DC power supply.
- PTFE gears (able to run dry for a short period).
- Check valve at the pump discharge.
- In-line filter on the suction side + ribbed fittings on the suction and discharge sides.
- Operating temperature: -10°C to +60°C.
- Maximum pumped liquid temperature: 40°C.

ModelUP3-PV-12 UP3-PV-24
Reference 605625 605626
Voltage (V DC) 12 24
Power (W) 120
Current (A) 6 3
Fuse (A) 10 5
Flow rate (l/min) 15
Pressure (bar) 2
Priming (m) -1.5
SUCT-DISCH ports 3/8"
Weight (Kg) 1.6
