Pompe forage 4" tout inox Calpeda 4SDXM 40 mono (8 m3/h)
Pompe forage 4" tout inox Calpeda 4SDXM 40 mono (8 m3/h)
Pompe forage 4" tout inox Calpeda 4SDXM 40 mono (8 m3/h)
Pompe forage 4" tout inox Calpeda 4SDXM 40 mono (8 m3/h)

Calpeda 4SDXM 8 MONO 4" borehole pump

508180
Delivery 3 to 5 days
$1,096.81

$1,096.81 tax excl.

4" (DN98mm) submersible borehole pump, all stainless steel 304 construction, Calpeda hydraulics, single-phase Calpeda motor. Nominal flow rate 8.0 m3/h and max flow rate 10.8 m3/h. Available from 0.75 to 2.20 Kw.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
Calpeda 4SDXM 8 MONO 4" borehole pump
508180 0.75 Kw
$1,096.81
Available
Calpeda 4SDXM 8 MONO 4" borehole pump
508181 1.10 Kw
$1,247.64
Available
Calpeda 4SDXM 8 MONO 4" borehole pump
508182 1.50 Kw
$1,482.28
Available
Calpeda 4SDXM 8 MONO 4" borehole pump
508183 2.20 Kw (1)
$1,834.22
Available
Calpeda 4SDXM 8 MONO 4" borehole pump
508252 2.20 Kw
$1,655.46
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- For water supply.
- For civil and industrial applications.
- For fire services.
- For irrigation.

Specifications:
- Submersible electric pumps for 4” (DN98mm) boreholes.
- All 304 stainless steel construction, jacket, body, diffuser, impeller, ring, shaft, delivery, suction, basket and screws.
- Pump and motor coupling to NEMA standard.
- Check valve built into the delivery body.
- CALPEDA 4" submersible 304 stainless steel motor with a 1.5 m cable lead.
- Water temperature up to 30°C.
- Maximum quantity of sand in the water, 50 g/m3.
- Voltage variation: +6% / -10%.
- Maximum water temperature: 35°C.
- Cooling: minimum flow velocity 0.08m/s.
- Starts: 20/h maximum.
- Insulation: Class F.
- Protection: IP68.
- Continuous duty.

Model Reference

Power

(Kw)

Current

(A)

Voltage

(V)

Stages

(Number)
4SDXM 8-5 508180 0.75 5.6 230 V / Single-phase
 5
4SDXM 8-7
 508181 1.10 8.0 7
4SDXM 8-10
 508182 1.50 10.8 10
4SDXM 8-12 508252 2.20 14.7 12
4SDXM 8-15
 508183 2.20 14.7 15

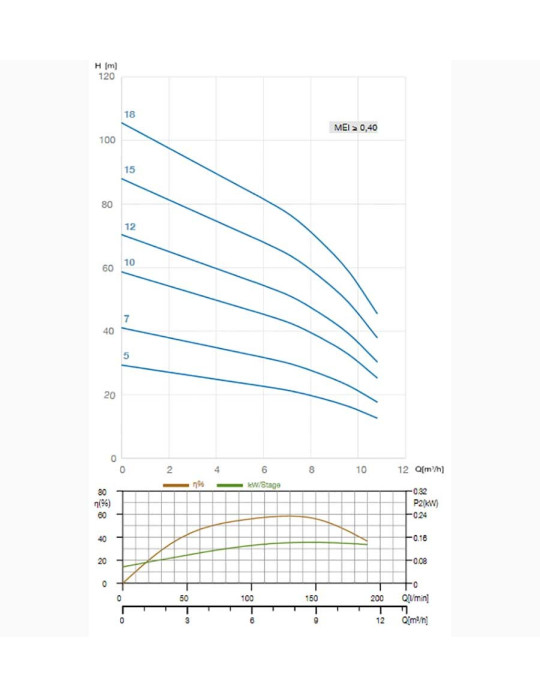

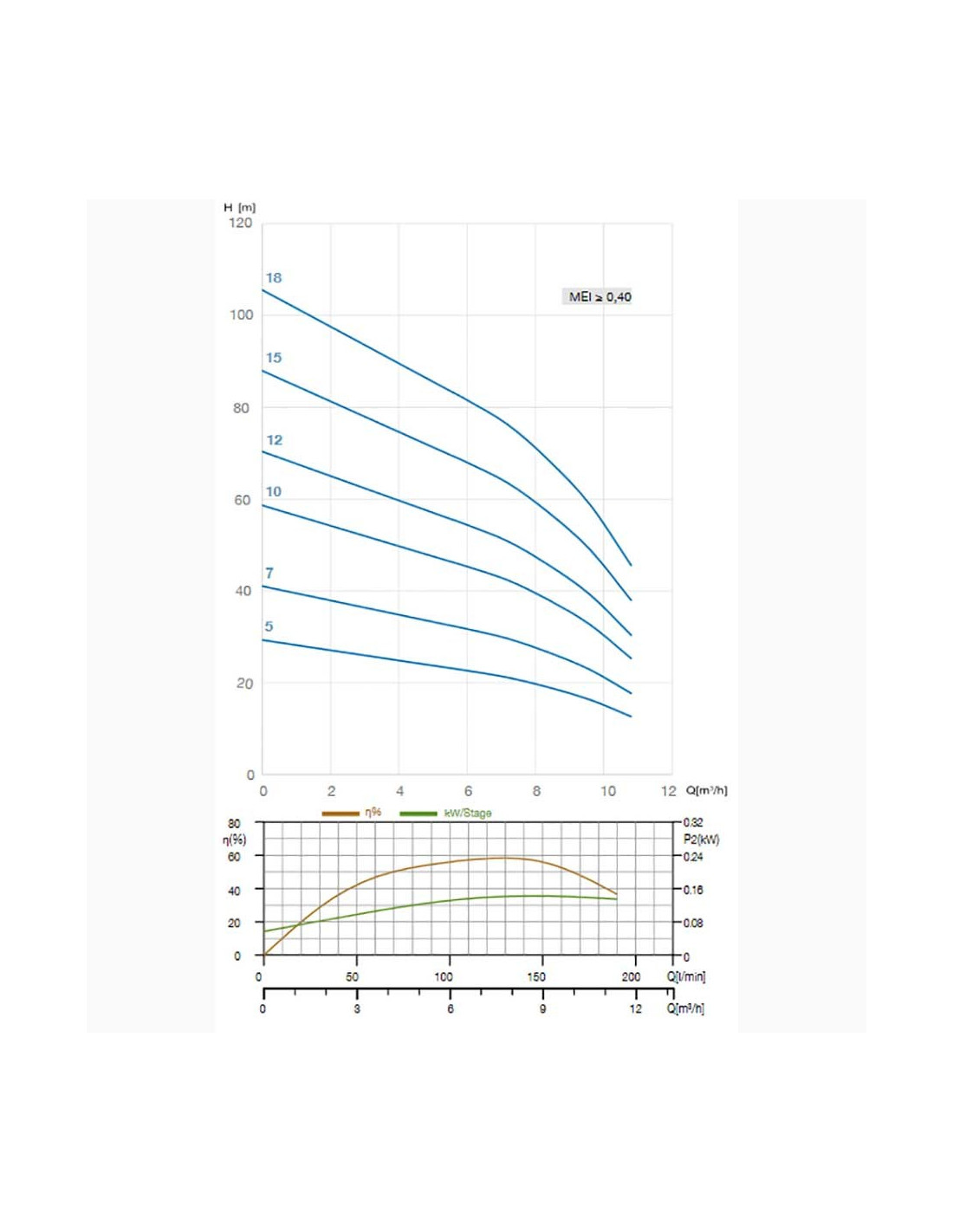

Model m3/h 0 2.4 3.0 4.2 5.4 7.2 9.6 10.8
l/min 0 40 50 70 90 120 160 180
4SDXM 8-5 H (m) 30 28 26 25 23 21 15 11
4SDXM 8-7 41 39 38 36 34 32 24 18
4SDXM 8-10 58 54 52 49 47 43 32 25
4SDXM 8-12 71 65 64 60 56 52 40 31
4SDXM 8-15 88 80 78 74 70 64 49 38
