Pompe forage 4" Calpeda 4SDP 6 TRI
Pompe forage 4" Calpeda 4SDP 6 TRI
Pompe forage 4" Calpeda 4SDP 6 TRI
Pompe forage 4" Calpeda 4SDP 6 TRI

4" borehole pump Calpeda 4SDP 6 TRI

504509
Delivery 3 to 5 days
$893.84

$893.84 tax excl.

Submersible pumps for 4-inch boreholes, three-phase power supply, max flow rate 8.4 m3/H, floating impeller pump, for use with clean liquids, with maximum sand content allowed in the pump 150 g/m3. Power from 0.75 to 5.50 kW.



PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
4" borehole pump Calpeda 4SDP 6 TRI
504509 0.75 Kw
$893.84
Available
4" borehole pump Calpeda 4SDP 6 TRI
504510 1.10 Kw
$977.63
Available
4" borehole pump Calpeda 4SDP 6 TRI
504511 1.50 Kw
$1,083.78
Available
4" borehole pump Calpeda 4SDP 6 TRI
504512 2.20 Kw
$1,321.20
Available
4" borehole pump Calpeda 4SDP 6 TRI
504513 3.00 Kw
$1,619.15
Available
4" borehole pump Calpeda 4SDP 6 TRI
504515 4.00 Kw
$1,899.40
Available
4" borehole pump Calpeda 4SDP 6 TRI
504516 5.50 Kw
$2,346.32
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- For water supply.
- For civil and industrial applications.
- For fire services.
- For irrigation.

4SDP 6 pump specifications:
- Calpeda 4" (DN 96) submersible motor, three-phase 400V supply, 50Hz, 2900 rpm, IP 68 (continuous duty).
- Calpeda 4" multi-stage hydraulic section.
- NORYL impeller and diffuser.
- Liquid temperature up to + 30°C.
- Non-return check valve built into the pump discharge.

Operating limits:
- Maximum water temperature: + 35°C.
- Maximum quantity of sand in the water: 150 g/m3.
- Starts: 20/h maximum at regular intervals.
- Continuous duty.

 Model Reference Power
(kw)		 Current
(A)
 Voltage
(V)		 Stages
(number)
4SDP 6-7
 504509 0.75 2.2 400
/ Tri
 7
4SDP 6-10
 504510 1.10 2.8 10
4SDP 6-14
 504511 1.50 3.7 14
4SDP 6-20
 504512 2.20 5.5 20
4SDP 6-27
 504513 3.00 7.4 27
4SDP 6-36
 504515 4.00 9.4 36
4SDP 6-49
 504516 5.50 13 49

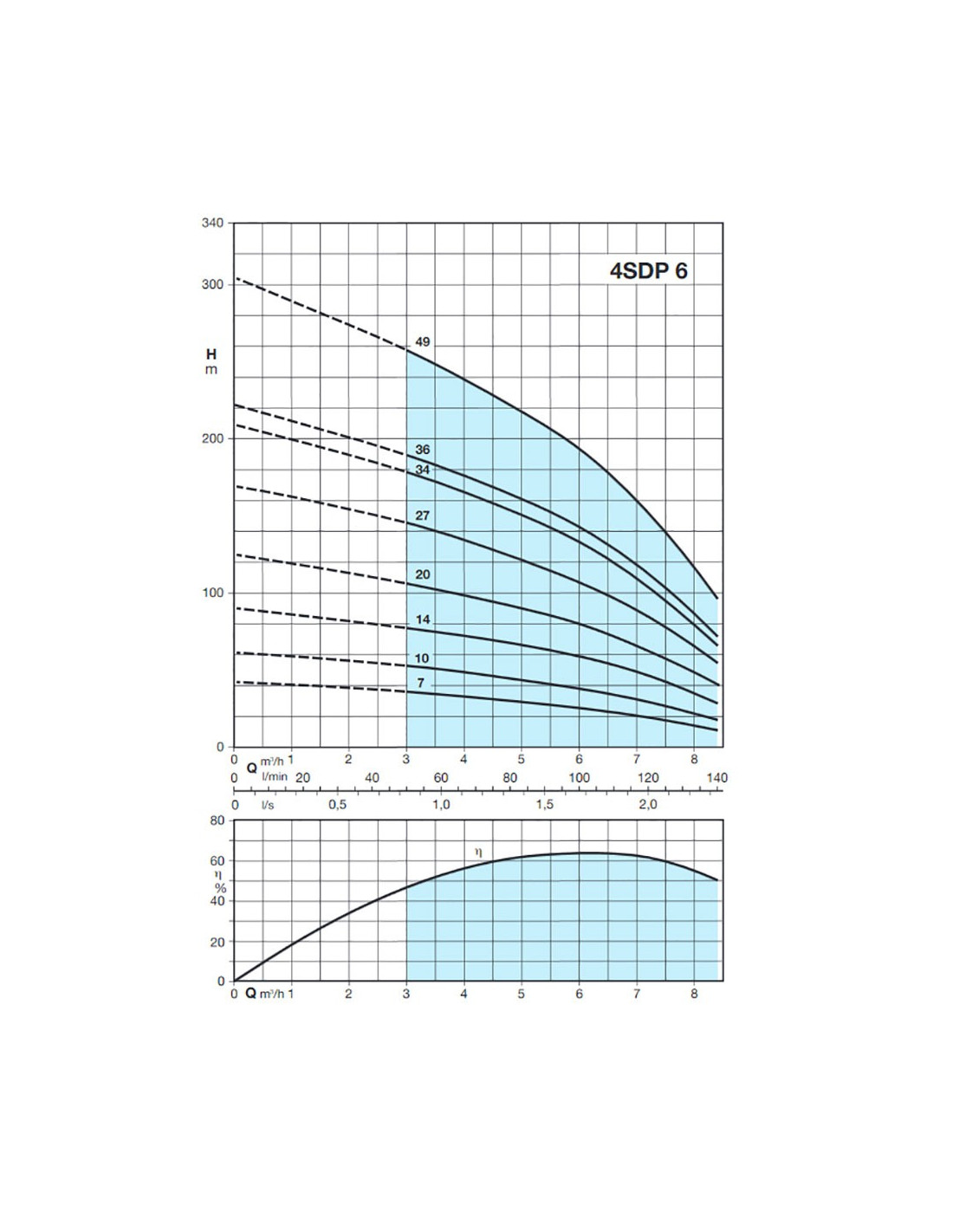

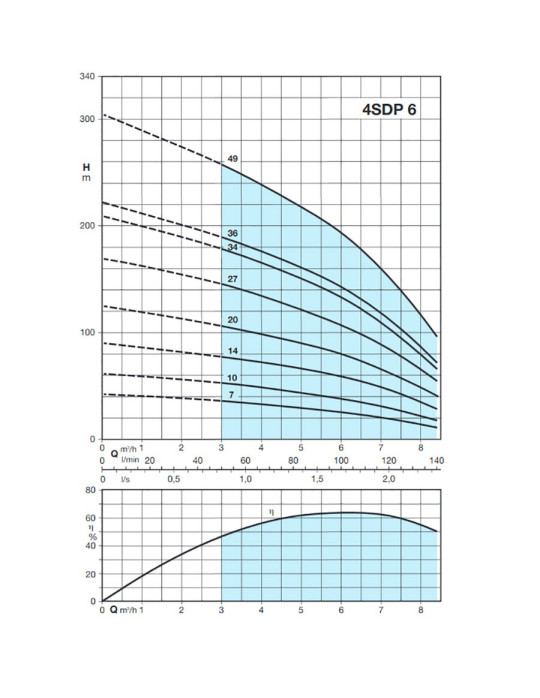

Flow rate m3/h  0 3 4.2 5.4 6 7.2 8.4
l/min 0 50 70 90 100 120 140
4SDP 6-7


Height
(m)

 42 36 32 28 25 19 11
4SDP 6-10 62 53 48 41 38 29 18
4SDP 6-14 90 77 71 63 59 46 28
4SDP 6-20 125 107 97 86 80 62 40
4SDP 6-27 169 145 131 115 107 84 55
4SDP 6-36 221 190 173 154 143 112 72
4SDP 6-49 302 257 234 209 193 151 96

Customs number: 84138100 - Country of origin: France
