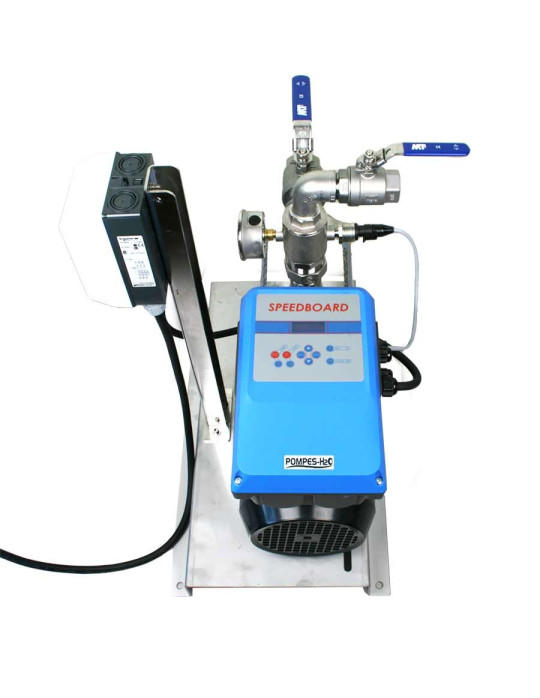

9 SHI three-phase multistage variable speed booster set

600689
Delivery 1 to 2 weeks
€4,058.33

€4,058.33 tax excl.

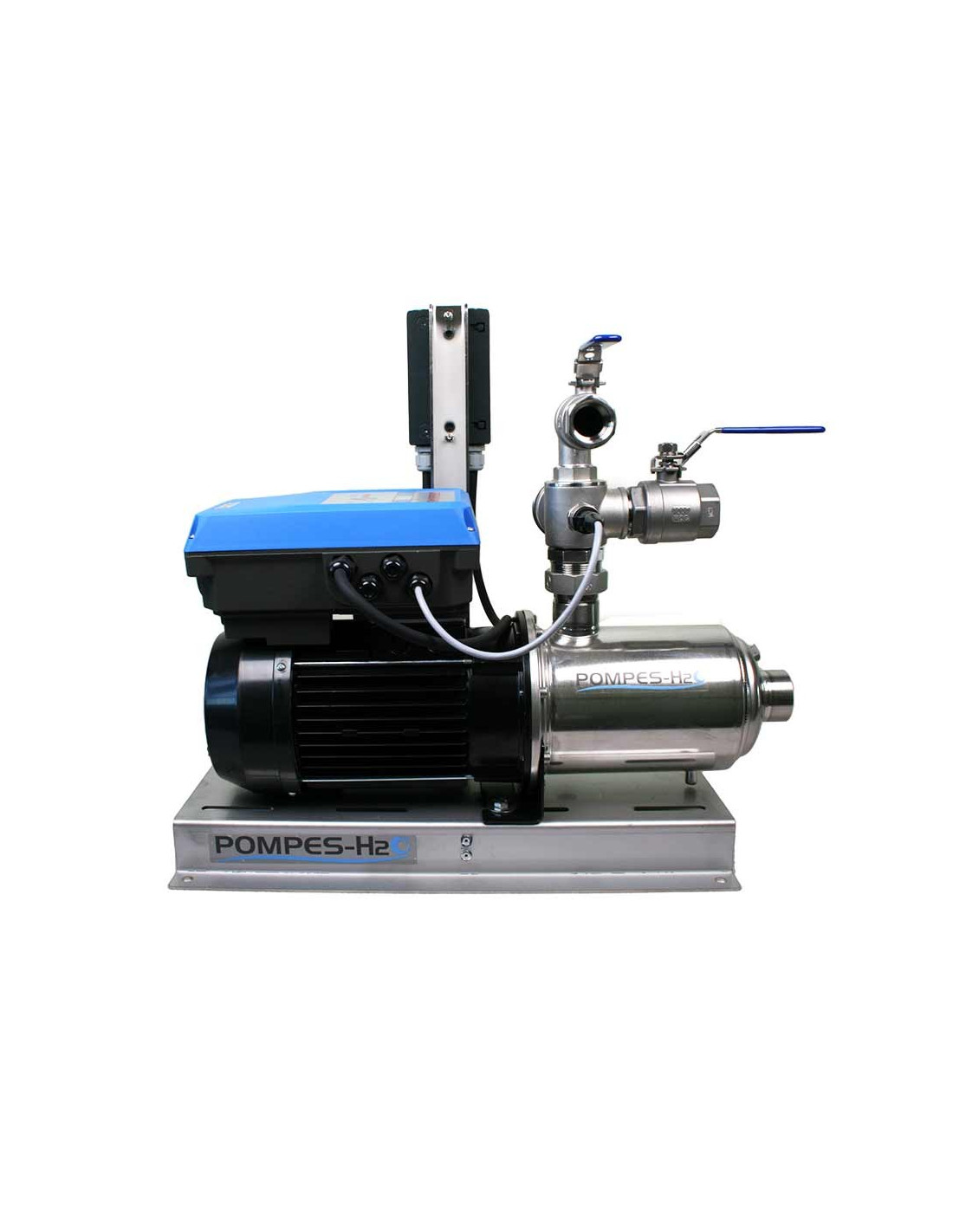

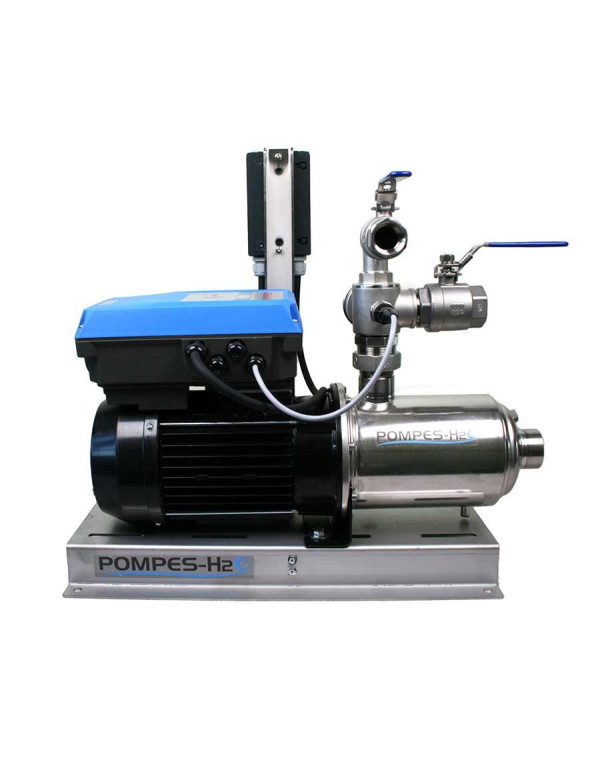

All stainless steel variable-speed booster set, max flow rate 14 m3/h, all 304 stainless steel multistage centrifugal pump, mounted on stainless steel chassis, with speed controller built into the motor, variable speed, according to flow rate, dry-run protection, soft start and stop.

Description

Specifications:
- Horizontal multistage pump, entirely in 304 stainless steel, higher efficiency, IE3 motor.

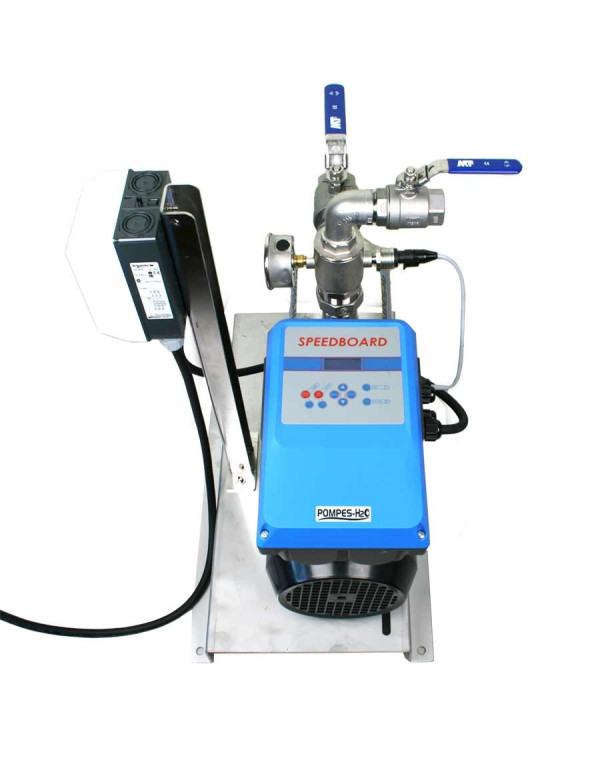

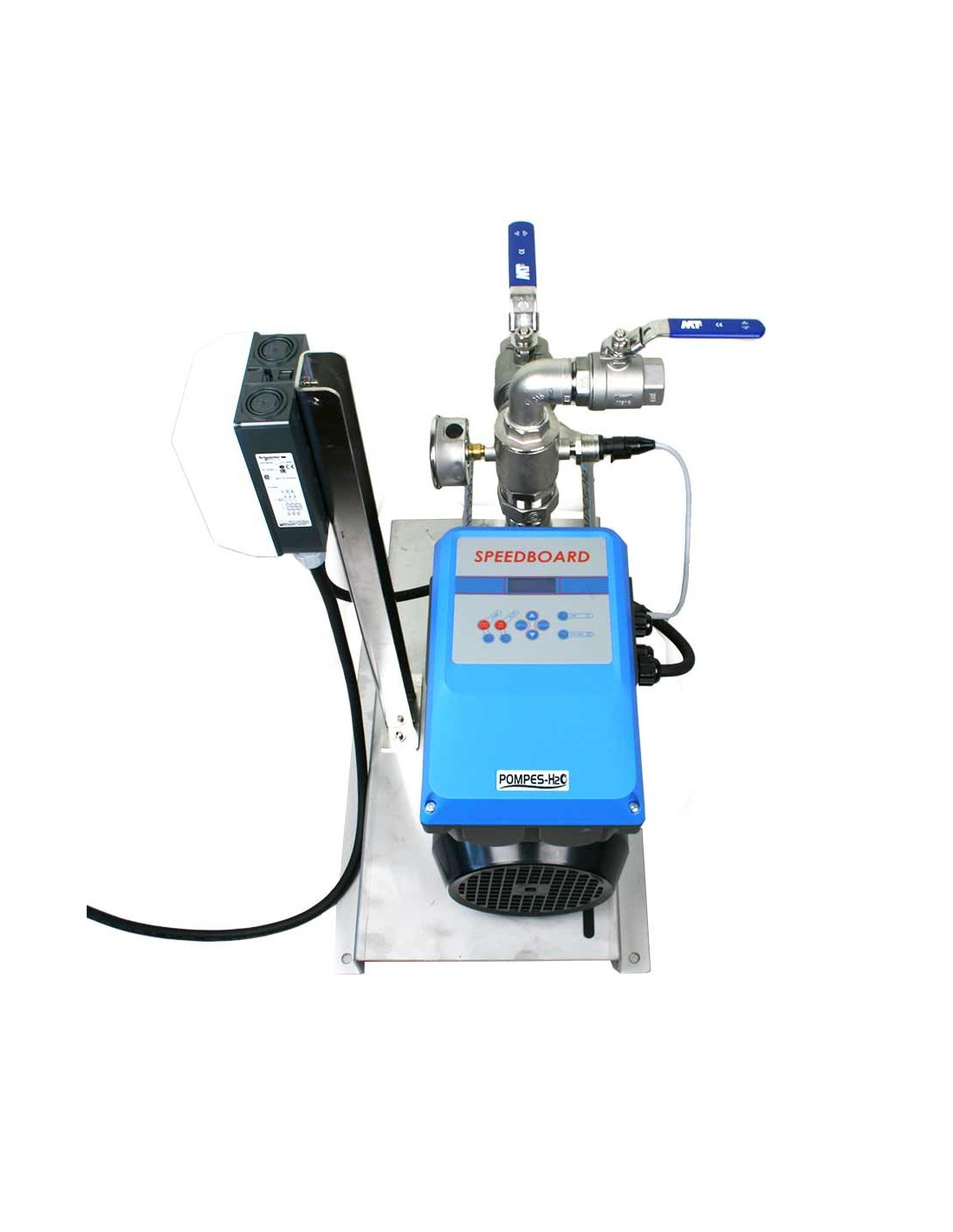

- SPEEDBOARD variable speed drive, for complete control and management of the pump (mounted on the pump).
- 304 stainless steel omega frame, for pump and post mounting.
- 4-20 mA pressure sensor, at the pump discharge.

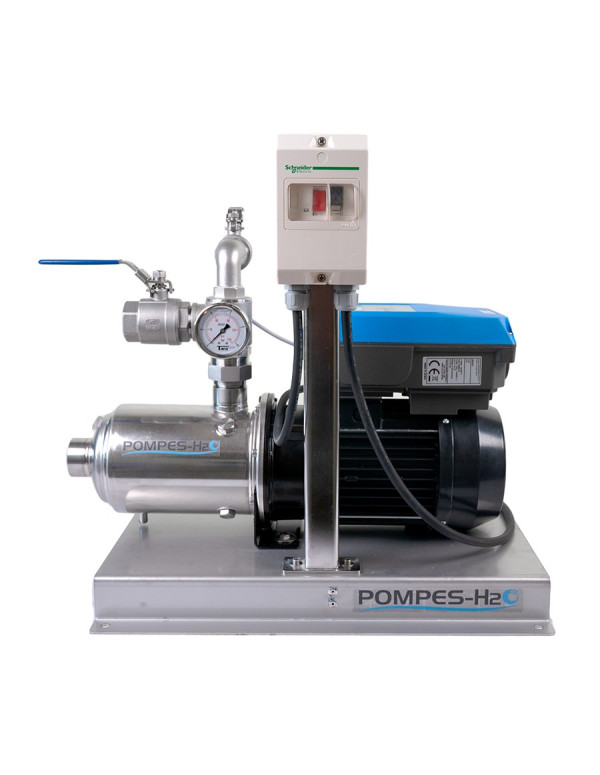

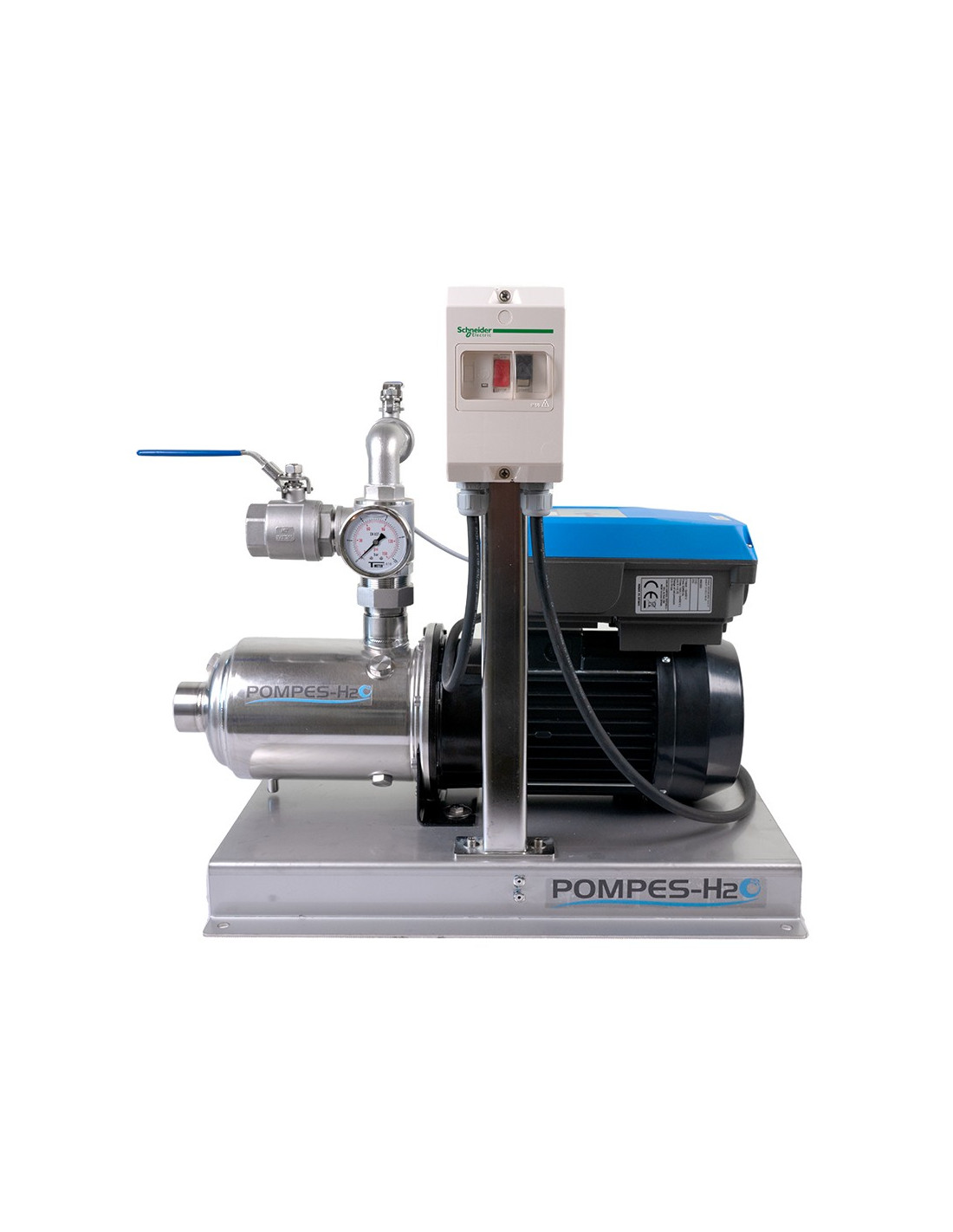

- Axial stainless steel pressure gauge 0-6 or 0-10 bar, (depending on model).

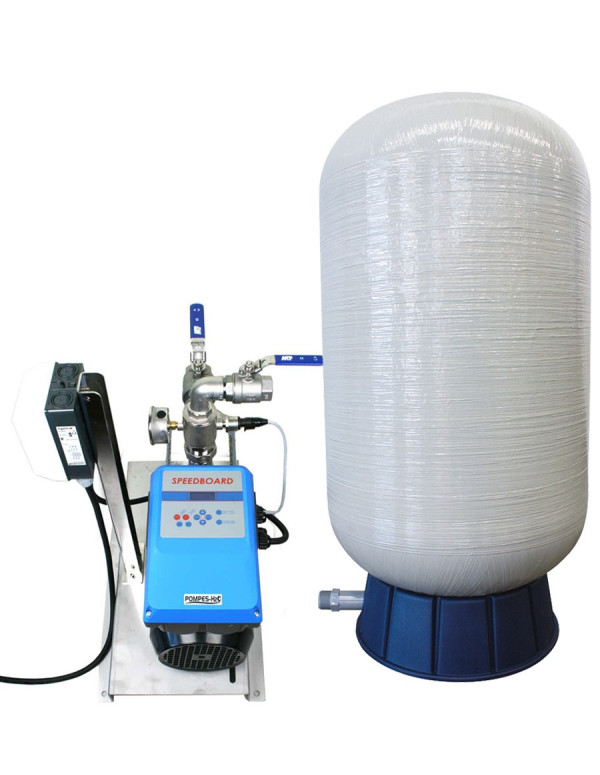

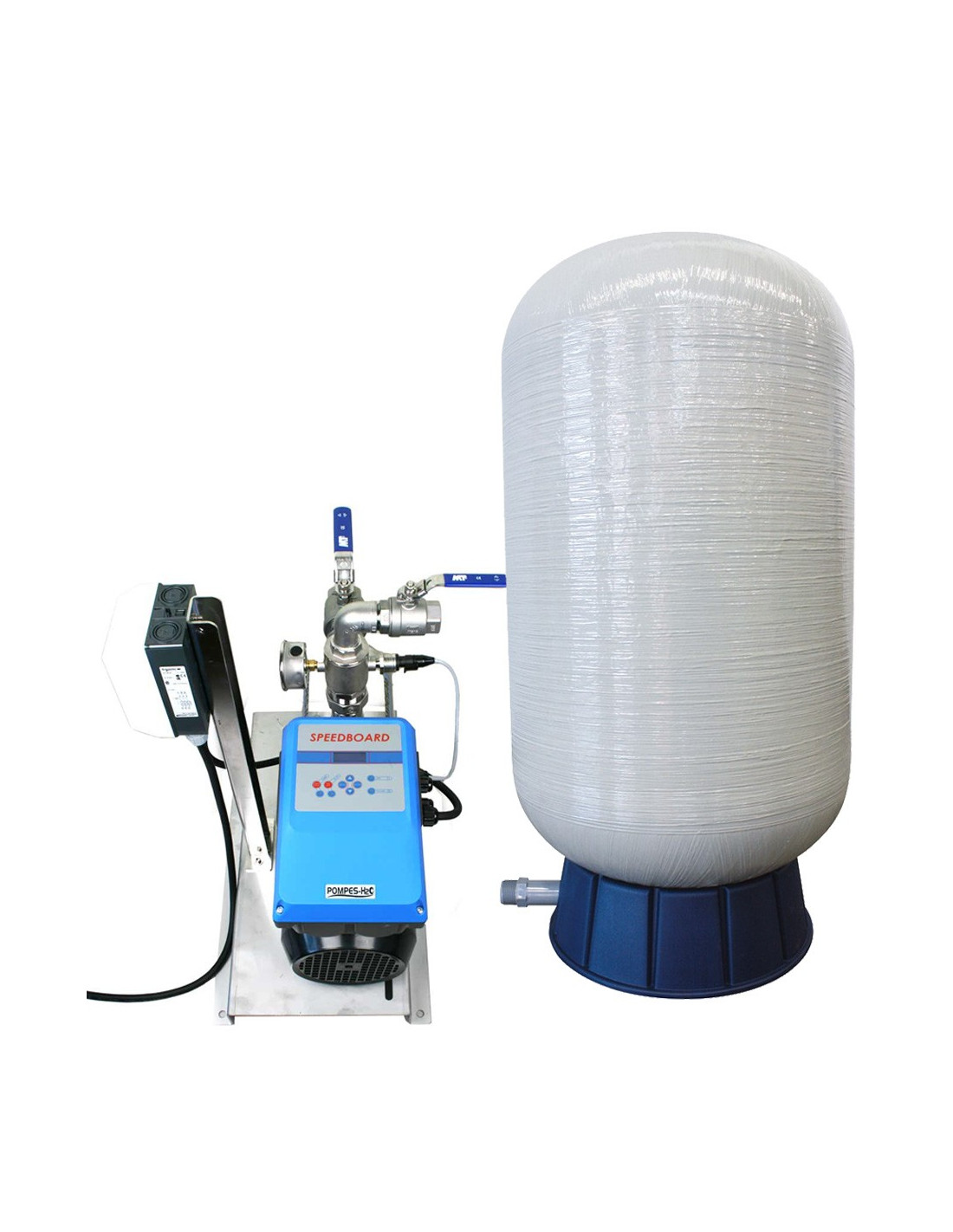

- C2B-100 vertical diaphragm tank, capacity 100L, PS 8.6 bar.
- 1-piece 316 stainless steel valve, (mounted on the tank).
- 2-piece 316 stainless steel valves, flat handles, (mounted on the suction and discharge).
- 316 stainless steel check valve, with 1" 1/4 tapping.
- 304 stainless steel post, for motor circuit breaker.
- Box + Motor circuit breaker.
- Electric cable set.
- Stainless steel bolts.
- Assembled, connected and tested in the workshop.
- 2-year warranty.

Model 9-6 SHI
Reference 600689
Power (Kw) 2.20
Power supply (V) 400 three-phase
Max flow rate (m3/h) 14.4
Max pressure (bar) 6.0
Start/stop preset (bar) 4.0 to 5.0
Suction port 1" 1/2
Discharge port 1" 1/4
Dimensions Length x Width x Height (cm) 60 x 40 x 92
Weight (Kg) 42
