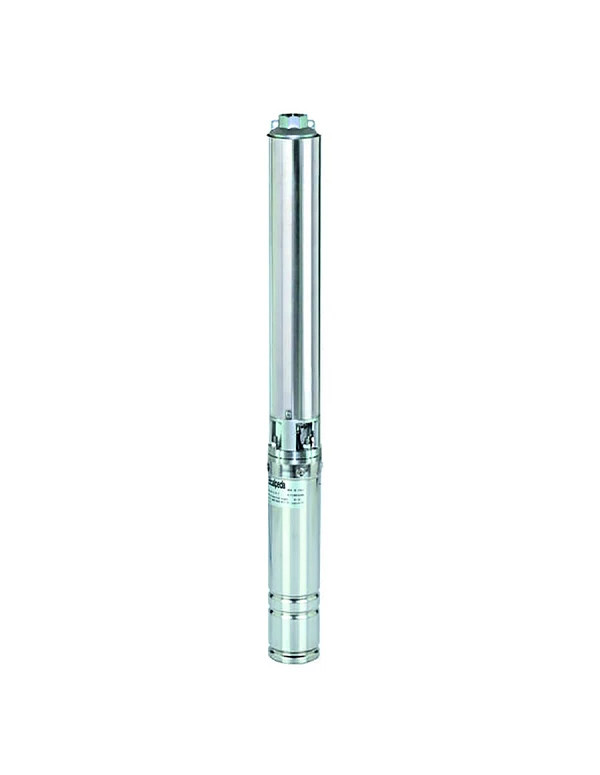

Calpeda 4SDPM 16 MONO 4" borehole pump

504533
Delivery 3 to 5 days
£1,096.07

£1,096.07 tax excl.

Submersible pumps for 4 inch boreholes, single phase power supply, max flow rate 24.0 m3/H, floating turbine pump, use for clean liquids, with max quantity of sand admitted in the pump 150 g/m3. Power of 2.20 Kw.

Description

Use:
- For water supply.
- For civil and industrial applications.
- For fire services.
- For irrigation.

4SDP 16 pump specifications:
- Calpeda 4" (DN 96) submersible motor, single-phase 230V supply, 50Hz, 2900 rpm, IP 68 (continuous duty).
- Calpeda 4" multi-stage hydraulic section.
- NORYL impeller and diffuser.
- Liquid temperature up to + 30°C.
- Non-return check valve built into the pump discharge.

Operating limits:
- Maximum water temperature: + 35°C.
- Maximum quantity of sand in the water: 150 g/m3.
- Starts: 20/h maximum at regular intervals.
- Continuous duty.

 Model Reference Power
(kw)		 Current
(A)
 Voltage
(V)		 Stages
(number)
4SDPM 16-8
 504533 2.20 5.5 230
/ single-phase
 8

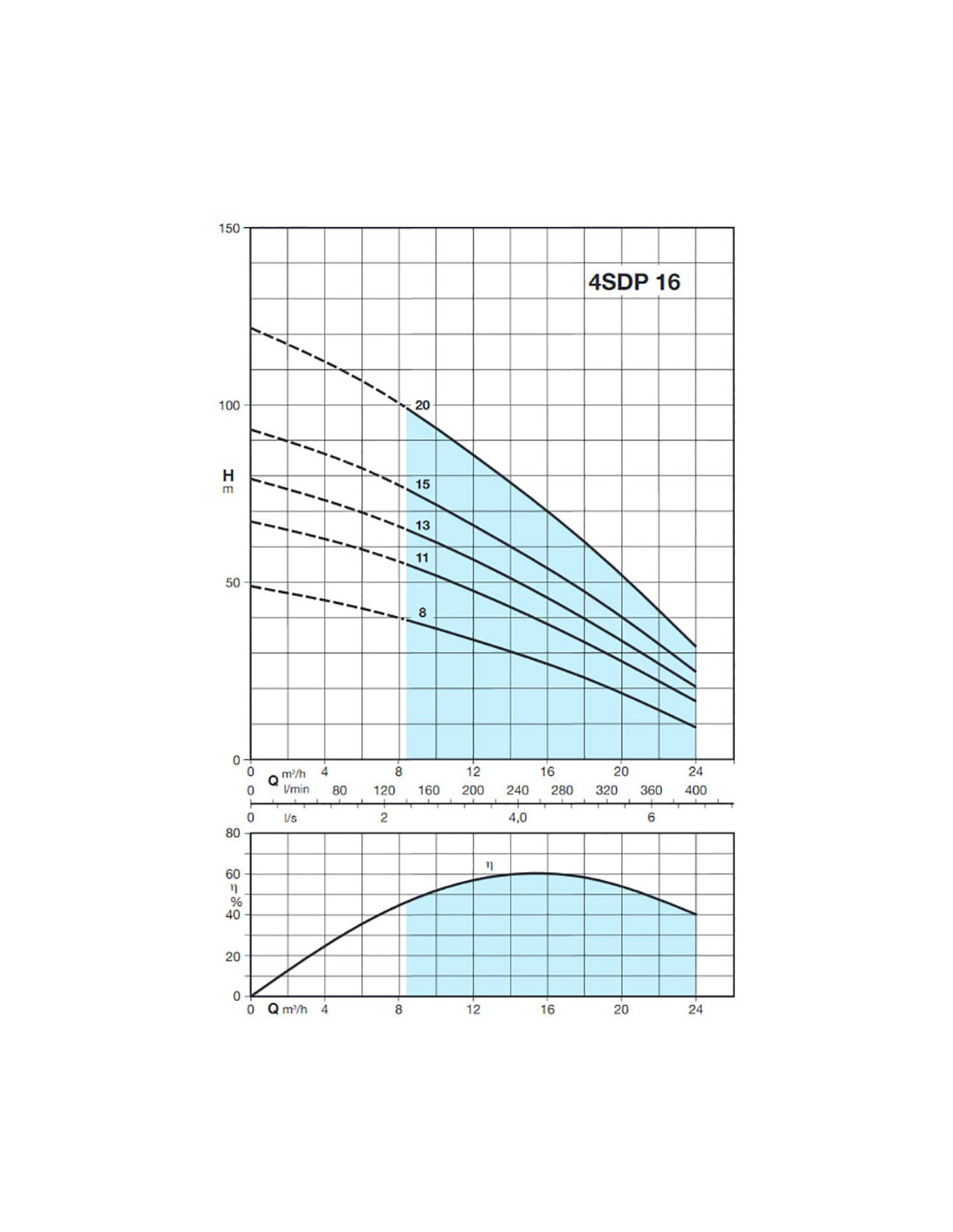

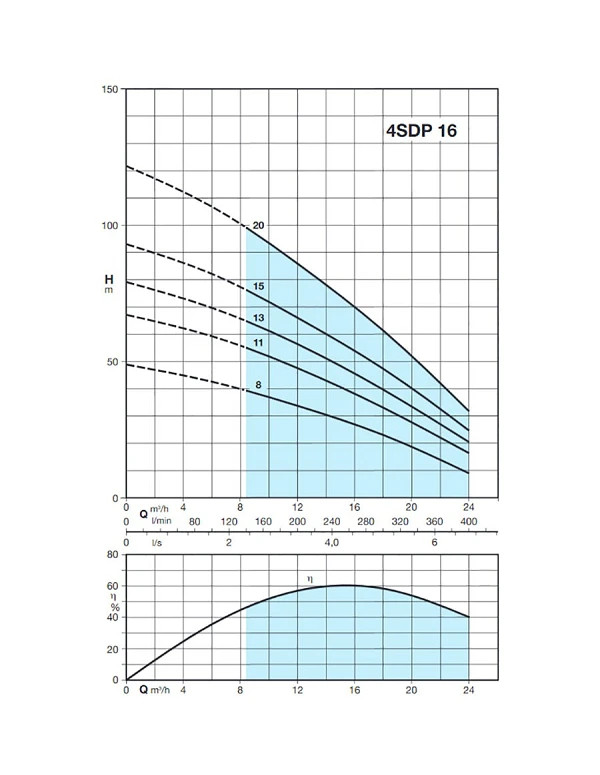

Flow rate m3/h  0 8.4 9.6 10.8 12.0 15.6 18.0 21.6 24.0
l/min 0 140 160 180 200 260 300 360 400
4SDP 16-8


Height
(m)

 49 39 38 36 34 28 23 15 9
