Use:
- Transfer of food liquids, alcohol.
- Oenology and oil sector (wine, must, vinegar and oil).
- Food sector (fruit juice, beer, syrups, brine, etc.).
- Cheese-making sector (milk, whey, etc.).
- Chemical sector (acids, solvents, photographic liquids, detergents, inks, etc.).
- Cosmetics and pharmaceutical sector.
- Agricultural sector (fungicide products, liquid fertilisers).
- Transfer of hydrocarbons, petrol.

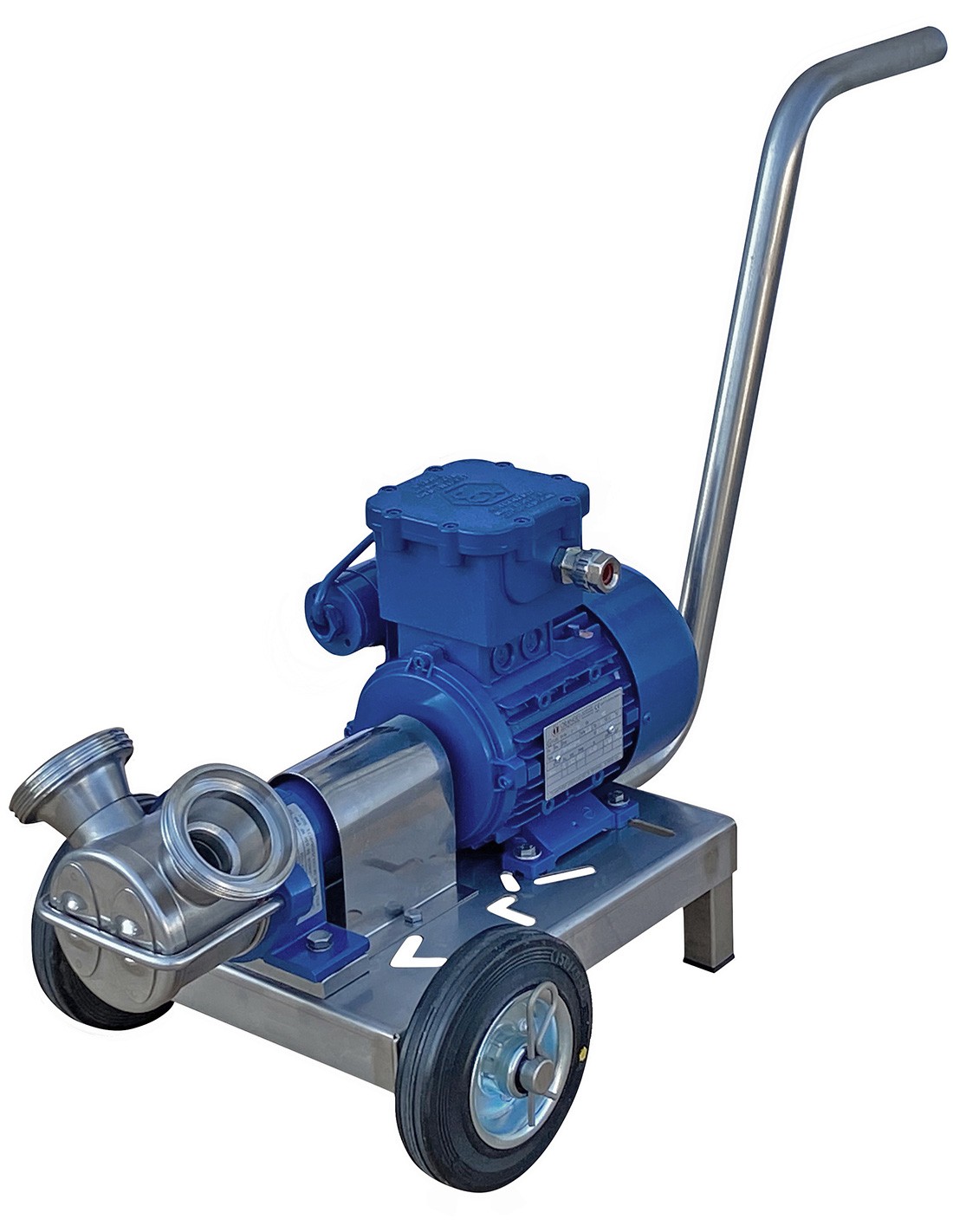

Specifications:
- 316 stainless steel pump body and impeller.
- 316 stainless steel shaft.
- Long motor-pump coupling.
- Mechanical seal: ceramic, graphite, VITON, other materials available: ceramic, graphite, EPDM and stainless steel graphite PTFE.
- Single-phase or three-phase motor depending on model.
- ATEX certification: II 2G Ex c IIC T4 X Gb & II 2G Ex c IIB T4 X Gb.
- Mounted on stainless steel trolley.
Single-phase models on stainless steel trolley.
| Model | GR ADPE SPECIAL NEOS |
GR ADPE SPECIAL JUNIOR |
GR ADPE SPECIAL SENIOR |
GR ADPE SPECIAL MASTER |
|---|---|---|---|---|
| Reference | 607238 | 607239 | 607240 | 607241 |
| Power supply (V) | Single-phase 230V |
|||
| Power (Kw) | 0.25 | 0.55 | 0.75 | 1.50 |
| Speed (rpm) | 2800 | 2800 | 1400 | 1400 |
| Flow rate (l/min) | 29 | 58 | 120 | 230 |
| Head (m) | 18 | 18 | 18 | 22 |
| Ports |
BSP 3/4" - 20 | BSP 1" - 25 | BSP 1" 1/2 - 40 | BSP 2" - 50 |
| Weight (Kg) | 10.0 | 15.0 | 25.8 | 36.1 |
Three-phase models on stainless steel trolley.
| Model | GR ADPE SPECIAL NEOS |
GR ADPE SPECIAL JUNIOR |
GR ADPE SPECIAL SENIOR |
GR ADPE SPECIAL MASTER |
|---|---|---|---|---|
| Reference | 607242 | 607243 | 607244 | 607245 |
| Power supply (V) | Three-phase 400V |
|||
| Power (Kw) | 0.25 | 0.55 | 0.75 | 1.50 |
| Speed (rpm) | 2800 | 2800 | 1400 | 1400 |
| Flow rate (l/min) | 29 | 58 | 120 | 230 |
| Head (m) | 18 | 18 | 18 | 22 |
| Ports |
BSP 3/4" - 20 | BSP 1" - 25 | BSP 1" 1/2 - 40 | BSP 2" - 50 |
| Weight (Kg) | 10.0 | 15.0 | 25.8 | 36.1 |
Three-phase models on stainless steel trolley.
| Model | GR ADPE SPECIAL 60 stainless steel 2" |
GR ADPE NAUTIC 5.5 70 stainless steel 2" 1/2 |
GR ADPE NAUTIC 7.5 70 stainless steel 2" 1/2 |
GR ADPE NAUTIC 80 stainless steel 3" |
|---|---|---|---|---|
| Reference | 607379 | 607380 | 607381 | 607382 |
| Power supply (V) | Three-phase 400V |
|||
| Power (Kw) | 4.00 | 5.50 | 7.50 | 15.00 |
| Speed (rpm) | 1400 | 1400 | 1400 | 1400 |
| Flow rate (l/min) | 350 | 500 | 500 | 900 |
| Head (m) | 30 | 35 | 35 | 40 |
| Ports |
BSP 2" | BSP 2" 1/2 | BSP 2" 1/2 | BSP 3" |
| Weight (Kg) | 54.2 | 77.1 | 91.1 | 175.3 |
