Fitting kit for 1"1/4 submersible pump outlet

Reference 508319

Delivery 2 to 4 days

€81.67

€81.67 tax excl.

Set for connecting a submersible well pump, vertical outlet, clear water, available for pumps with 1" 1/4 outlet.

Diameter (mm)

Attributs

Image	Ref.	Diameter (mm)	Unit price	Buy
	508319	25	€81.67	Sum.:
	508320	32	€93.67	Sum.:
	508321	40	€103.33	Sum.:
	508322	50	€124.17	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

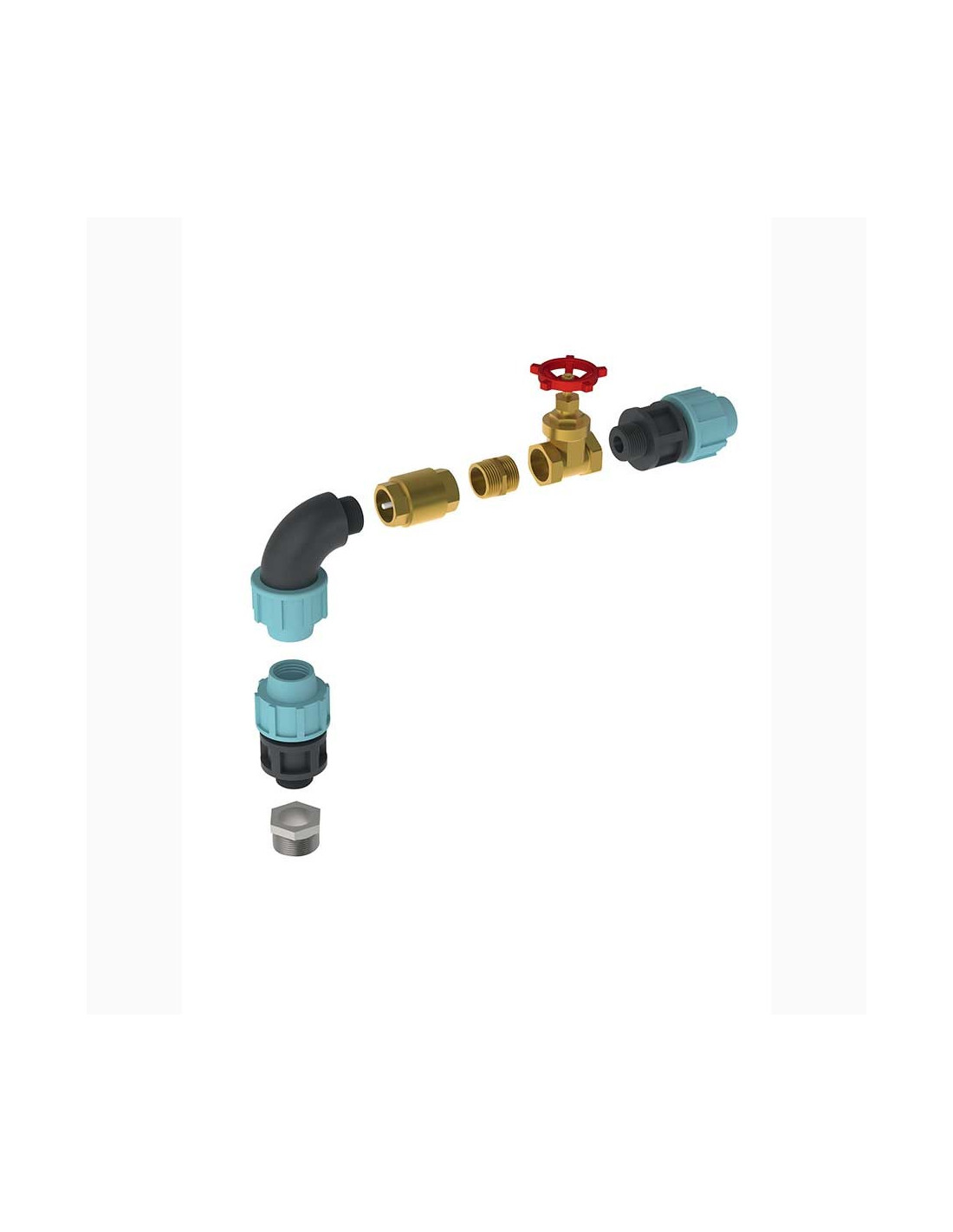

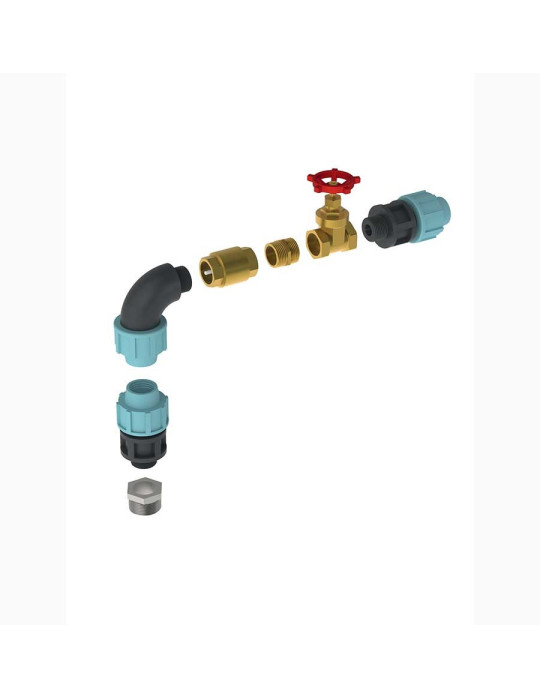

The kit consists of:

- 1 reducer.
- 1 fitting on the pump.
- 1 elbow at the top of the borehole.
- 1 brass check valve.
- 1 brass nipple.
- 1 brass regulating valve.
- 1 outlet for PE pipe.

Model	KSF 25 - 1"1/4	KSF 32 - 1"1/4	KSF 40 - 1"1/4	KSF 50 - 1"1/4
Reference	508319	508320	508321	508322
Ø Hose mm	25	32	40	50
Ø Pump outlet	1"1/4
Max flow rate m3/h	4	6	10	15
