Module de contrôle CM MultiPower

CM MultiPower control module

504739
Delivery 1 to 2 weeks
€390.00

€390.00 tax excl.

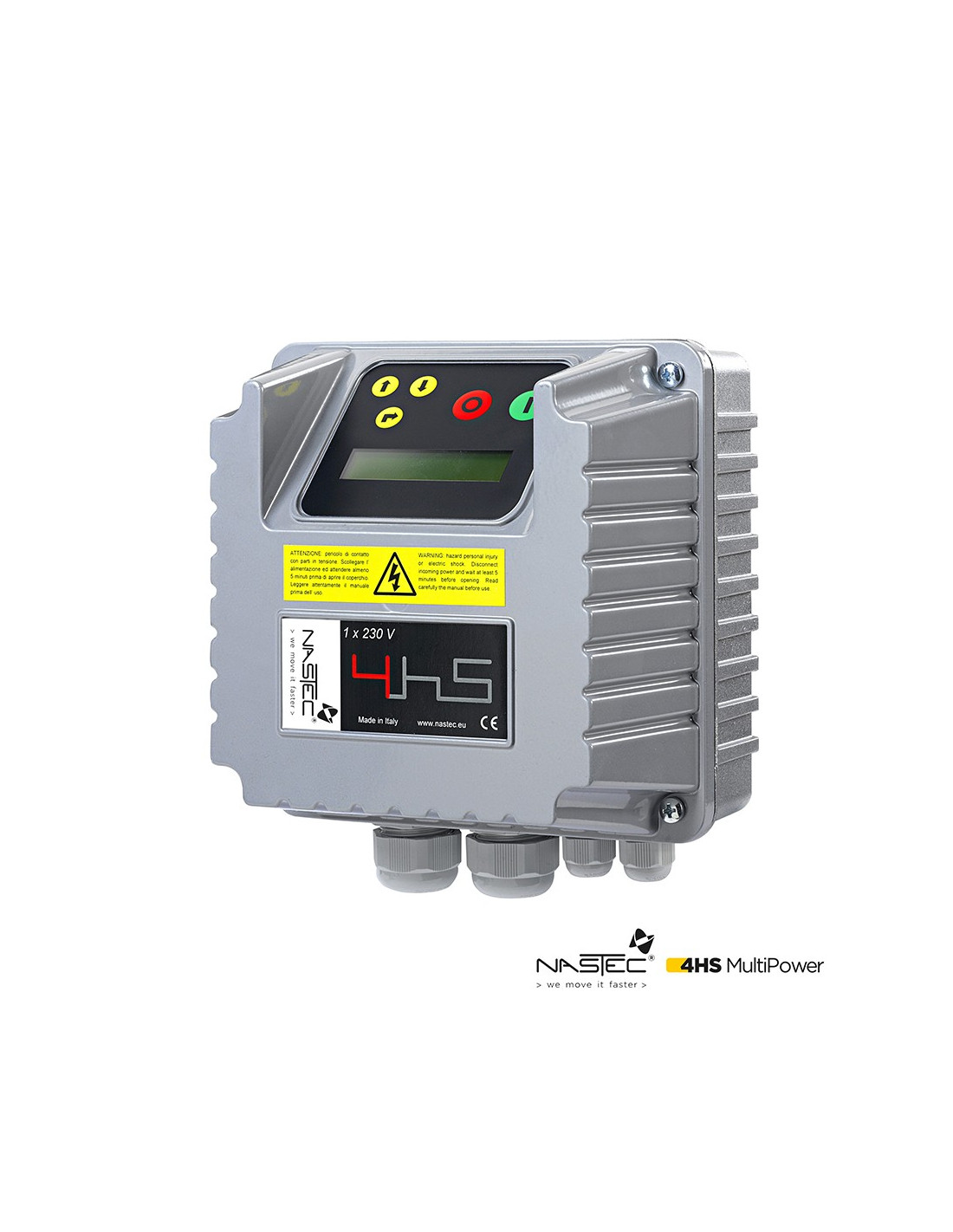

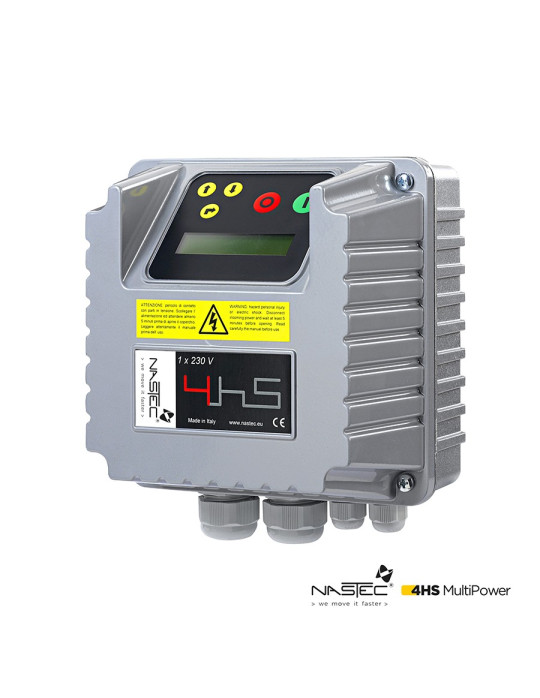

The MC MultiPower control module, entirely made of aluminium and with an IP55 protection rating, manages pump operation from the surface by adjusting the speed to keep the desired pressure constant whatever the water demand.

Description

How does the CM MultiPower control module work?

Simply connect the pressure sensor, included in the packaging, and carry out a quick configuration of the pump for the installation. During operation, the CM continuously monitors and provides information on the electrical, hydraulic and thermal parameters of the pump, providing full protection in the event of overvoltage, undervoltage, overload and dry running.

4HS MultiPower

Maximum temperature of the installation location 50°C
Degree of protection IP55
Materials Aluminium body, PVC labels, PA cable glands, PE display membrane.
Analogue inputs 2 inputs 4-20mA + 2 configurable inputs 4-20 or 0-10 V.
Digital inputs 4 inputs configurable as N.O. or N.C.
Digital outputs 2 relay outputs 5A, 250 VAC, configurable as N.O. or N.C.
User interface Backlit LCD display 16 characters x 2 lines, 5 keys, buzzer for audible signal.
Short-circuit protection By fuse.
Certification CE
