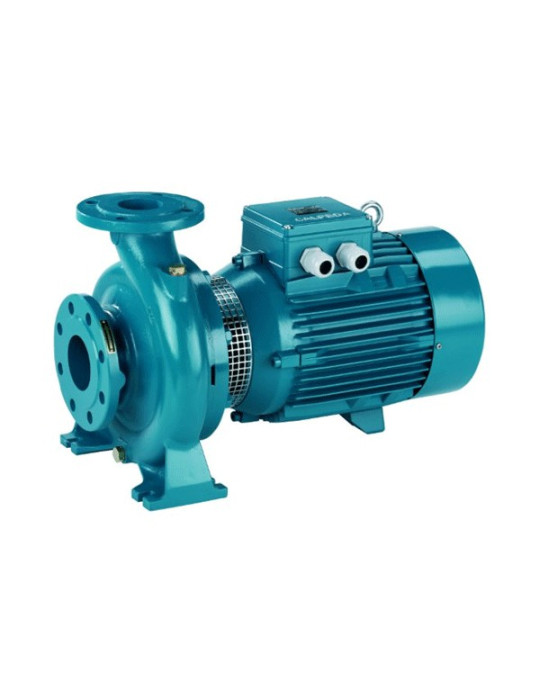

Calpeda NM 40 MONO monobloc centrifugal pump

603514
Delivery 3 to 5 days
$1,284.89

$1,284.89 tax excl.

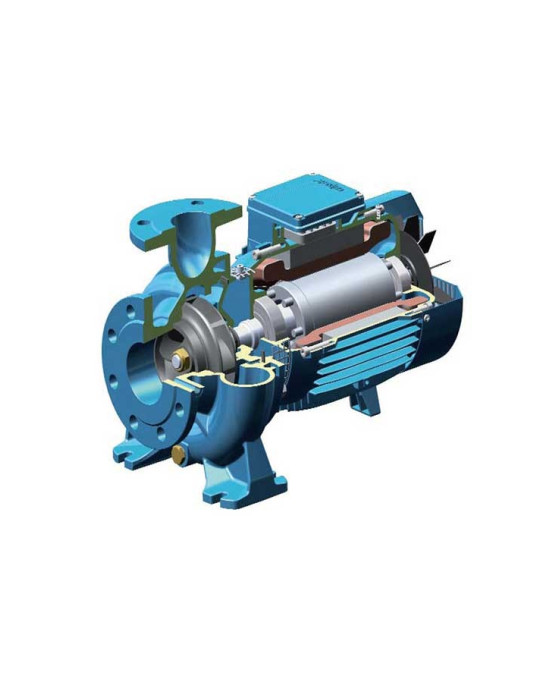

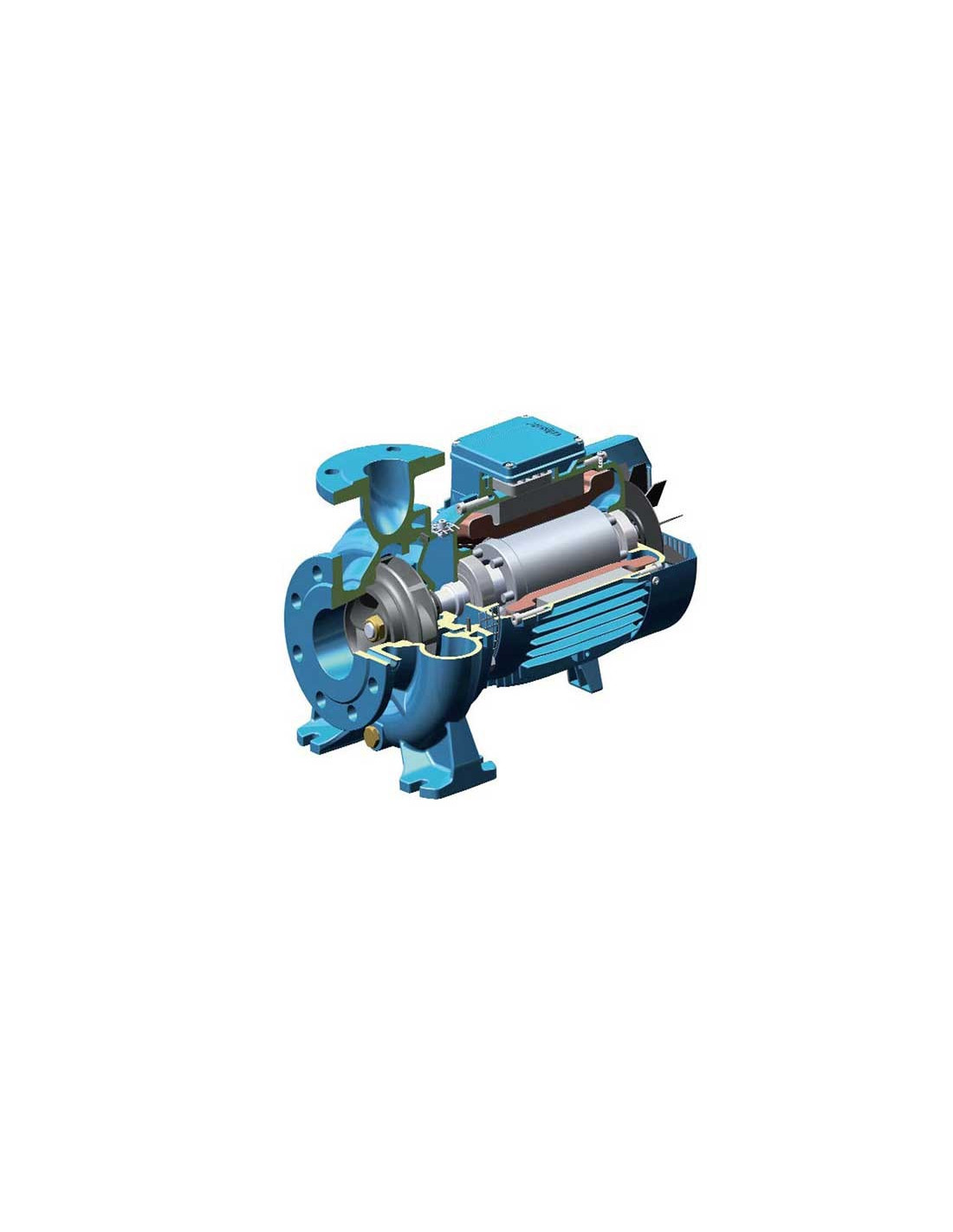

Monobloc centrifugal pump with direct motor-pump coupling and single shaft. Volute pump casing with axial suction and radial delivery port facing upwards. Single-phase 230V power supply. Flow rate 25 to 35 m3/h.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
Calpeda NM 40 MONO monobloc centrifugal pump
603514 1.10 Kw
$1,284.89
Available
Calpeda NM 40 MONO monobloc centrifugal pump
603515 1.50 Kw
$1,550.25
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Uses:
- For clean liquids without abrasive particles, not aggressive to the pump materials (with solid parts up to 0.2% max.).
- For water supply.
- For heating, air conditioning and cooling installations.
- For industrial applications.
- For fire-fighting service.
- For irrigation.

Limits of use:
- Liquid temperature from -10 °C to +90 °C.
- Ambient temperature up to 40° C.
- Manometric suction head up to 7 m.
- Maximum permitted final pressure in the pump body: 10 bar.
- Continuous duty.

Specifications:
- Pump body, lantern, cover: Cast iron GJL-200 EN 1561.
- Impeller: Brass P Cu Zn 40 Pb 2 UNI 5705.
- Shaft: AISI 303 steel.
- Mechanical seal: Hard carbon - ceramic - NBR.
- Counter-flanges: Fe 430B UNI 7070 steel.
- Threaded flanges EN 1092-1, PN 16.

Model Reference Power
(Kw)		 Voltage
single-phase (V)		 Current
(A)		 DN
Suct		 DN
disch		 Weight
(Kg)
NMM 40/12F 603514 1.10 230 5 65 40 27
NMM 40/12C 603515 1.50 7.5 29

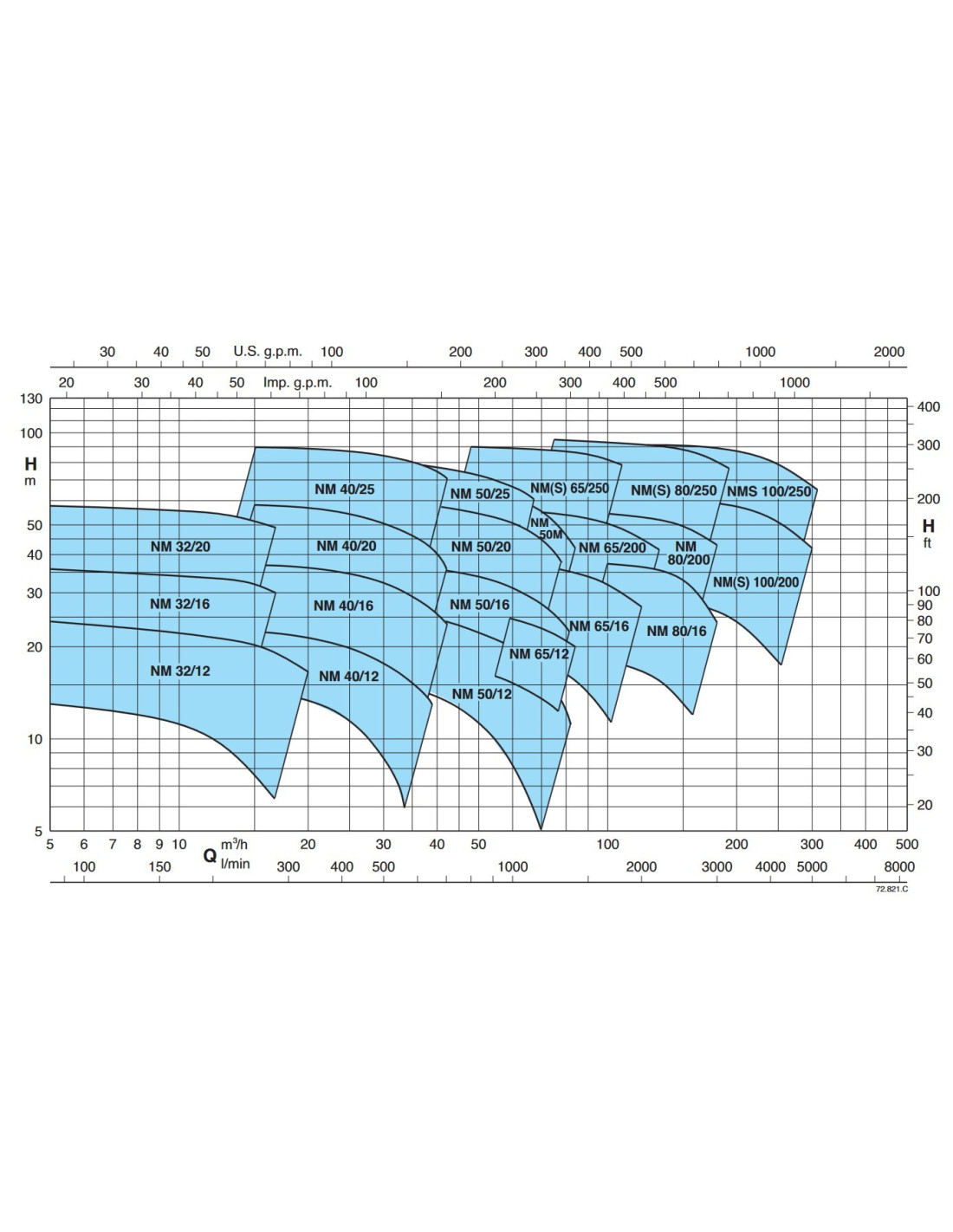

Flow rate m3/h 15 16.8 18.9 21 24 27 30 33 37.8 39
l/min 250 280 315 350 400 450 500 550 630 650
40/12F H
(m)		 14 13.5 13 12 11 9.5 8 6 - -
40/12C 17.5 17 16.5 16 15 13.5 12 10.5 7.5 6.5
