Towable electric engine-driven pump 18.50 kW

215386
€9,483.33

€9,483.33 tax excl.

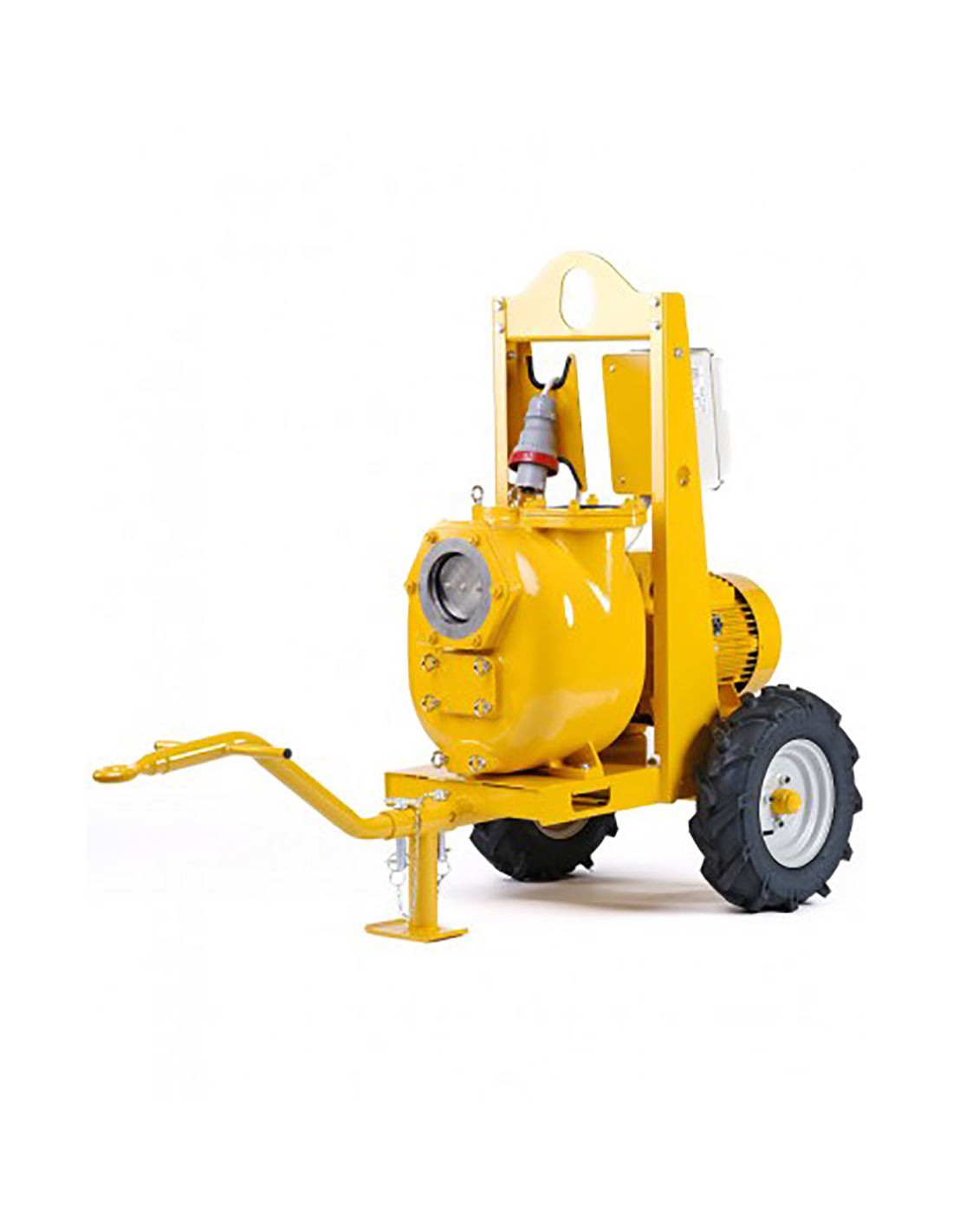

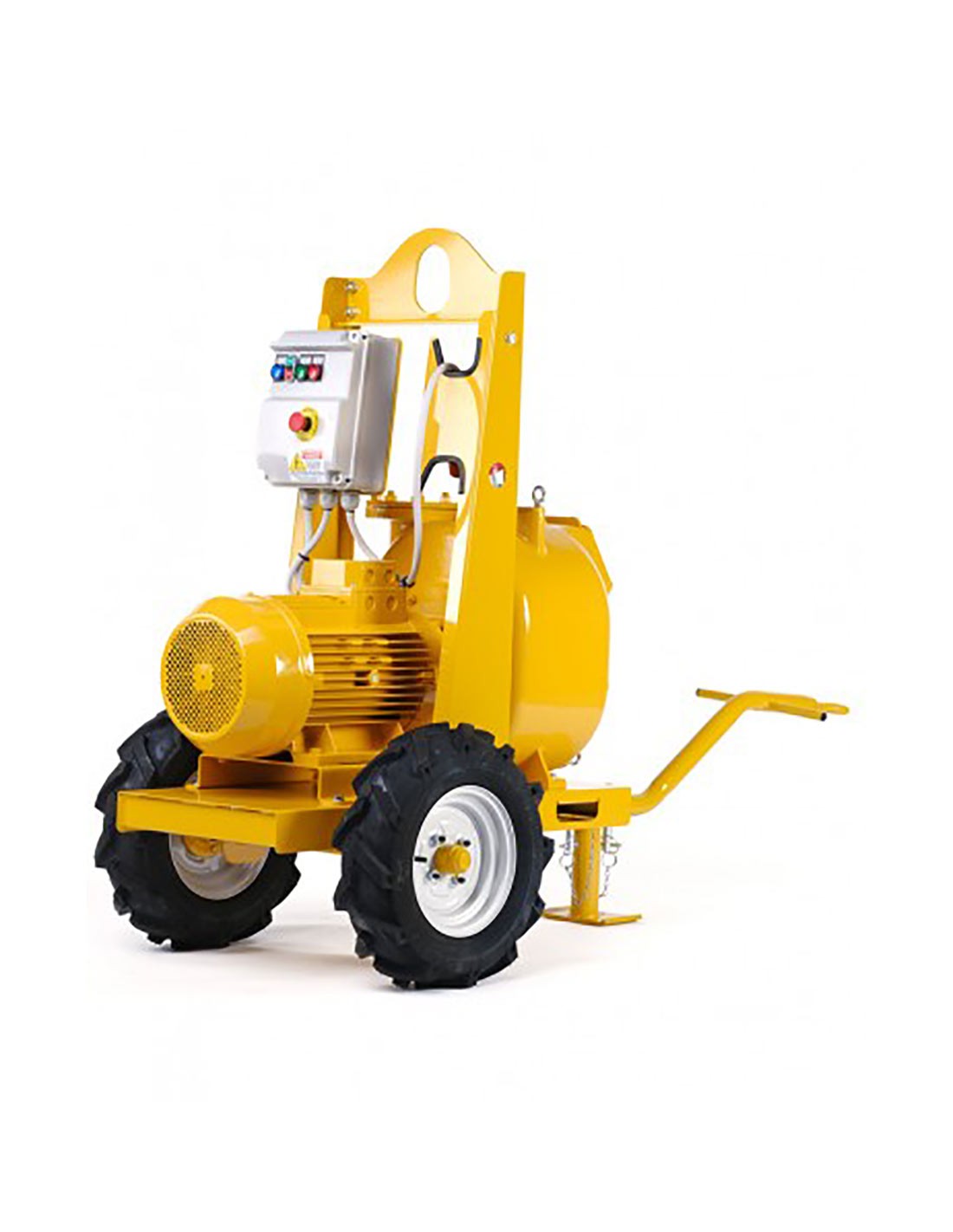

Self-priming cast iron pump for waste water, 18.50 kW electric motor, max flow rate 350 m3/h, max head 20 m, DN150 suction and delivery. The whole unit is mounted on a towable trolley, with electrical control and protection panel.

Description

Uses:
- Flood response pump.
- Waste water drainage pump

 Specifications:
- Horizontal electric motor 1450 rpm, 400/690 V - 50 Hz, IP55, Class F.
- Pump body in ASTM A48-64-35B cast iron.
- Pump impeller in ASTM A536 60-40-18 ductile cast iron.
- Pump flange in ASTM A536 60-40-18 ductile cast iron.
- Mechanical seal silicone/ceramic/VITON.

Model MTP ELEC
S161 G31T+TG
Reference 215386
Voltage (V) 3 x 400
Power (Kw) 18.50
Current (A) 35
Max flow rate (m3/h) 350
Max. head (m) 20
Max. suction (m) -7.5
⌀ Particles (mm) 54
Suction-Discharge
 6"
Height (mm) 439
Width (mm) 306
Weight (Kg) 385
