| Model | Referency | Power | Voltage (V) |
Floater | Cable | Passage |
| GQRM 10-10 | 200 202 | 0.45 kw | 230 V | with | 10m - 3G1 mm² | 10 mm |
| GQRM 10-12 | 200 205 | 0.55 kw | 230 V | with | 10m - 3G1 mm² | 10 mm |
| GQRM 10-14 | 200 208 | 0.75 kw | 230 V | with | 10m - 3G1 mm² | 10 mm |
| GQRM 10-16 | 200 211 | 0.90 kw | 230 V | with | 10m - 3G1 mm² | 10 mm |
| GQRM 10-18 | 200 214 | 1.10 kw | 230 V | with | 10m - 3G1 mm² | 10 mm |

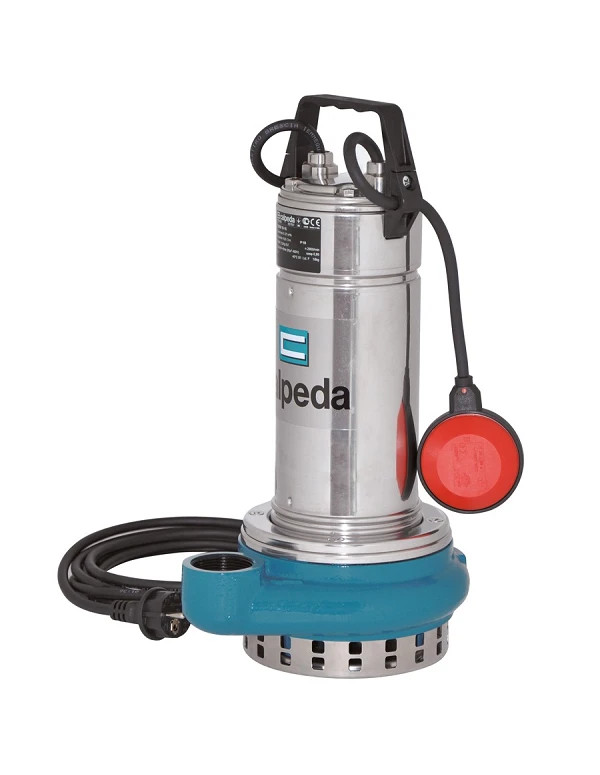

Construction of the GQR pump
Single-impeller submersible drainage pump, with vertical delivery port.
GQR : with open impeller.
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
Applications
For clean water containing solids up to 10 mm grain size.
For draining rooms or emptying tanks.
Extraction of water from pond s, streams or pits and for rainwater collection.
For irrigation purposes.
Operating conditions
Liquid temperature up to 35° C.

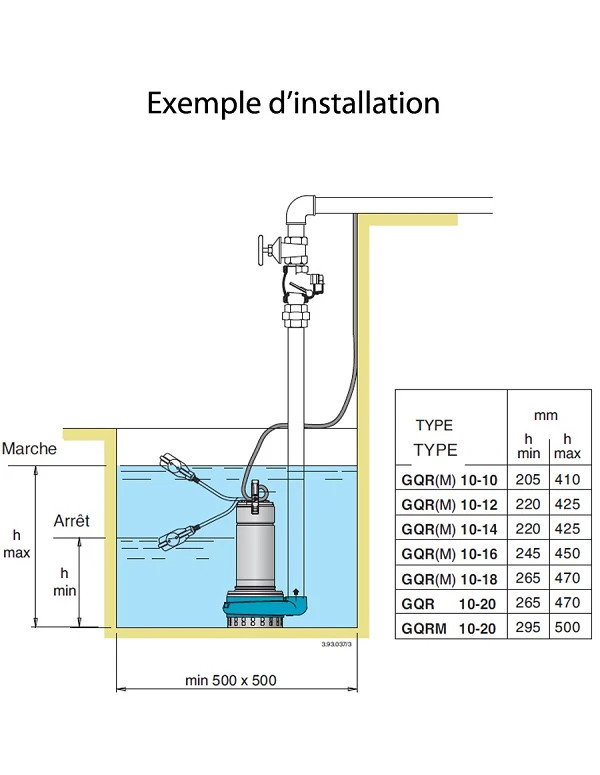

Maximum immersion depth : 5 m.
Minimum immersion depth : 205 mm.
Continuous duty (with submerged motor).
Motor
2-pole induction motor - 50 Hz (n = 2900 rpm).
GQR: three-phase 230 V ± 10%.
Three-phase 400 V ± 10%.
Cable : H07RN-F, 4G1 mm2, length 10 m, without plug.
GQRM : single-phase 230 V ± 10%.
With float switch and thermal protector.
Incorporated capacitor.
Cable : H07RN-F, 3G1 mm2, length 10 m, with plug CEI-UNEL 47166.
Insulation class F.
Protection IP X8 (for continuous immersion).
Triple impregnation humidity-proof dry winding.
Constructed in accordance with certification : EN 60034-1, EN 60335-1, EN 60335-2-41.
Other features on request
- Other voltages.
- Frequency 60 Hz (as per 60 Hz data sheet).
- Other mechanical seal.
- Cable length 20 m.
- Vertical magnetic float switch.
