Pompe de drainage inox GXR

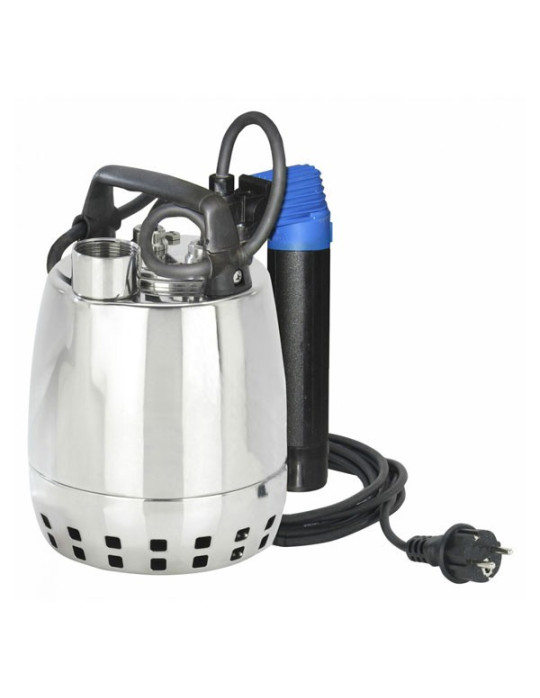

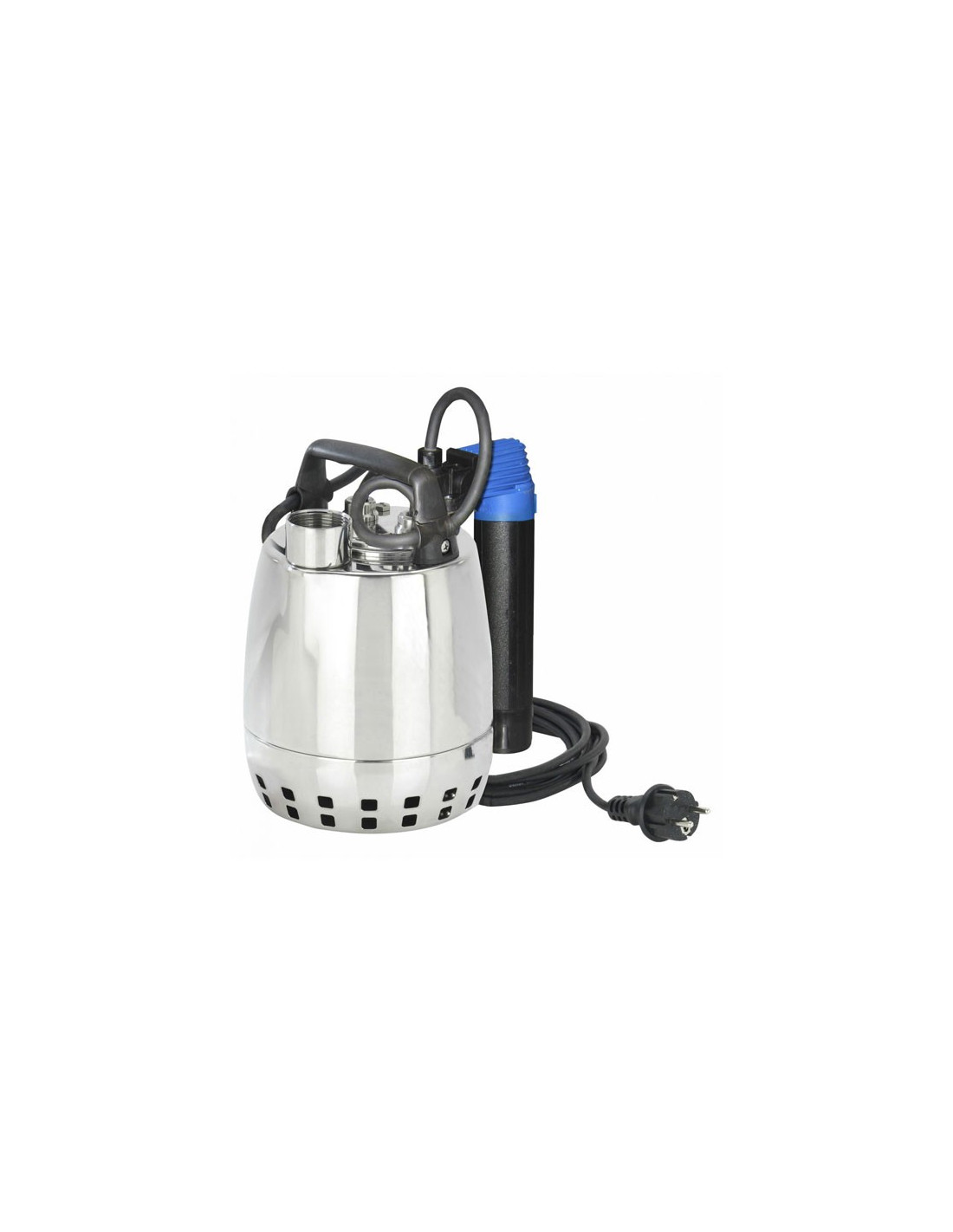

Stainless steel drainage pump GXRM GF (230V)

205233
Delivery 2 to 4 days
€313.33

€313.33 tax excl.

rating Read the review
Average rating: 10/10 Number of reviews: 1

The GXR pump is intended for draining clean or slightly loaded water, as well as emptying tanks and gravity watering. Magnetic level switch with 10m of cable. Available in 0.25, 0.37 and 0.55 kw single-phase.



Power

Attributs
Image Ref. Power Unit price Avail. Buy
Stainless steel drainage pump GXRM GF (230V)
205233 0.25 Kw
€313.33
Available
Stainless steel drainage pump GXRM GF (230V)
205234 0.37 Kw
€354.17
Available
Stainless steel drainage pump GXRM GF (230V)
205235 0.45 kw
€385.00
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Submersible pumps in nickel-chromium stainless steel, supplied with 10m cable + standard plug, float switch for automatic start and stop.

Specifications:
- Pump body, impeller, motor and pump casing in AISI 304 stainless steel).
- AISI 303 stainless steel shaft.
- Aluminium oxide/hard carbon/NBR mechanical seal.
- Sealing, white lubricating oil, food/pharmaceutical use.
- Magnetic float switch and thermal protection.
- Built-in capacitor
- Insulation class F.
- IP X8 protection (for continuous immersion).
- Dry winding with double moisture-resistant impregnation.
- Manufactured to: EN 60 335-2-41.

Use:
- For clean water, with solid particles up to 10 mm in diameter.
- For draining flooded rooms, cellars, basements.
- For emptying sumps, pits, tanks.
- for drawing water from ponds, watercourses, wells and rainwater.
- for pumping non-aggressive liquid in the food and pharmaceutical industry.

Model GXRM 9 GF GXRM 11 GF GXRM 13 GF
Reference 205233 205234 205235
Power (Kw) 0.25 0.37 0.45
Voltage (V) Single-phase - 230
Current (A) 2.3 3.2 4.5
TDH (mWC) 9 11 12.7
Max flow rate (m3/h) 10.2 12 13.2
H05RN-F electric cable 10 m
Ø female connection (BSP) 1" 1/4 vertical
Weight (Kg) 5.2 6.5 7.2
