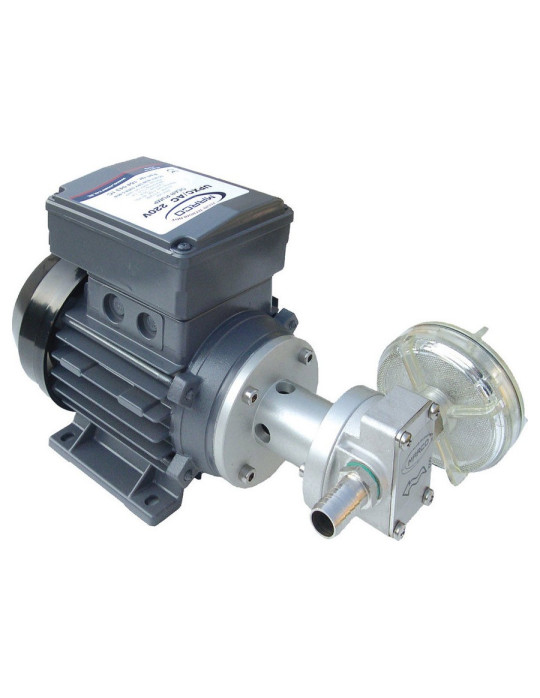

Pompe de transfert à engrenage pour liquides alimentaire - UP3-AC

Stainless steel transfer pump (food liquids) - UPX-AC 230V

605251
Delivery 2 to 4 days
€556.67

€556.67 tax excl.

Self-priming gear pump, for transferring drinking water and other food liquids (wine, oil, milk). 316 stainless steel body and shaft, PTFE gears, silicone seal. Power 0.12 Kw.

Description

Use:
- The pump is designed for continuous use.
- Under high-pressure conditions (closed or blocked delivery, delivery circuit too long, excessive pressure due to accessories, etc.) the pump may overheat. This is why use of the pump in such conditions must not be prolonged.

Permitted liquids:
- Fresh water, food liquids (maximum viscosity 20cSt), liquids compatible with stainless steel, PTFE and silicone.

Prohibited liquids:
- Petrol, viscous liquids >20 cSt, corrosive chemicals, solvents...

Specifications:
- Body and shaft in 316 stainless steel.
- PTFE gears.
- Silicone seals.
- Sealing by lip ring.
- IP 55 protection.
- 3/8” BSP ports with stainless steel fittings for hose with 14 mm internal Ø.
- Supplied with in-line filter.

Model UPX / AC
Reference 605251
Voltage (V) 230
Current (A)  0.91
Frequency (Hz) 50
Fuse (A) 1.2
Max. flow rate (l/min) 10
Max pressure (bar)  6
Operating temperature - 10°C to 60°C
Weight (Kg)  4.6
