Pompe à essence auto-amorçante ATEX - 12 ou 24 Vcc - 50 l/min

ATEX self-priming petrol pump - 230 V - 50 l/min

401111
Delivery 2 to 4 days
£593.73

£593.73 tax excl.

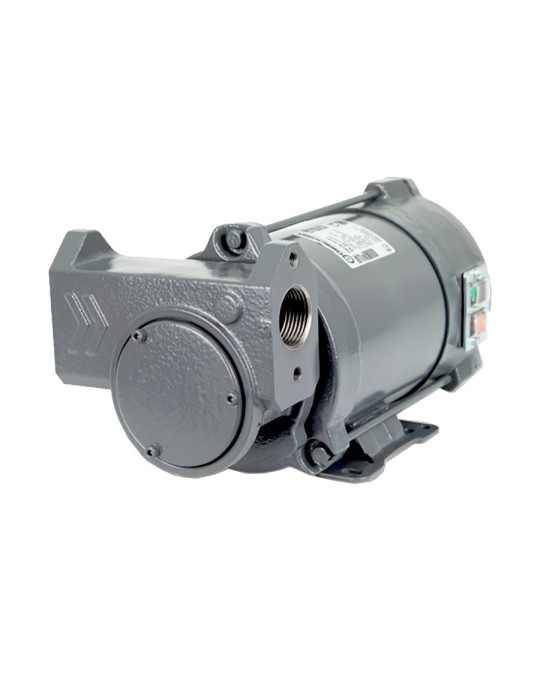

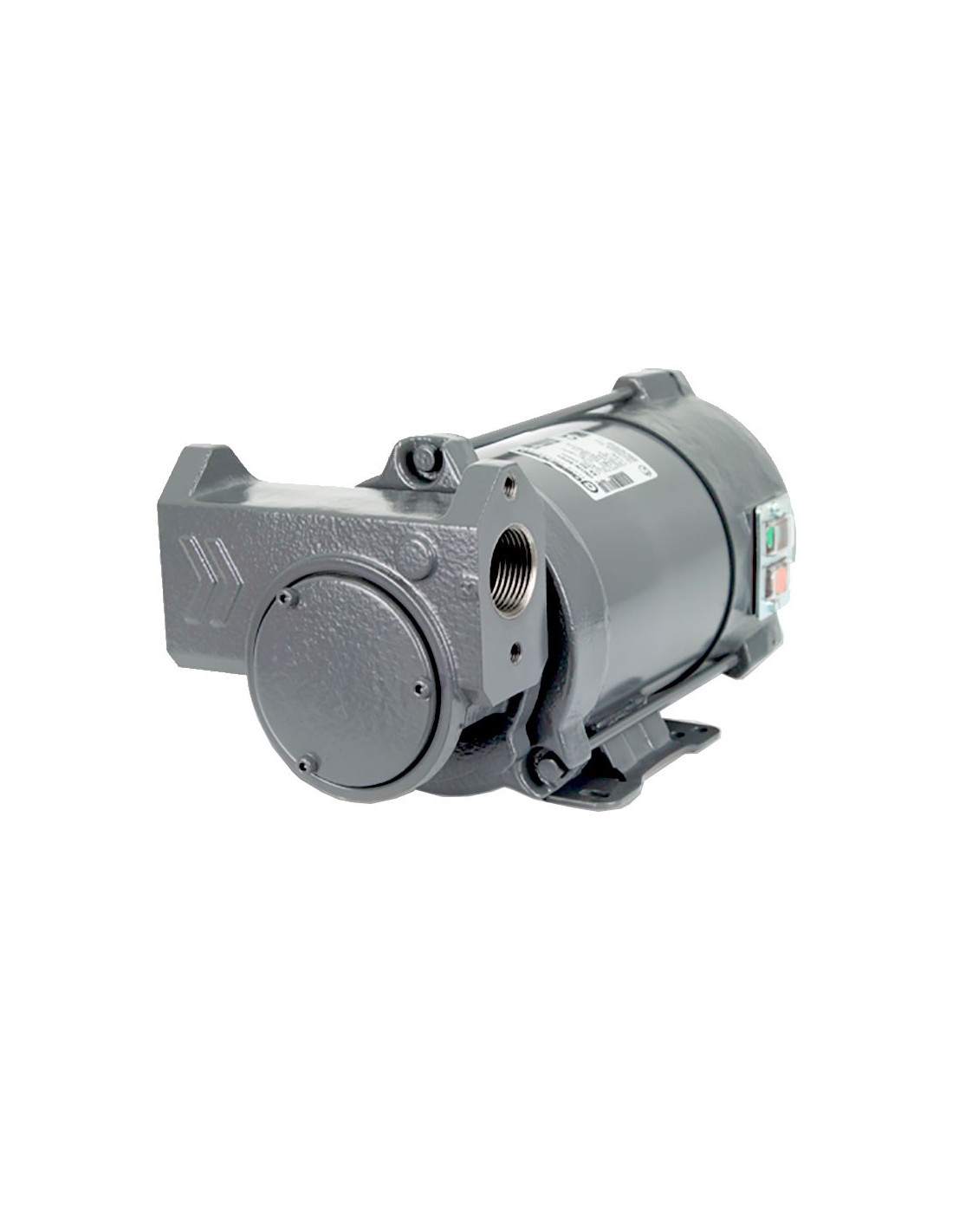

ATEX II 2G petrol pump, 230 V supply, suitable for transferring petrol, kerosene, diesel and paraffin. ATEX standard. Flow rate 50 litres per minute, self-priming - 2.7m, maximum suction -5 metres with a check valve at the end of the suction line.

Pump

Attributs
Image Ref. Pump Unit price Avail. Buy
ATEX self-priming petrol pump - 230 V - 50 l/min
401111 Seule
£593.73
Available
ATEX self-priming petrol pump - 230 V - 50 l/min
400240 Kit
£846.30
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Uses:
- Transfer of petrol, kerosene, diesel and paraffin.

Specifications:
- Eccentric vane pump.
- Self-priming suction: 2.7 m.
- Suction with primed circuit: 5 m.
- Recirculation by-pass.
- Motor: 0.18 kW 230 V 50 Hz single-phase EExd.
- Built-in thermal protection, flameproof.
- Operating temperature: -20 ºC to +40 ºC.
- S2 operation 30 minutes.
- Self-priming suction: 2.7 m.
- Suction with primed circuit: 5 m.
- IP-55 protection.
- ATEX category: II2G.
- Hydraulic protection mode: Ex h IIB T4 Gb.
- Thread connection: F1" (BSP).
- ON/OFF switch.
- Electric cable 3 metres.
- Anti-corrosion treatment.

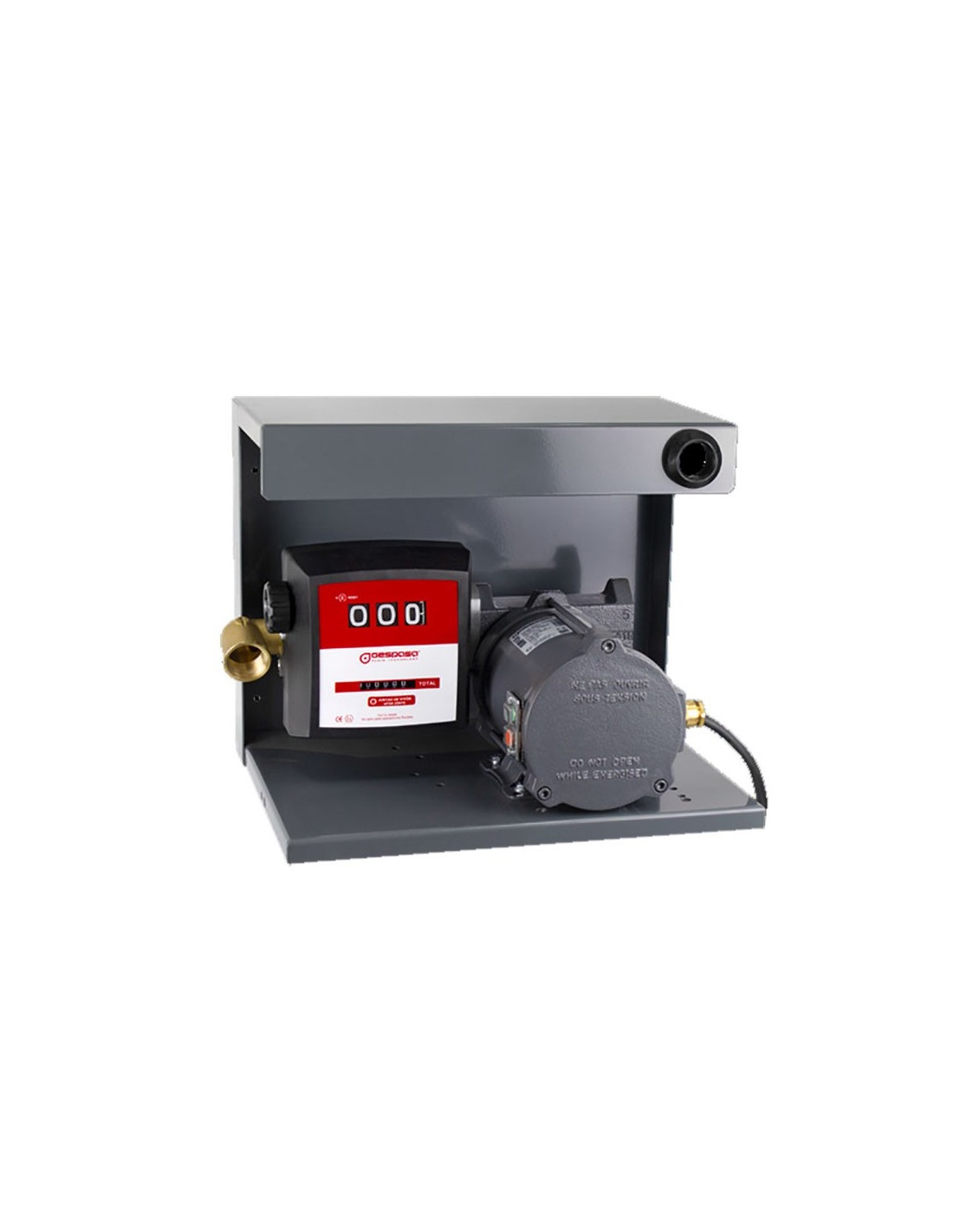

Model IRON-50 Ex KIT-IRON-50 Ex
Reference 401111 400240
Voltage (V) 230
Power (kw) 0.18
Current (A) 2
Flow rate (l/min) 50
Max. suction (m) - 5
ATEX II2G certified
 YES
BY-PASS WITH
ON / OFF switch WITH
Metal base WITHOUT WITH
Litre meter WITHOUT WITH
Threaded connections 1"
Length x width x height (mm) 265 x 165 x 155 392 x 300 x 325
Weight (Kg) 11.4 18.0
