Pompe multicellulaire horizontale toute inox 304 - EHX3 M

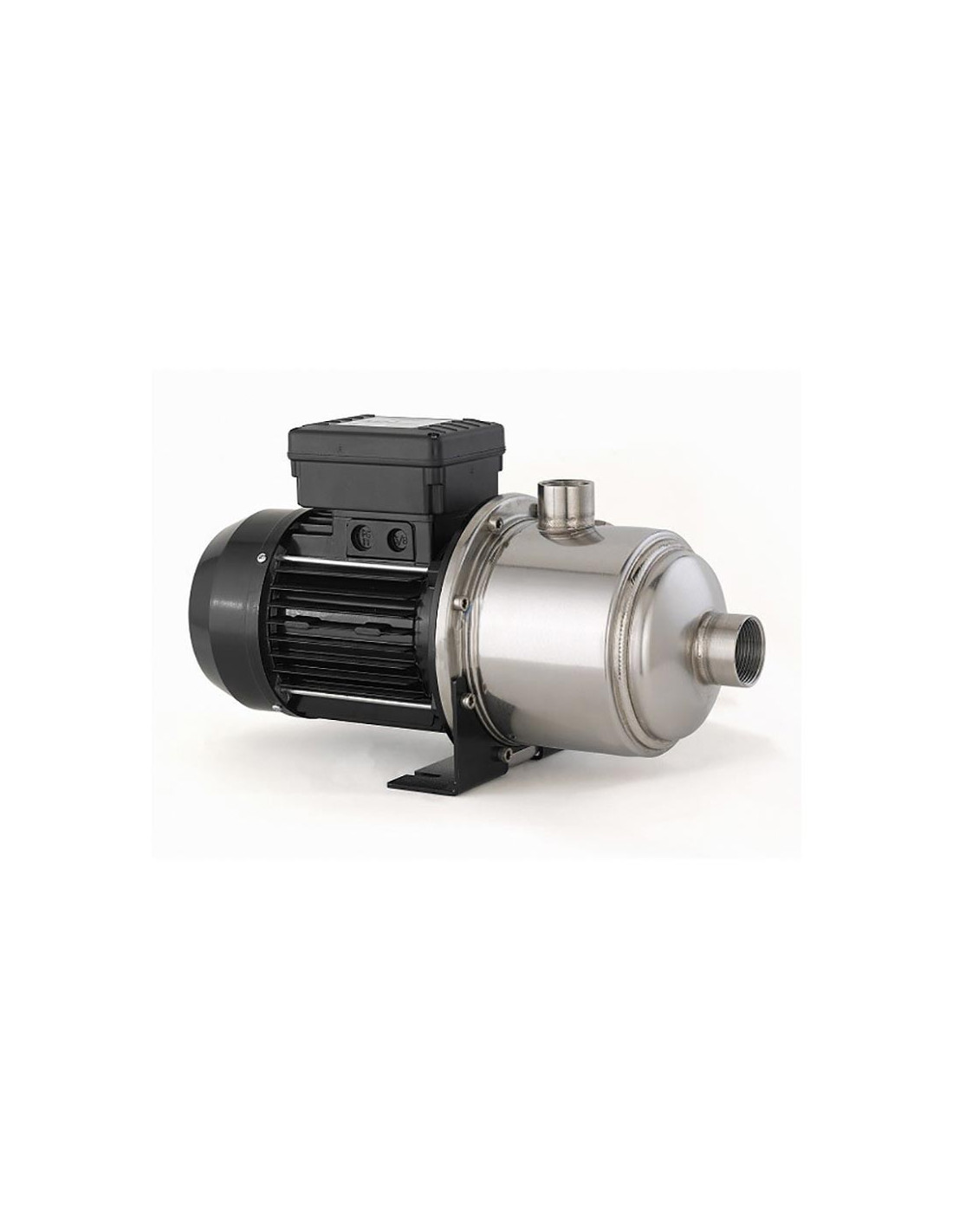

304 stainless steel horizontal multistage pump - EHX 3M

600613
Delivery 2 to 3 weeks
€591.67

€591.67 tax excl.

High-efficiency surface pump, very quiet, hydraulic part made entirely of 304 stainless steel, thermal protection built into the motor, aluminium motor casing, capacitor built into the terminal block, 230 V single-phase power supply, max flow rate 4.8 m3/h, models available from 0.55 to 1.10 Kw.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
304 stainless steel horizontal multistage pump - EHX 3M
600613 0.55 Kw
€591.67
Available
304 stainless steel horizontal multistage pump - EHX 3M
600614 0.75 Kw
€695.00
Available
304 stainless steel horizontal multistage pump - EHX 3M
600616 1.10 Kw
€815.00
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Limits of use:
- Liquid temperature: from 0 °C to +110 °C.
- Ambient temperature up to +50 °C.
- Maximum permissible pressure in the pump body: 10 bars.
- Suction head up to 7 metres

Specifications:
- Pump made entirely of 304 stainless steel.
- Mechanical seal in hard carbon/ceramic/EPDM.
- 2-pole single-phase motor 230/240 V - 50 Hz, with built-in thermal protection and capacitor.
- Insulation class F.
- IP 55 protection.

 ModelReferencePower
(Kw)		Voltage
(V)		Ø
Suction (F)		Ø
  Discharge (F)		Weight
(Kg)
EHX 3/4 M 600613 0.55 230 single-phase 1" 1/4 1" 11.1
EHX 3/5 M 600614 0.75 11.6
EHX 3/7 M 600616 1.10 14.6



Flow ratem3/h0 1.22.43.64.8
l/min20406080
EHX 3/4 M Height
(m)		 44.5 41 35 26 15
EHX 3/5 M 55 51 43 31 17
EHX 3/7 M 78 72 62 46 26
1 m3/h (1000 litres per hour) = 16.66 l/min

 ModelReferencePower
(Kw)		Voltage
(V)		Ø
Suction (F)		Ø
  Discharge (F)		Weight
(Kg)
EHX 5/4 M 600629 0.90 230 single-phase 1" 1/4 1" 11.1
EHX 5/6 M 600631 1.30 14.0
EHX 5/8 M 600633 1.85 18.6



Flow ratem3/h02.43.64.86.07.2
l/min406080100120
EHX 5/4 Height
(m)		 46.5 42 39 35 29 21
EHX 5/6 70 63 59 52 44 31
EHX 5/8 92.5 86 82 66 54 39
1 m3/h (1000 litres per hour) = 16.66 l/min

 ModelReferencePower
(Kw)		Voltage
(V)		Ø
Suction (F)		Ø
  Discharge (F)		Weight
(Kg)
EHX 9/2 M 600643 0.75 230 / single-phase 1" 1/2 1" 1/4 11.5
EHX 9/3 M 600644 1.10 12.8
EHX 9/4 M 600645 1.50 13.2
EHX 9/5 M 600646 1.85 16.8
EHX 9/6 M 600647 2.20 17.5
EHX 9/7 M 600648 18.5



Model m3/h03.64.86.07.29.612.014.4
l/min6080100120160200240
EHX 9/2 Height
(m)		 23.5 21 21 20 19 16 12 4
EHX 9/3 35.5 32 31 30 29 25 18 7
EHX 9/4 48 44 42 41 39 34 26 11
EHX 9/5 59.5 55 53 51 48 42 31 12
EHX 9/6 71 65 62 60 56 48 36 13
EHX 9/7 84 78 75 73 69 61 46 20
