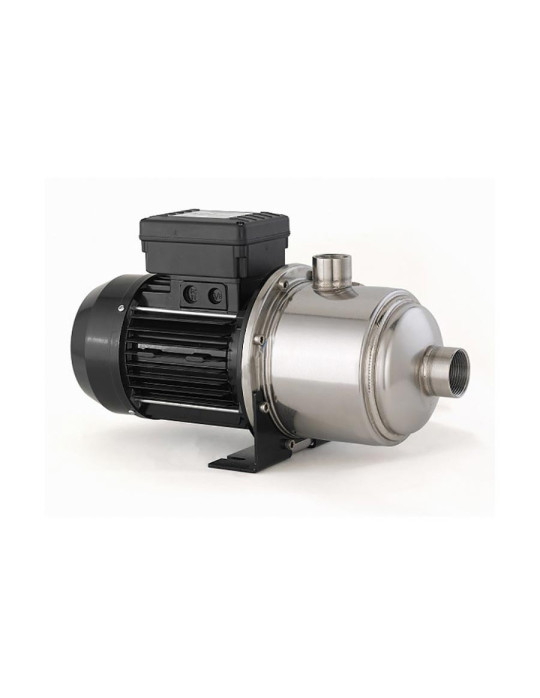

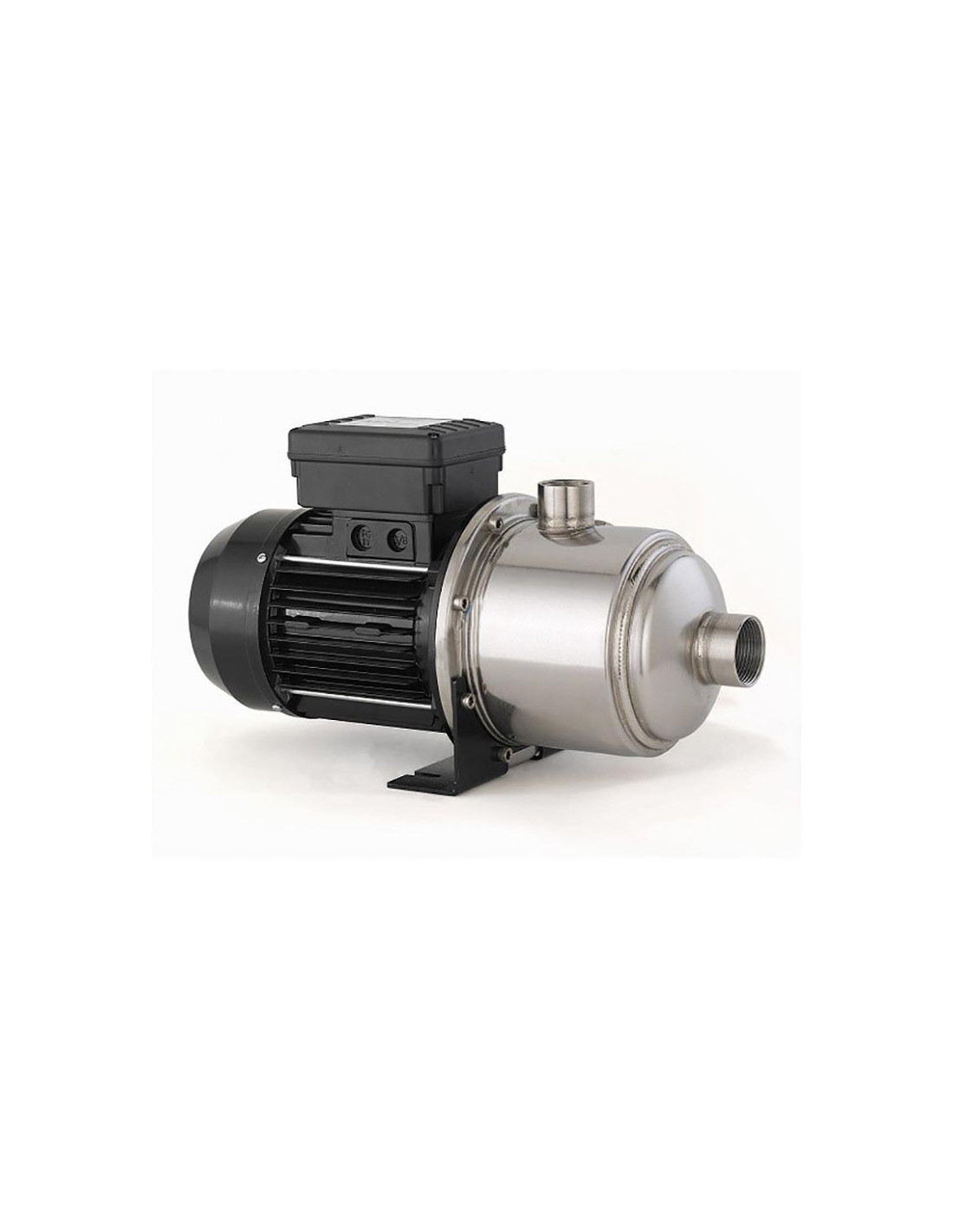

Pompe multicellulaire horizontale toute inox 304 - EHX3 T

304 stainless steel horizontal multistage pump - EHX 3T

600619
Delivery 2 to 3 weeks
$640.58

$640.58 tax excl.

High efficiency surface pump with IE3 motor, very quiet, hydraulic part entirely made of 304 stainless steel, aluminium motor casing, three-phase 230/400 V +/- 10 % supply, max flow rate 4.8 m3/h, models available from 0.75 to 1.50 Kw.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
304 stainless steel horizontal multistage pump - EHX 3T
600619 0.75 Kw
$640.58
Available
304 stainless steel horizontal multistage pump - EHX 3T
600620 0.75 Kw (1)
$714.14
Available
304 stainless steel horizontal multistage pump - EHX 3T
600621 0.75 Kw (2)
$726.24
Available
304 stainless steel horizontal multistage pump - EHX 3T
600622 0.75 Kw (3)
$757.90
Available
304 stainless steel horizontal multistage pump - EHX 3T
600623 1.10 Kw
$832.38
Available
304 stainless steel horizontal multistage pump - EHX 3T
600624 1.10 Kw (1)
$891.97
Available
304 stainless steel horizontal multistage pump - EHX 3T
600625 1.50 Kw
$989.74
Available
304 stainless steel horizontal multistage pump - EHX 3T
600626 1.50 Kw (1)
$1,058.64
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Limits of use:
- Liquid temperature: from 0 °C to +110 °C.
- Ambient temperature up to +50 °C.
- Maximum permissible pressure in the pump body: 10 bars.
- Suction head up to 7 metres

Specifications:
- Pump made entirely of 304 stainless steel.
- Mechanical seal in hard carbon/ceramic/EPDM.
- 2-pole three-phase motor 230/400 V, 50 Hz.
- Insulation class F.
- IP 55 protection.

Model Reference Power
(Kw)		 Voltage
(V)		 Ø
Suction (F)		 Ø
  Discharge (F)		 Weight
(Kg)
EHX 3/2 T 600619 0.75 230/400
three-phase		 1" 1/4 1" 10.5
EHX 3/3 T 600620 10.6
EHX 3/4 T 600621 11.1
EHX 3/5 T 600622 11.6
EHX 3/6 T 600623 1.10 14.0
EHX 3/7 T 600624 14.6
EHX 3/8 T 600625 1.50 18.1
EHX 3/9 T 600626 18.7



Model m3/h 0  1.2 2.4 3.6 4.8
l/min 20 40 60 80
EHX 3/2 T
 Height
(m)		 23 23 19 14 8
EHX 3/3 T
 33.5 32 27 20 12
EHX 3/4 T
 44.5 41 35 26 15
EHX 3/5 T
 55 51 43 31 17
EHX 3/6 T
 67.5 63 54 40 23
EHX 3/7 T
 78 72 62 46 26
EHX 3/8 T
 90 84 73 54 32
EHX 3/9 T
 101 94 81 60 34
1 m3/h (1000 litres per hour) = 16.66 l/min
