Limits of use:
- Liquid temperature: from 0 °C to +110 °C.
- Ambient temperature up to +50 °C.
- Maximum permissible pressure in the pump body: 10 bars.
- Suction head up to 7 metres
Specifications:

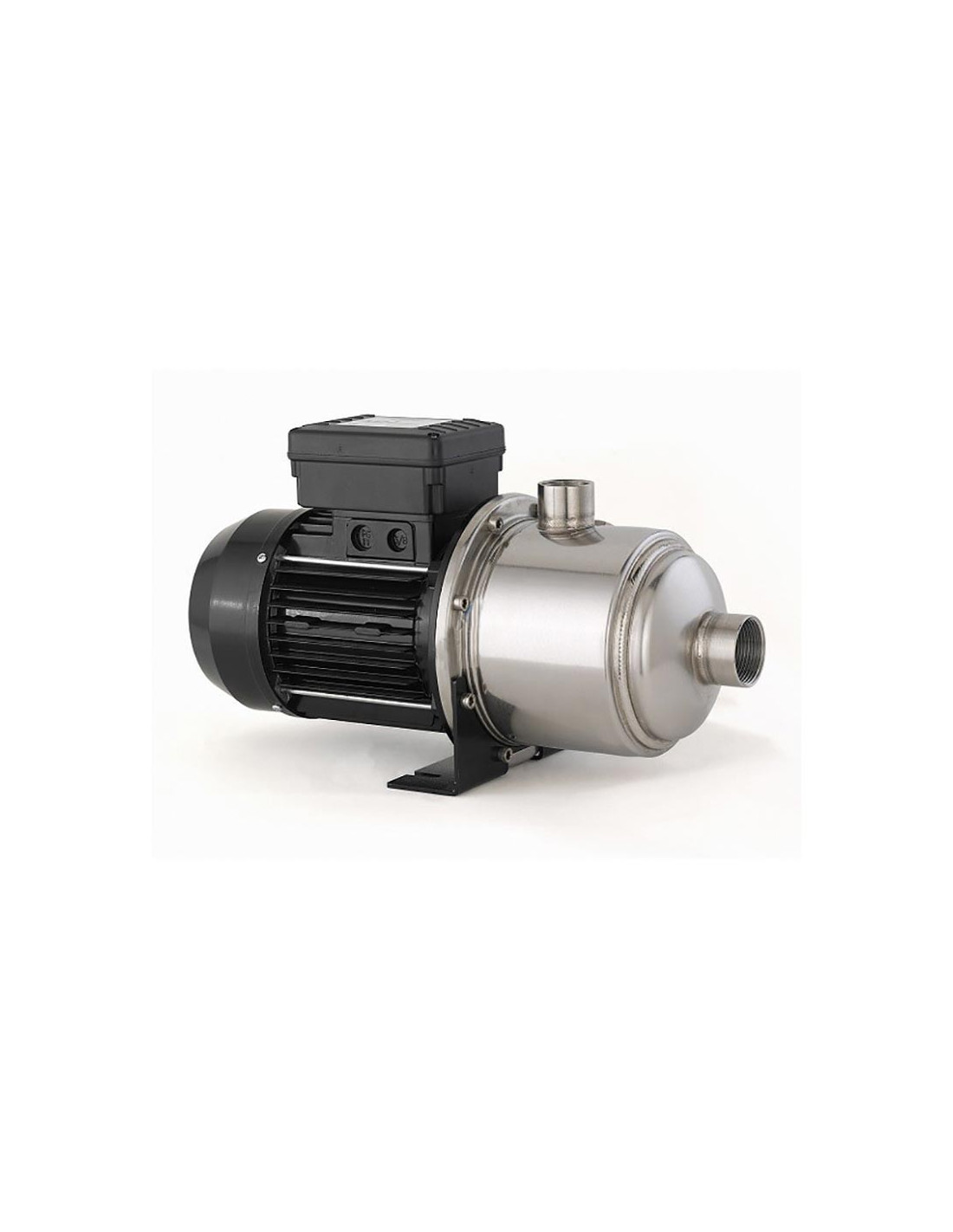

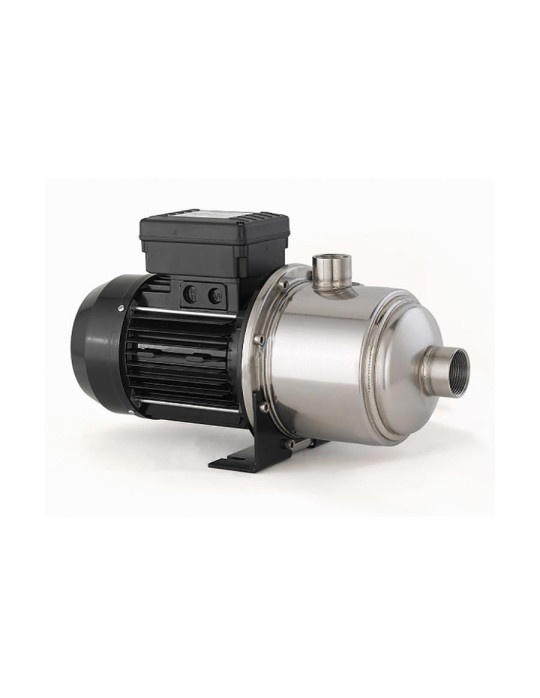

- Pump made entirely of 304 stainless steel.
- Mechanical seal in hard carbon/ceramic/EPDM.
- 2-pole three-phase motor 230/400 V - 50 Hz.
- Insulation class F.
- IP 55 protection.
| Model | Reference | Power (Kw) | Voltage (V) | Ø Suction (F) | Ø Discharge (F) | Weight (Kg) |
|---|---|---|---|---|---|---|
| EHX 5/2 T | 600635 | 0.75 | 230/400 Three-phase |
1" 1/4 | 1" | 10.5 |
| EHX 5/3 T | 600636 | 0.75 | 10.6 | |||
| EHX 5/4 T | 600637 | 1.10 | 11.1 | |||
| EHX 5/5 T | 600638 | 1.10 | ||||
| EHX 5/6 T | 600639 | 1.50 | 14.0 | |||
| EHX 5/7 T | 600640 | 1.50 | ||||
| EHX 5/8 T | 600641 | 2.20 | 18.6 | |||
| EHX 5/9 T | 600642 | 2.20 |
| Flow rate | m3/h | 0 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 |
|---|---|---|---|---|---|---|---|
| l/min | 40 | 60 | 80 | 100 | 120 | ||
| EHX 5/2 |
Height (m) |
23.5 | 21 | 19 | 17 | 15 | 11 |
| EHX 5/3 |
34.5 | 31 | 28 | 25 | 21 | 15 | |
| EHX 5/4 |
46.5 | 42 | 39 | 35 | 29 | 21 | |
| EHX 5/5 | 58 | 52 | 48 | 42 | 35 | 25 | |
| EHX 5/6 |
70 | 63 | 59 | 52 | 44 | 31 | |
| EHX 5/7 | 81.5 | 73 | 67 | 59 | 49 | 35 | |
| EHX 5/8 |
92.5 | 86 | 82 | 66 | 54 | 39 | |
| EHX 5/9 | 104 | 94 | 86 | 76 | 64 | 46 | |
| 1 m3/h (1000 litres per hour) = 16.66 l/min | |||||||
