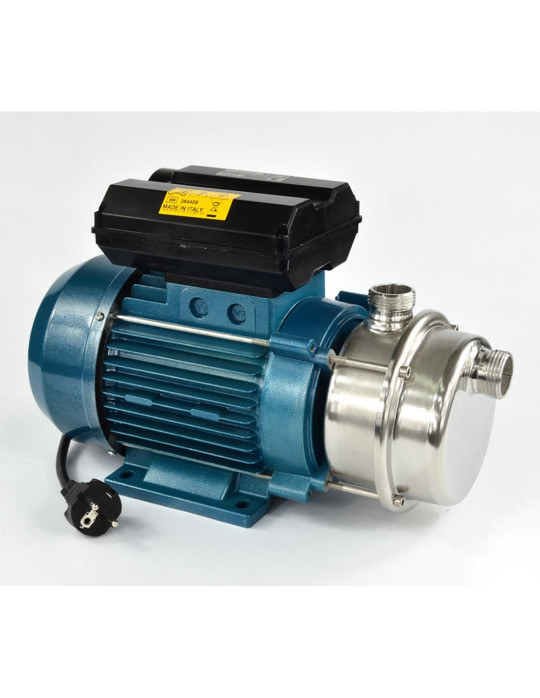

316 stainless steel self-priming pump ALM 30

Name: 316 stainless steel self-priming pump ALM 30
Brand: TELLARINI
SKU: 5303
Price: 645.0 EUR
Availability: InStock

Reference 605222

Delivery 1 to 2 weeks

€645.00

€645.00 tax excl.

316 stainless steel side channel pump, model ALM 30, power 1.50 kW, flow rate 80 l/min, max head 40 m, for suction and transfer of food liquids, chemical liquids, food industry, cosmetics... Available with BSP M 1", CLAMP (50.5mm), and DIN 25 fittings, mechanical seal, NBR, EPDM or VITON.

Garniture mécanique

Raccord

Attributs

Image	Ref.	Raccord	Garniture mécanique	Unit price	Buy
	605673	BSP M 1"	Cer.-Grafite-Viton	€675.00	Sum.:
	605673	BSP M 1"	Cer.-Grafite-Epdm	€675.00	Sum.:
	605222	BSP M 1"	Cer.-Grafite-NBR	€645.00	Sum.:
	605676	CLAMP (50.5mm)	Cer.-Grafite-Viton	€777.50	Sum.:
	605675	CLAMP (50.5mm)	Cer.-Grafite-Epdm	€777.50	Sum.:
	605678	DIN 25 M	Cer.-Grafite-Viton	€777.50	Sum.:
	605677	DIN 25 M	Cer.-Grafite-Epdm	€777.50	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

Use:
- Transfer of food liquids (milk, wine, olive oil, fruit juice, etc.).
- Transfer of chemical liquids, liquid fertilisers.

Specifications:
- 316 stainless steel pump body, impeller and shaft.
- Mechanical seal of your choice depending on the model, (Ceramic-Graphite-NBR, Ceramic-Graphite-VITON, Ceramic-Graphite-EPDM).
- Suction and discharge fittings, BSP M 1", CLAMP (50.5mm), or DIN 25 Male.
- Self-priming.
- With flow reversing valve.
- Max suction head 6 m.
- BY-PASS option (on request).

Model	Reference	Flow rate max (l/min)	Height max (m)	Mechanical seal	Connection
ALM 30 1" NBR	605222	80	40	NBR	BSP M 1"
ALM 30 1" EPDM	605673			EPDM	BSP M 1"
ALM 30 1" VITON	605674			VITON	BSP M 1"
ALM 30 CLAMP EPDM	605675			EPDM	CLAMP 50.5
ALM 30 CLAMP VITON	605676			VITON	CLAMP 50.5
ALM 30 DIN 25 EPDM	605677			EPDM	DIN 25
ALM 30 DIN 25 VITON	605678			VITON	DIN 25

Product Details

Attachments

Pompe ALM 30

Download (388.2KB)
