Pompe autoamorçante inox 316 ALM 50

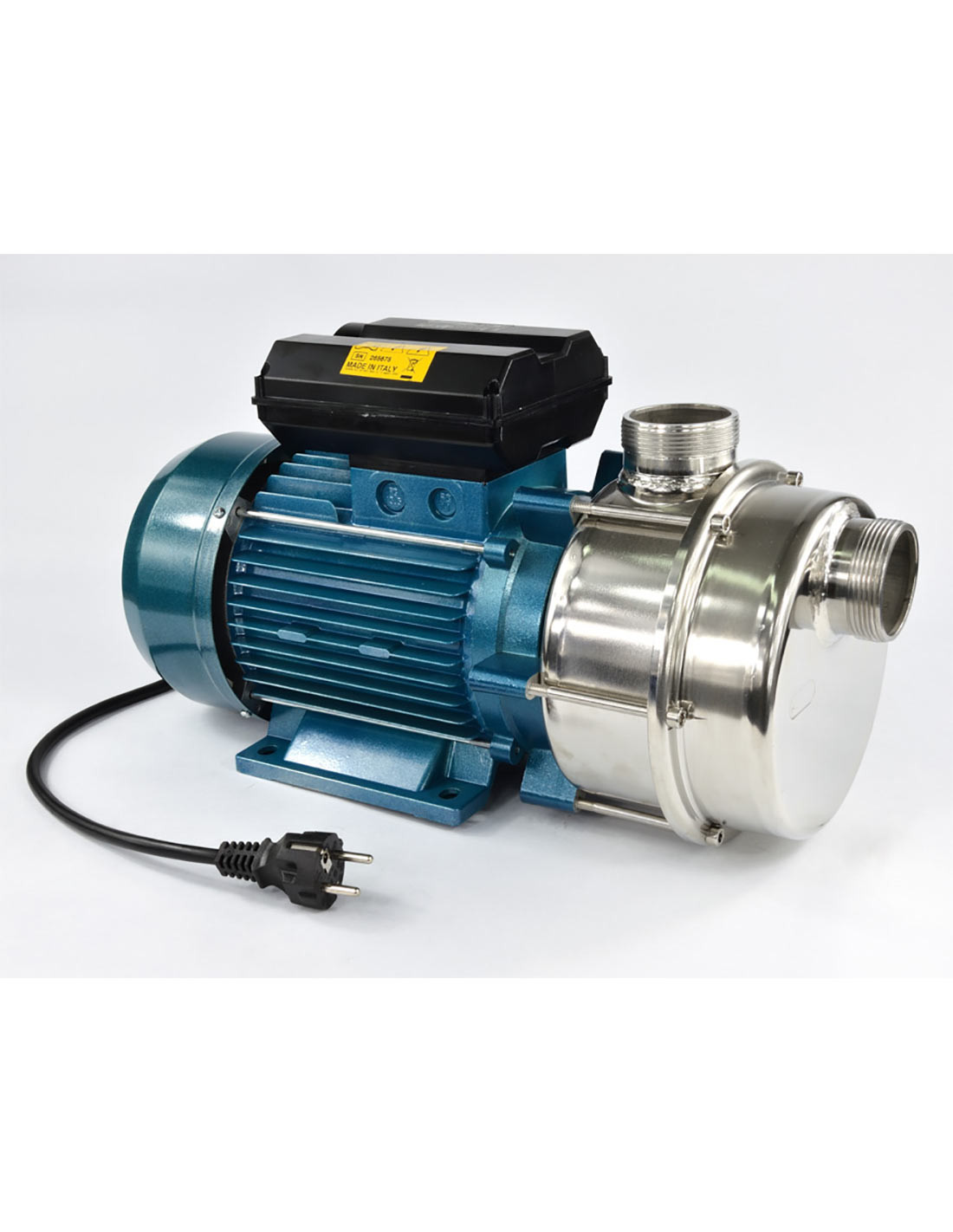

316 stainless steel self-priming pump ALM 50

605224
Delivery 1 to 2 weeks
€1,029.17

€1,029.17 tax excl.

316 stainless steel side channel pump, model ALM 50, power 1.50 kW, flow rate 200 l/min, max head 27 m, for suction and transfer of food liquids, chemical liquids, food industry, cosmetics... Available with BSP M 2", CLAMP (50.5mm), and DIN 50 fittings, mechanical seal, NBR, EPDM or VITON.

Garniture mécanique
Raccord

Attributs
Image Ref. Raccord Garniture mécanique Unit price Avail. Buy
316 stainless steel self-priming pump ALM 50
605695 BSP M 2" Cer.-Grafite-Viton
€1,067.50
Available
316 stainless steel self-priming pump ALM 50
605694 BSP M 2" Cer.-Grafite-Epdm
€1,067.50
Available
316 stainless steel self-priming pump ALM 50
605224 BSP M 2" Cer.-Grafite-NBR
€1,029.17
Available
316 stainless steel self-priming pump ALM 50
605697 CLAMP (50.5mm) Cer.-Grafite-Viton
€1,185.00
Available
316 stainless steel self-priming pump ALM 50
605696 CLAMP (50.5mm) Cer.-Grafite-Epdm
€1,185.00
Available
316 stainless steel self-priming pump ALM 50
605699 DIN 50 M Cer.-Grafite-Viton
€1,192.50
Available
316 stainless steel self-priming pump ALM 50
605698 DIN 50 M Cer.-Grafite-Epdm
€1,192.50
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- Transfer of food liquids (milk, wine, olive oil, fruit juice, etc.).
- Transfer of chemical liquids, liquid fertilisers.

Specifications:
- 316 stainless steel pump body, impeller and shaft.
- Mechanical seal of your choice depending on the model, (Ceramic-Graphite-NBR, Ceramic-Graphite-VITON, Ceramic-Graphite-EPDM).
- Suction and discharge fittings, BSP M 2", CLAMP (50.5mm), or DIN 50 Male.
- Self-priming.
- With flow reversing valve.
- Max suction head 6 m.
- BY-PASS option (on request).

Model Reference Flow rate
max (l/min)		 Height
max (m)		 Mechanical seal Connection
ALM 50
1" 1/2 NBR		 605224 200 27 NBR BSP M 2"
ALM 50
1" 1/2  EPDM		 605694 EPDM BSP M 2"
ALM 50
1" 1/2  VITON		 605695 VITON BSP M 2"
ALM 50
CLAMP EPDM		 605696 EPDM CLAMP 50.5
ALM 50
CLAMP VITON		 605697 VITON CLAMP 50.5
ALM 50
DIN 50 EPDM		 605698 EPDM DIN 50
ALM 50
DIN 50 VITON		 605699 VITON DIN 50

Customs number: 84138100 - Country of origin: Italy
