Use:
- Food liquids (olive oil, vinegar, brine, fruit juices, beer wort, milk, whey).
- Oenology (wine transfer, filtering, must).
- Agriculture (fungicides, chemical fertilisers).
- Industry, (aggressive liquids, corrosive liquids, liquid fertilisers, detergents, soap, ink, sea water).

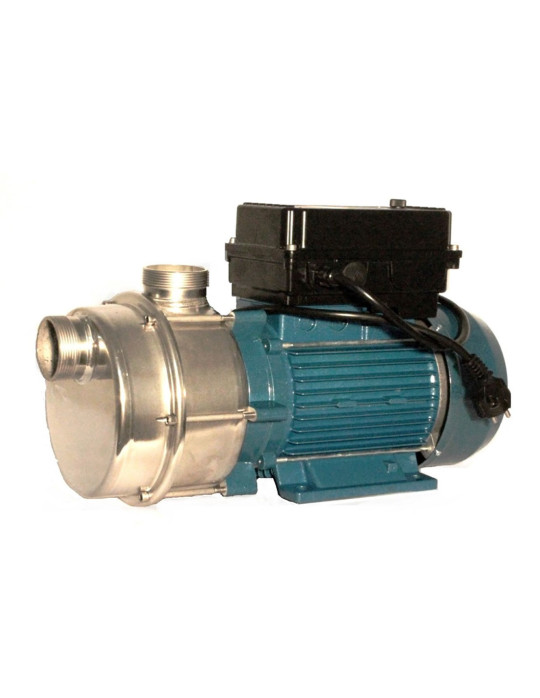

Specifications:
- 316 stainless steel pump body, impeller and shaft.
- Single-phase asynchronous motor, with rotation direction reversing by 3-position selector.
- Variable speed drive, with speed display.
- Mechanical seal of your choice depending on the model, (Ceramic-Graphite-NBR, Ceramic-Graphite-VITON, Ceramic-Graphite-EPDM).
- Liquid temperature up to +100°C, with EPDM and VITON seal.
- Ambient temperature up to +40°C.
- Maximum density: 1.1 g / cm3.
- Alternating current.
- Self-priming up to 6 metres depth.
- Do not use with petrol, solvents and, in general, in places with a risk of explosion or fire.
- Suction and discharge fittings, BSP M 1", CLAMP (50.5mm), or DIN 25 Male.
Customs code : 84138100 – Made in Italy.
| Model | Reference | Power (Kw) |
Flow rate max (l/min) |
Height max (m) |
Mechanical seal | Connection |
| ALM 30 VV 1" NBR |
605773 | 1.50 | 81 | 30 | NBR | BSP M 1" |
| ALM 30 VV 1" EPDM |
605774 | EPDM | BSP M 1" | |||
| ALM 30 VV 1" VITON |
605148 | VITON | BSP M 1" | |||
| ALM 30 VV CLAMP EPDM |
605775 | EPDM | CLAMP 50.5 | |||
| ALM 30 VV CLAMP VITON |
605776 | VITON | CLAMP 50.5 | |||
| ALM 30 VV DIN 25 EPDM |
605777 | EPDM | DIN 25 | |||
| ALM 30 VV DIN 25 VITON |
605778 | VITON | DIN 25 |
