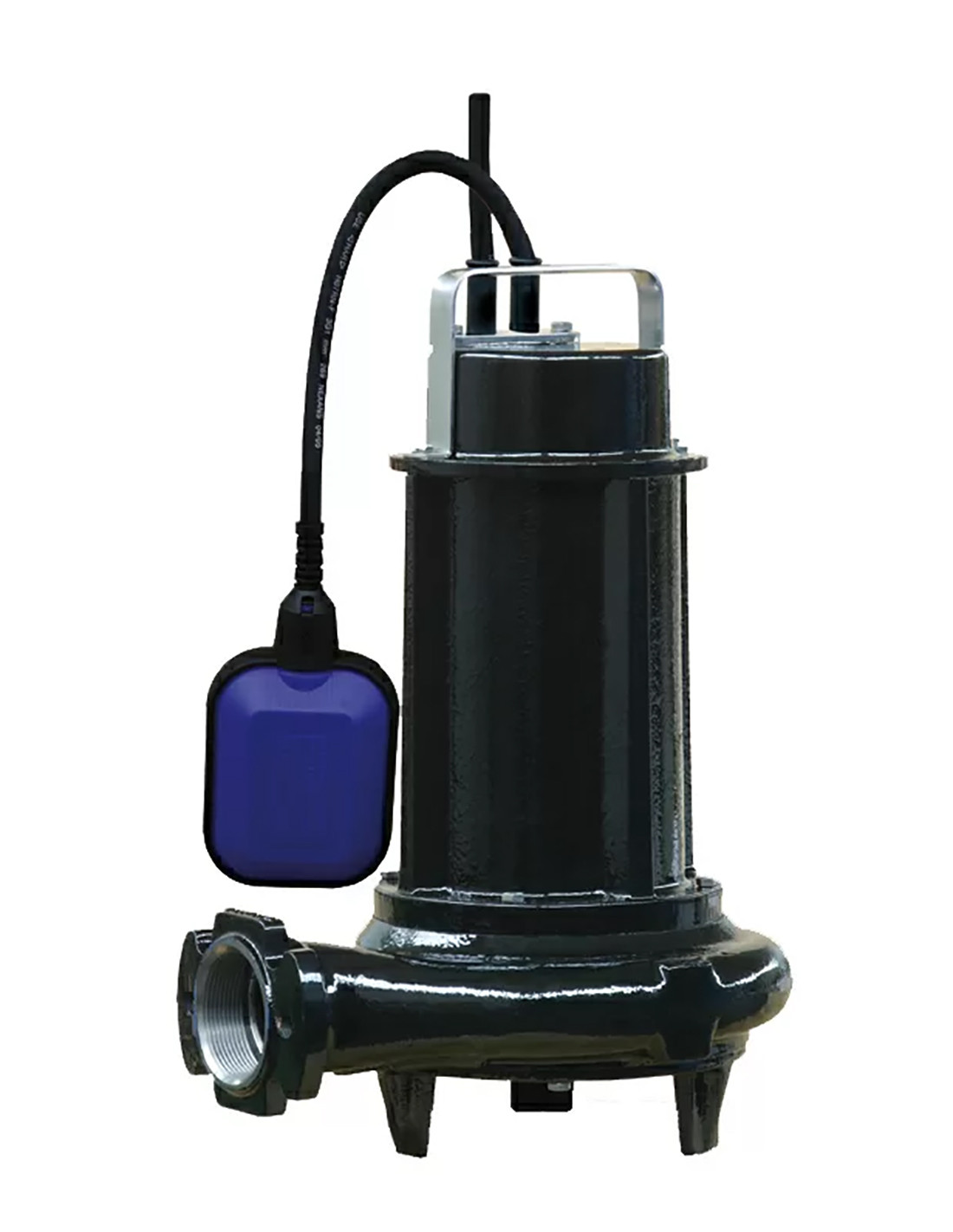

Pompe broyeuse à roue dilacératrice GRE 200

GRE 200 grinder pump with cutter impeller

210314
Delivery 2 to 3 days
€1,385.83

€1,385.83 tax excl.

rating Read the 2 reviews
Average rating: 10/10 Number of reviews: 2

The GRE grinder pump is ideal for lifting loaded water containing fibrous matter and, in general, domestic waste and loaded water. 3 models available, single-phase with or without float and three-phase.

Voltage
Float

Attributs
Image Ref. Voltage Float Unit price Avail. Buy

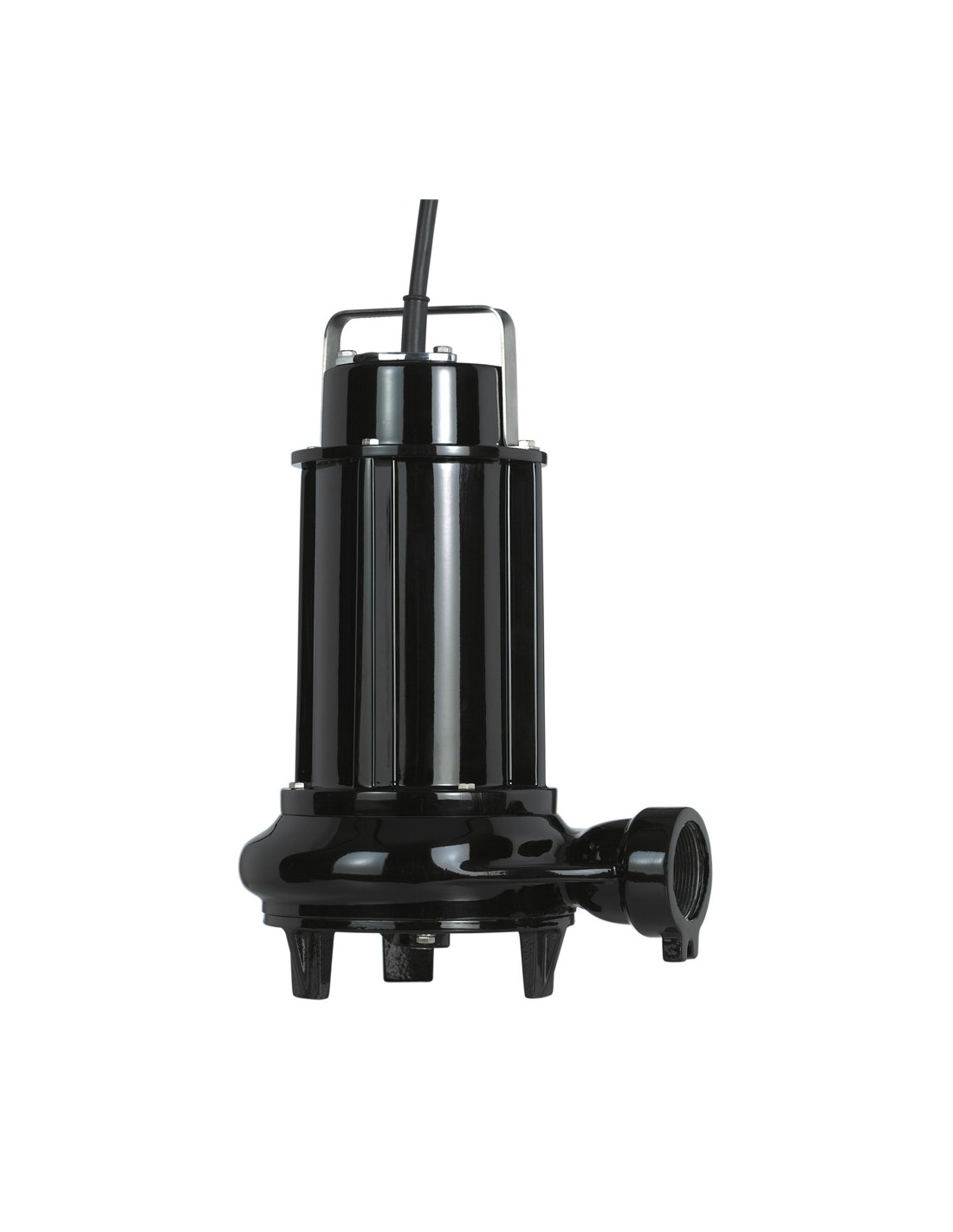

GRE 200 grinder pump with cutter impeller
210314 230 V With
€1,385.83
Available
GRE 200 grinder pump with cutter impeller
210132 230 V Without
€1,374.17
Available
GRE 200 grinder pump with cutter impeller
210133 400 V Without
€1,365.00
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Cast iron pump with open multi-channel impeller and grinding system for loaded water.

GRE 200/2/G50H pump specifications:
- Grey cast iron casing - EN-GJL 250.
- Cast iron impeller EN-GJL-250.
- Macerator (chopper) in chrome steel - X102 CrMo17 KU
- Stainless steel shaft.
- Silicon carbide mechanical seal + 1 lip seal.
- Eco-friendly dry motor with thermal protection (continuous duty) - moisture-resistant impregnation - Class F insulation - IP 68 protection.
- Capacitor built into the single-phase pump + control box with circuit breaker and ammeter protection.
- Threaded and flanged discharge, GAS 2”- DN32 Horizontal.
- Macerator made up of a rotating knife and a perforated disc with sharpened edges to cut fibrous matter finely and thus prevent the impeller from jamming.
- Maximum liquid temperature: + 40°C.
- Maximum immersion depth: 20 metres.
- HO7RNF power cable, length 10 metres.

Model Reference
Power
(Kw)
Voltage
(V)
Current
(A)
Discharge
Horizontal
Float
Weight
(Kg)
GRE 200/2/G50H
A0CM/50		 210132 1.70 230 - single-phase 10.6 2" F WITHOUT 26
GRE 200/2/G50H
A0CM/50/AUT
 210314 WITH
GRE 200/2/G50H
A0CT/50		 210133 400 - three-phase 3.8 WITHOUT



Flow rate m3/h 0 3.6 7.2 10.8 14.4 18.0 21.6
l/min 0 60 120 180 240 300 360
GRE 200/2/G50H H
(m)		 27.3 25.2 22.9 20.2 16.8 12.4 6.6
