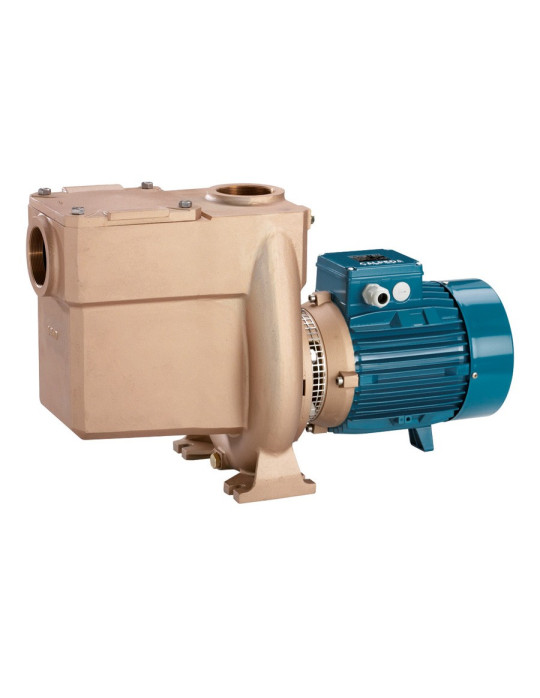

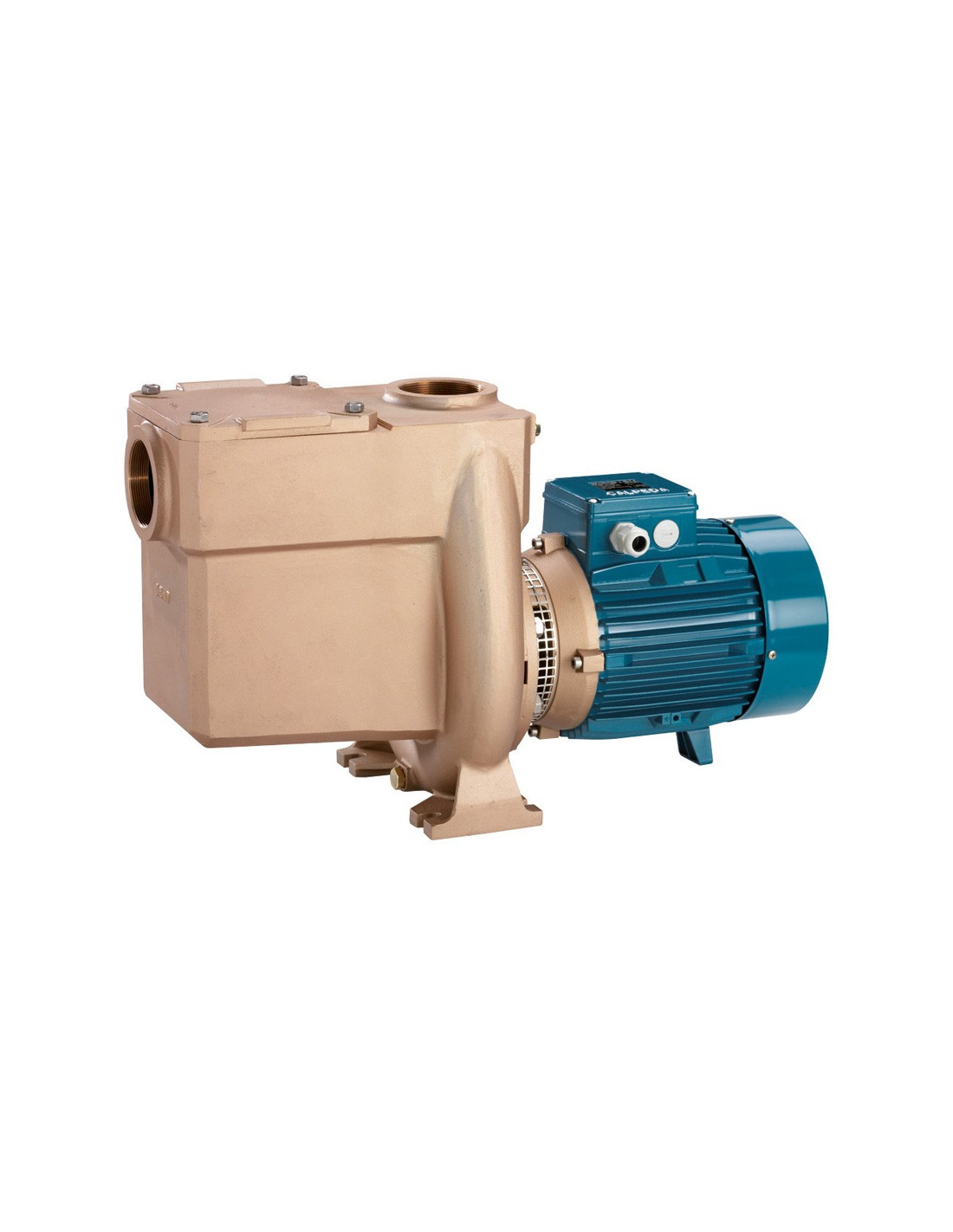

Pompe avec préfiltre corps en bronze B-NMP (tri)

Pump with pre-filter bronze body B-NMP (three-phase)

601212

Self-priming centrifugal pump with built-in filter, pump body, impeller and cover in bronze, marine quality, pumping of aggressive, corrosive, slightly loaded liquids with suspended solid particles. Three-phase models, available from 0.55 to 11.00 kW.

Modèles
Attributs
The product is not available for order.
Image Ref. Modèles
Pump with pre-filter bronze body B-NMP (three-phase)
601212 B-NMP 32/12FE
Pump with pre-filter bronze body B-NMP (three-phase)
601213 B-NMP 32/12DE
Pump with pre-filter bronze body B-NMP (three-phase)
601214 B-NMP 32/12AE
Total: 0,0
All prices with tax included.
Description

Operating limits
- Liquid temperature up to 60° C.
- Ambient temperature up to 40° C.
- Manometric suction head up to 7 m.
- Maximum permitted final pressure in the pump body 6 bar.

Specifications:
- Close-coupled bronze pump with built-in prefilter.
- Pump body, impeller, fittings and cover in bronze.
- 316 stainless steel shaft.
- 304 stainless steel filter.
- Hard carbon - ceramic - FPM seal.
- 2-pole induction motor, 50 Hz (n = 2900 1/min).
- Three-phase model 230/400 V ± 10% up to 3 kW, then 400/690 V ± 10% from 4 to 11 kW.
- Insulation class F, IP 54.

ModelReferenceVoltage
(V)		Power
(Kw)		TDH
(m)		Max flow rate
(m3/h)		Ports
SUCT/DISCH		Weight
(Kg)
B-NMP 32/12FE 601212 400 / three-phase
 		 0.55 12 15 2" (50x60) 32
B-NMP 32/12DE 601213 0.75 17
B-NMP 32/12AE 601214 1.10 21.5 33
B-NMP 32/12SE 601215 1.50 22.5 35
B-NMP 50/12HE 601216 1.10 9 54 2" 1/2 (66x76) 39
B-NMP 50/12GE 601217 1.50 12 60 40
B-NMP 50/12F/A 601218 2.20 16 66 44.5
B-NMP 50/12D/A 601219 3.00 18 66 54.5
B-NMP 65/16F/A 601220 4.00 18 96 3" (80x90) 89.5
B-NMP 65/16E/A 601221 5.50 20.5 96 102
B-NMP 65/16D/A 601222 7.50 26 108 107.5
B-NMP 65/16C/A 601223 9.20 29.5 108 130
B-NMP 65/16A/A 601224 11.00 37.5 108 137
