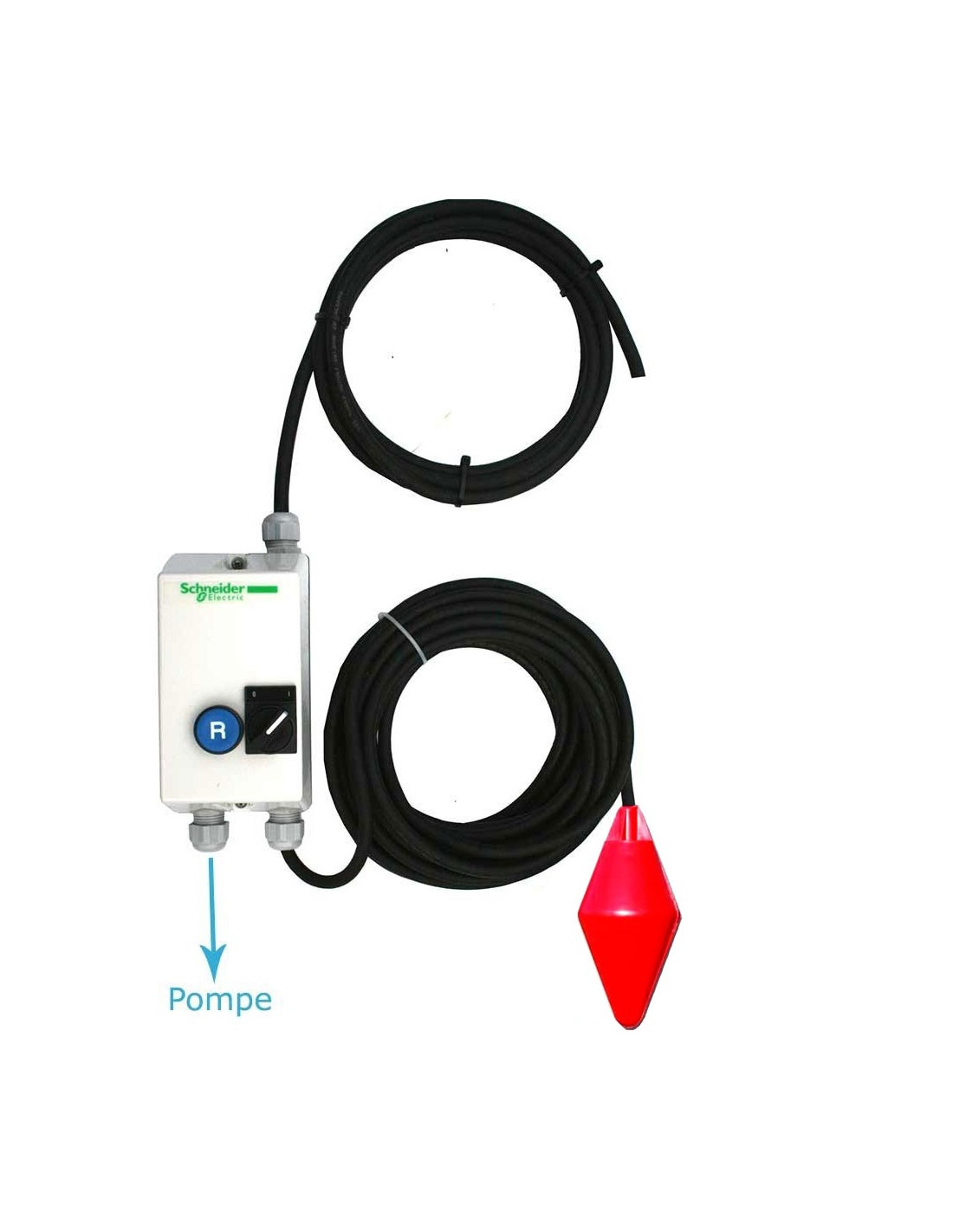

Boitier de commande et protection pompe de relevage monophasé

Control and protection box for single-phase lift pump

004114

To automate a single-phase lift pump, AT-120 float switch for agitated, clear, waste and loaded water, Schneider box with on/off button, thermal reset, power contactor + thermal protection relay, control by float switch in the tank.

Intensity
Attributs
The product is not available for order.
Image Ref. Intensity
Control and protection box for single-phase lift pump
004114 2,5 à 4A
Control and protection box for single-phase lift pump
004115 4 à 6A
Control and protection box for single-phase lift pump
004116 5.5 à 8A
Control and protection box for single-phase lift pump
004117 7 à 10A
Control and protection box for single-phase lift pump
004118 9 à 13A
Control and protection box for single-phase lift pump
004119 12 à 18A
Total: 0,0
All prices with tax included.
Description

Specification:
- Polycarbonate enclosure.
- Schneider power contactor, LC1D09P7, LC1D12P7 and LC1D18P7.
- Schneider LRD thermal relay, adjustable current, see table below.
- 2-position on/off selector (0-1).
- Thermal relay reset push button (R).
- HO7RN-F 3G1.5 or 3G2.5 electric power cable, (depending on power).
- AT-120 float switch, with 10 metres of Neoprene electric cable, HR HY (for prolonged immersion).
- 3 cable glands.
- Operating temperature, -5°C to 40°C.

Model CDMF-01
 CDMF-02 CDMF-03 CDMF-04 CDMF-05 CDMF-06
Reference 004114 004115 004116 004117 004117 004118
Coil voltage (V) 230
LRD thermal relay
 2.5 to 4 4 to 6 5.5 to 8 7 to 10 9 to 13 12 to 18
Pump power (Kw) 0.37 - 0.45 0.55 - 0.75 0.90 1.10
 1.50 2.20
Dimensions (mm) W 88 - H 166 - D 135
