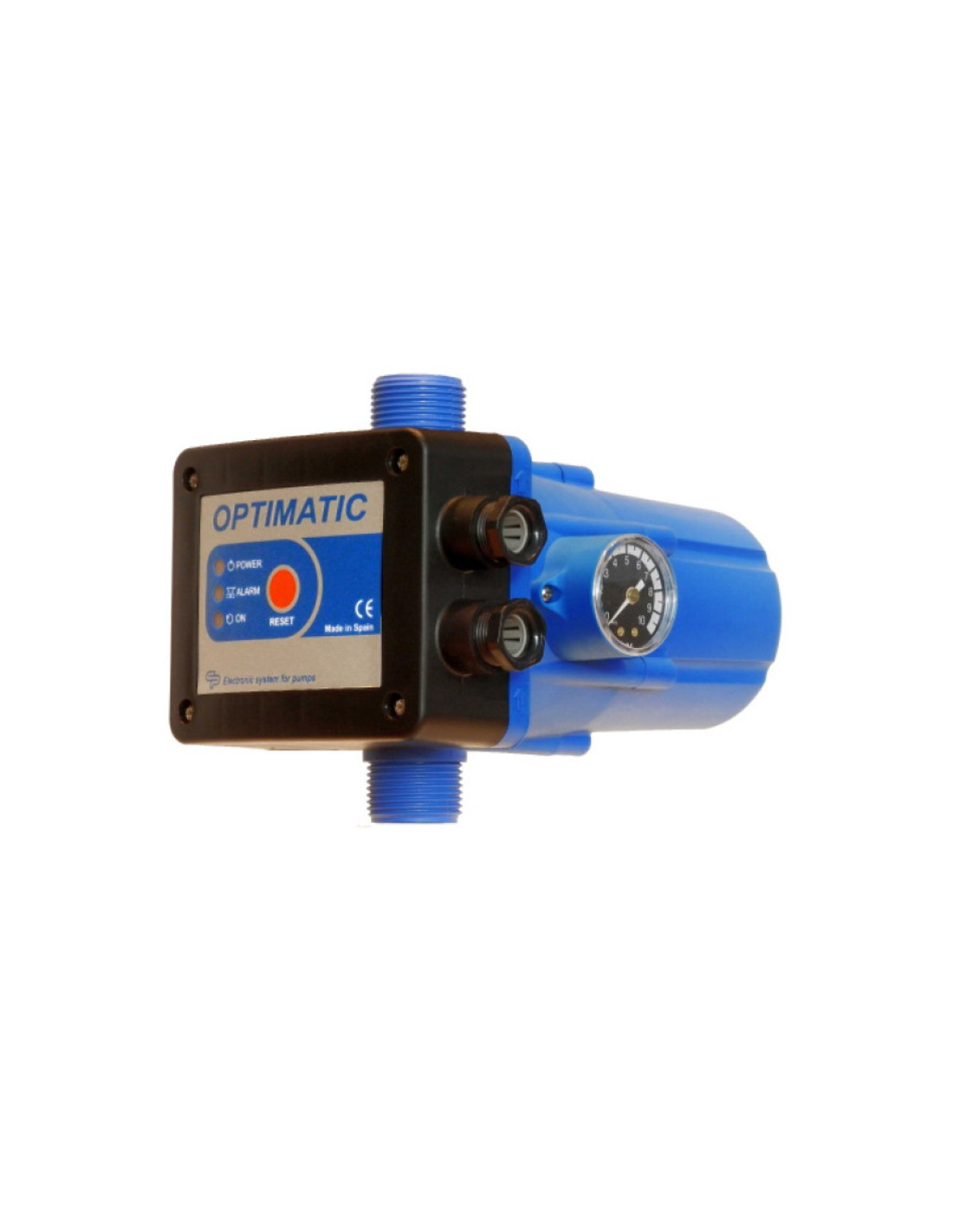

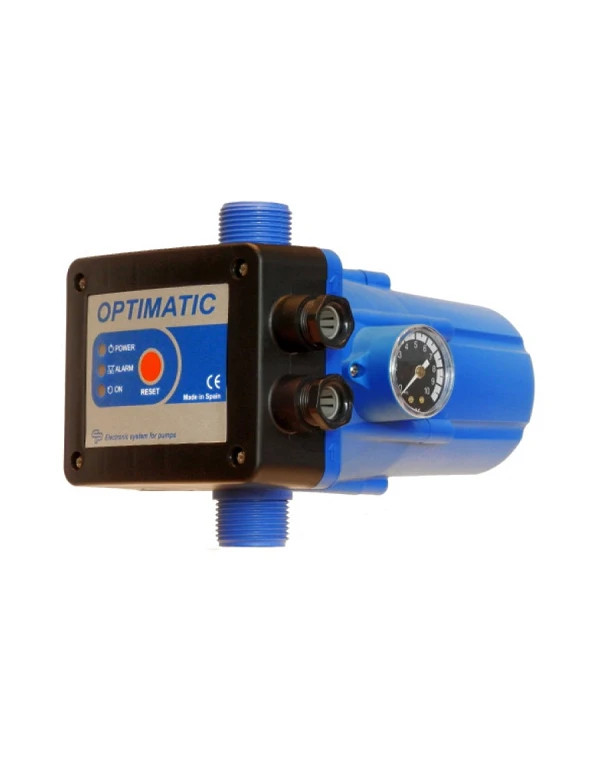

Electronic pump controller COELBO OPTIMATIC

009174
Delivery 2 to 3 days
€91.67

€91.67 tax excl.

rating Read the 7 reviews
Average rating: 9.9/10 Number of reviews: 7

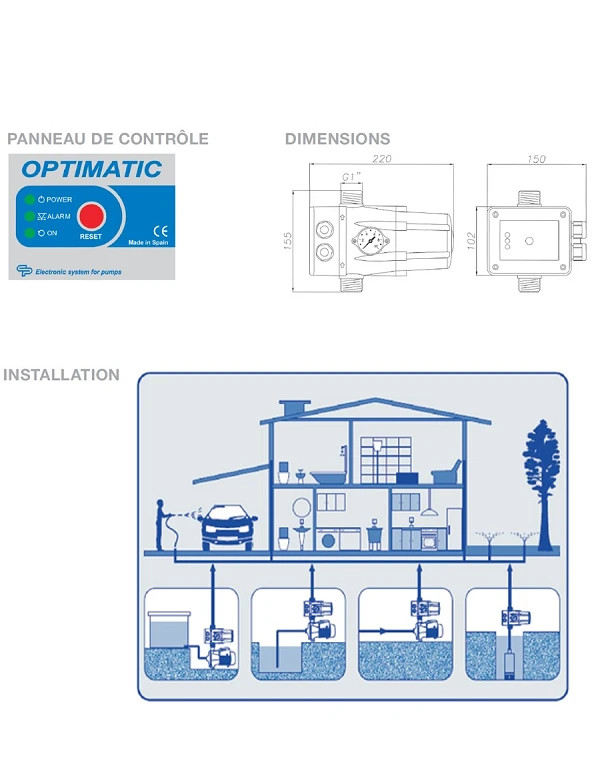

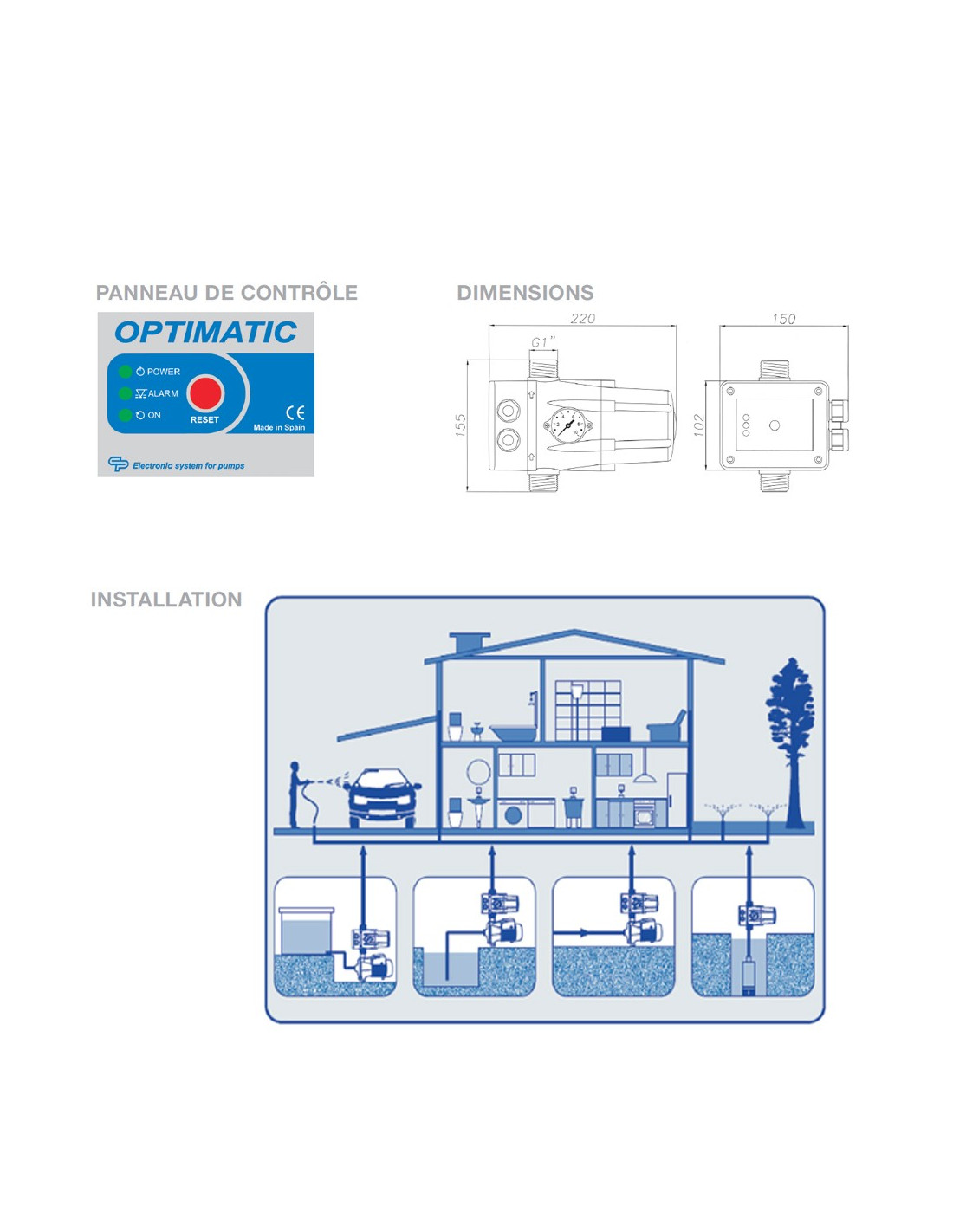

Compact device for the control and protection of a single-phase surface or submersible pump, patented operation, fitted with an electronic flow and pressure sensor, lack-of-water safety at the suction, the optimatic replaces the pressure switch, the bladder pressure tank and the check valve, the device starts the pump as soon as a tap is opened, and stops it when the tap is closed.

Description

Water pressure controller:

Specifications:
- Protection against water hammer.
- Compact, reduced dimensions.
- Elimination of protection devices (level switch).
- Avoids oversizing the pump, as it makes full use of the flow rate-pressure curve.
- Built-in dry-run safety system (lack of water at the suction).
- Automatic reset after a power cut.
- Control and signalling panel, POWER (ON) indicator and fault (FAILURE) indicator.
- Manual push button for start-up (RESET).

Model OPTIMATIC RM
Reference 009174
Max. motor power (Kw) 1.5
Power supply (V) 230 / single-phase
Start-up pressure (bar) 1.5 to 3.0
Min. stop pressure (bar) 1.5 above the start-up pressure
Max pressure (bar) 10
Max current (A) 8
Max flow rate (m3/h) 8
Check valve Integrated
Inlet / outlet connection 1” male (26 x 34)
Pressure gauge (bar) 0 to 10
Max. liquid temperature (°C) + 60
Weight (Kg) 1,3

Product Details
Attachments
Comments
Filter reviews
5/5(7)
4/5(0)
3/5(0)
2/5(0)
1/5(0)
0/5(0)
Reset

All product reviews comply with DIRECTIVE (EU) 2019/2161
Pompe h2zo
rating 10
07/07/2021
Raymond
Reçu très rapidement. Conforme à mes attentes. Qualité Prux TOP. Je recommande le matériel et la Société H2zo
Press control
rating 10
01/22/2021
Jluc
bon conseil au téléphone pour s'assurer de la compatibilité du produit proposé pour un dépannage et délais de livraison respecté.
Optimatic rm
rating 10
05/05/2020
Teddy
De bon conseil, envoi rapide, produit conforme à mes attentes Parfait
Super service, schnell, zuverlässig
rating 10
02/26/2020
Uwe
Sehr geehrte Damen und Herren, vielen Dank für die superschnelle Lieferung und die sehr gute Kommunikation zum Lieferstatus.
Optimatic
rating 10
12/15/2018
Bruno
Envoi rapide et bien emballé. installé sur une pompe Salmson, en remplacement de l'automatisme hs. Rempli parfaitement sa fonction.
Optimatic rm
rating 10
05/31/2018
Joffrey
facile et rapide a monter
Efficace
rating 9
04/24/2018
Aurélien
Produit reçu rapidement. Bien emballé. Notice un peu light quant au réglage de pression. Câblage à faire soit même comme la photo l'indique mais les bornes sont accessibles et bien indiquées.
