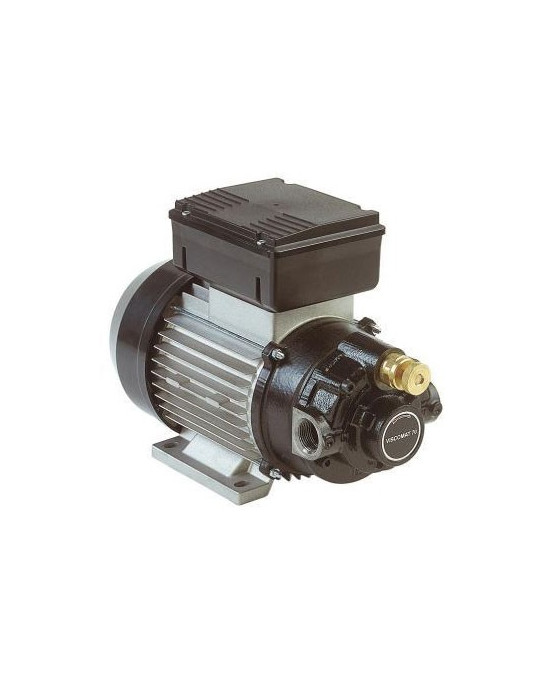

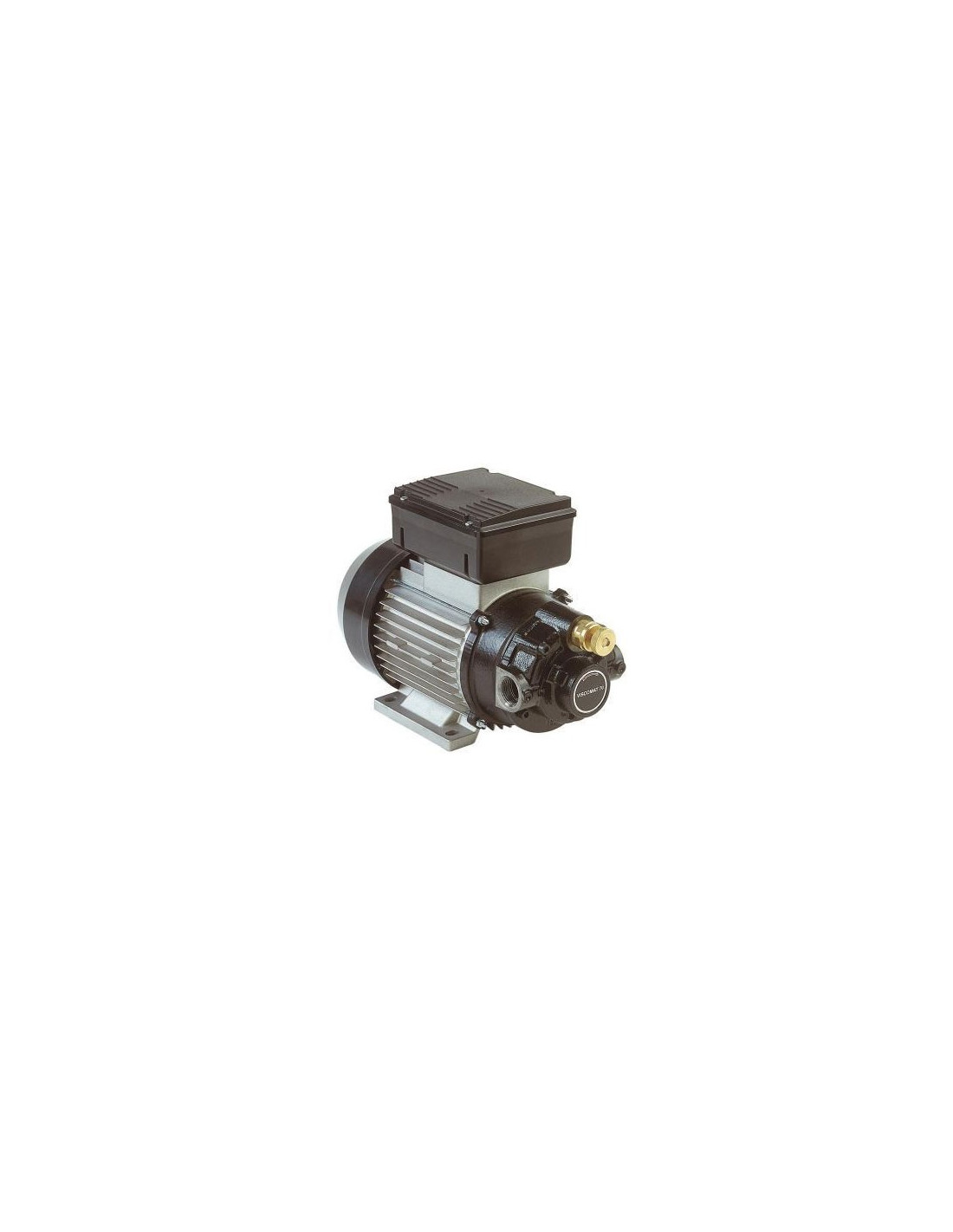

Pompe de transfert pour huiles VISCOMAT 70

VISCOMAT 70-90 oil transfer pump

400219
Delivery 4 to 6 days
$485.09

$485.09 tax excl.

rating Read the review
Average rating: 9/10 Number of reviews: 1

PIUSI Viscomat VANE vane pumps, specially designed for pumping oils with viscosity up to 500 cSt, available in 230V or 400V, flow rate 25 l/min or 50 l/min.

Model
Power supply

Attributs
Image Ref. Model Power supply Unit price Avail. Buy
VISCOMAT 70-90 oil transfer pump
400219 25 l/min Single phased 230V
$485.09
Available
VISCOMAT 70-90 oil transfer pump
400220 25 l/min Three phased 400V
$485.09
Available
VISCOMAT 70-90 oil transfer pump
400230 50 l/min Single phased 230V
$611.72
Available
VISCOMAT 70-90 oil transfer pump
400231 50 l/min Three phased 400V
$611.72
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Positive displacement vane pump, self-priming up to 2 metres, designed as a solution for pumping lubricating oils; it transfers large quantities of product from one tank to another at medium pressure.

VISCOMAT 70 and 90 features:
- High suction capacity, with pressures up to 5.5 bar (Viscomat 70).
- Noise below 70 dB.
- 230 or 400 V asynchronous motor.
- Sintered steel rotor with resin vanes.
- Vane pumps, providing a regulated flow rate.
- Can operate with closed discharge thanks to the adjustable by-pass built into the pump body.
- VISCOMAT regulator to adapt the pump to the viscosity of the oil + pressure adjustment from 0 to 5.5 bar.
- Rotary shaft seal accessible from the pump side.

Model Ref Voltage
(V)		 Power
(Kw)		 Flow rate
(l/min)		 Ports By-pass
adjustable		 Weight
(Kg)
Viscomat 70 M 400219 230 1150 25 1" with 14.1
Viscomat 70 T 400220 400 800/1100
Viscomat 90 M 400230 230 1350/1600 50
Viscomat 90 T 400231 400 1350/1100


Customs number : 84136039 - Country of origin : Italy.
