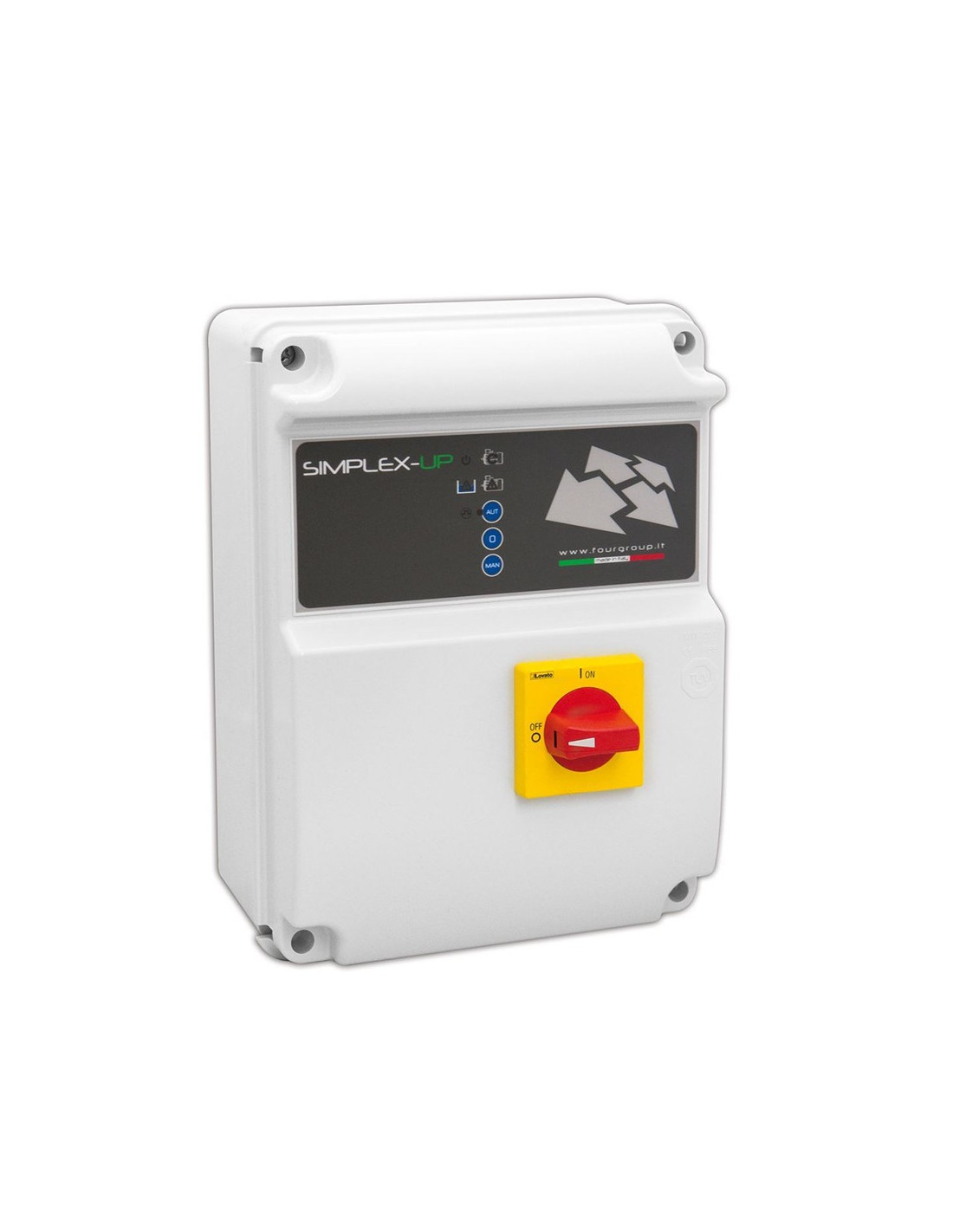

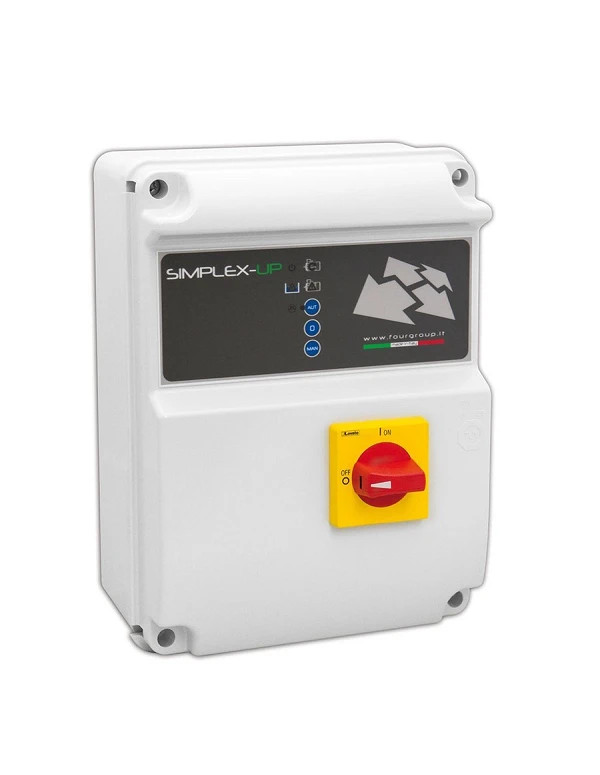

SIMPLEX single-phase pump control and protection panel

008177
Delivery 2 to 4 days
€271.67

€271.67 tax excl.

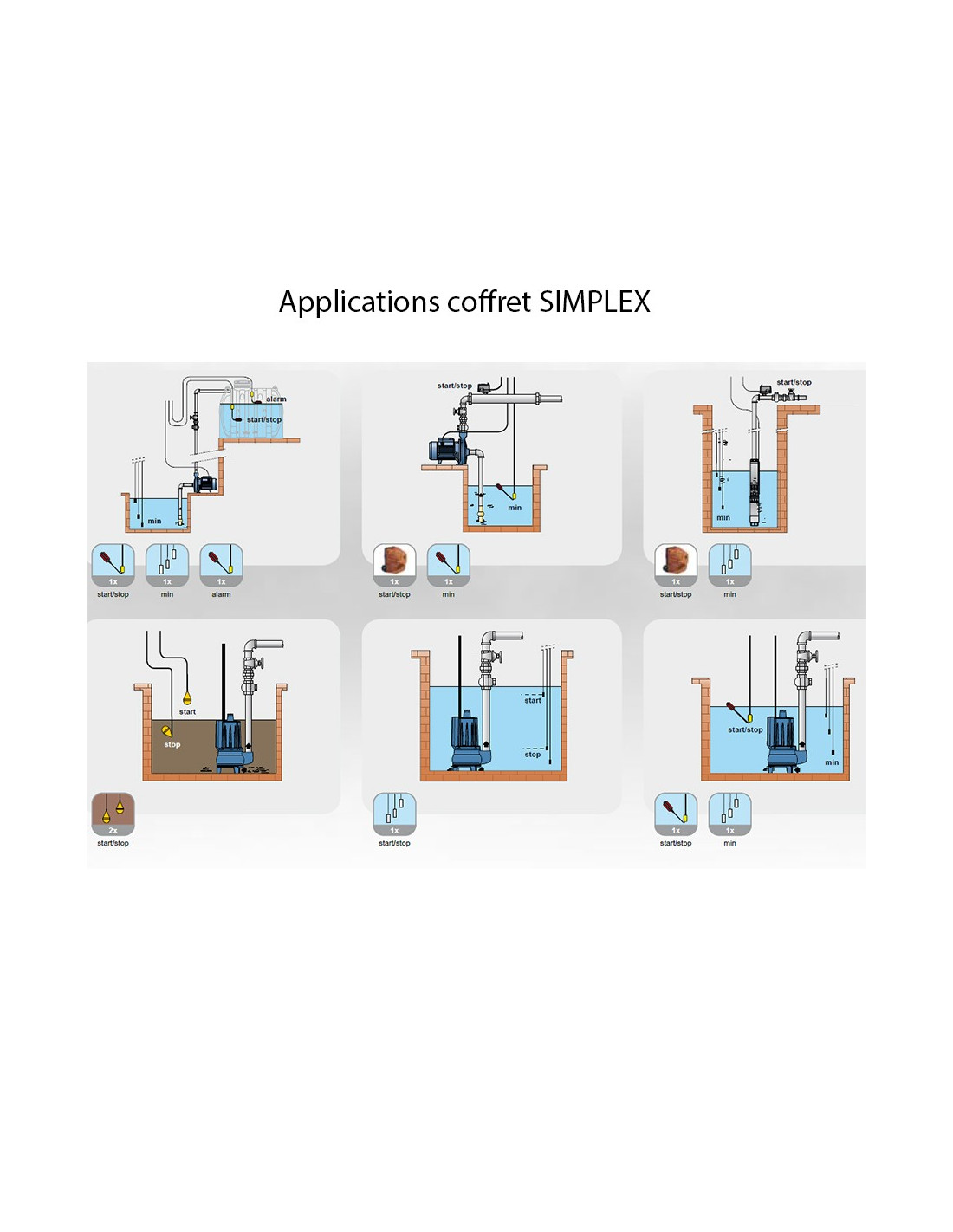

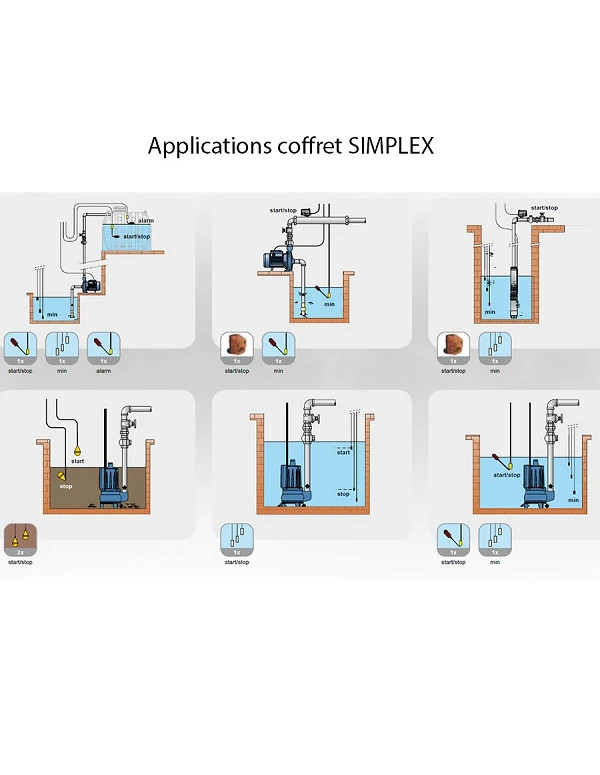

Electronic direct-on-line starter panel for a single-phase pump of 0.37 to 2.20 Kw, applications for surface pumps, lift pumps, submersible pumps. Operation with floats, pressure switch or level probes.

Description

Specifications:
- ABS enclosure, protection rating IP54.
- Main isolator on the front panel.
- 230 volt +/- 10 % single-phase supply (50/60 Hz).
- Safety transformer for auxiliaries (230/24V).
- Start control input.
- Input for dry-run protection (lack of water), by float switch or dry contact.
- Motor power contactor + thermal relay against overloads.
- AUTOMATIC - 0 - MANUAL selector.
- Indicator lights: voltage present, pump running, thermal.
- Prepared to take a capacitor.
- Push button for resetting the protections.
- 5A alarm output at 230V.
- Ambient temperature from -5°C to + 40°C.

ModelSIMPLEX-UP-M/3
Reference 008177
Power supply (V) 230 - single-phase
Min. power (Kw) 0.37
Max power (Kw) 2.20
Adjustable current (A) 2 to 16
Dimensions (mm) 340 x 240 x 170
Weight 1.8



Product Details
