Specifications:

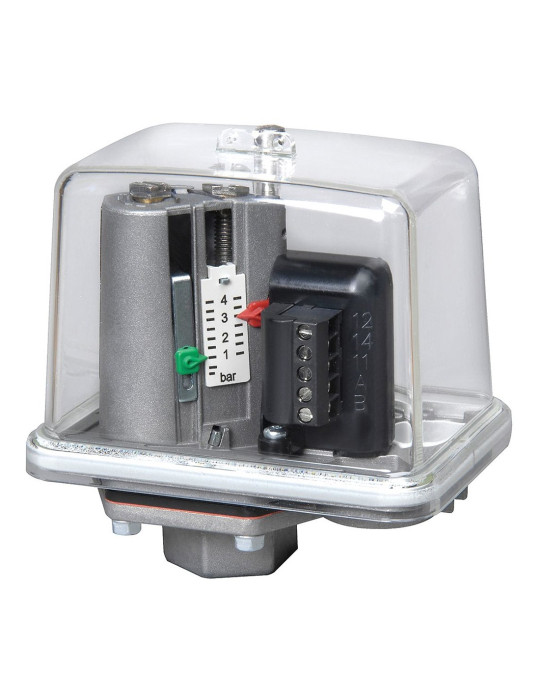

- Aluminium support, polycarbonate cover, 316 Ti stainless steel diaphragm, internal mechanism and fitting in 303 stainless steel.
- Compatible with common fluids.
- Electrical protection IP65.
- Fluid PS 12 bar.
- Fluid temperature 0 to 200°C.
- Ambient temperature -20°C to +70°C.
| Model | MDR-F |
|---|---|
| Reference | 001040 |
| DN | G 1/4" Female |
| Adjustment range (bar) |
1 to 12 |
| Inlet pressure (bar) |
0.5 to 11.2 |
| Differential pressure (bar) | 0.5 to 0.8 |
| Outlet pressure (bar) | 1 to 12 |
| Resistive breaking capacity | 10A at 240V ac |
| Inductive breaking capacity |
4 A to 240V |
| Maximum direct power (Kw) | 0.55 |
| Maximum water temperature (°C) | 40 |
| Max. ambient temperature (°C) | 50 |
| Hydraulic connection | 1/4" F |
| Weight (Kg) | 0.52 |
